Arduino UNO Bluetooth Controlled Robotic Car with L298N Motor Driver

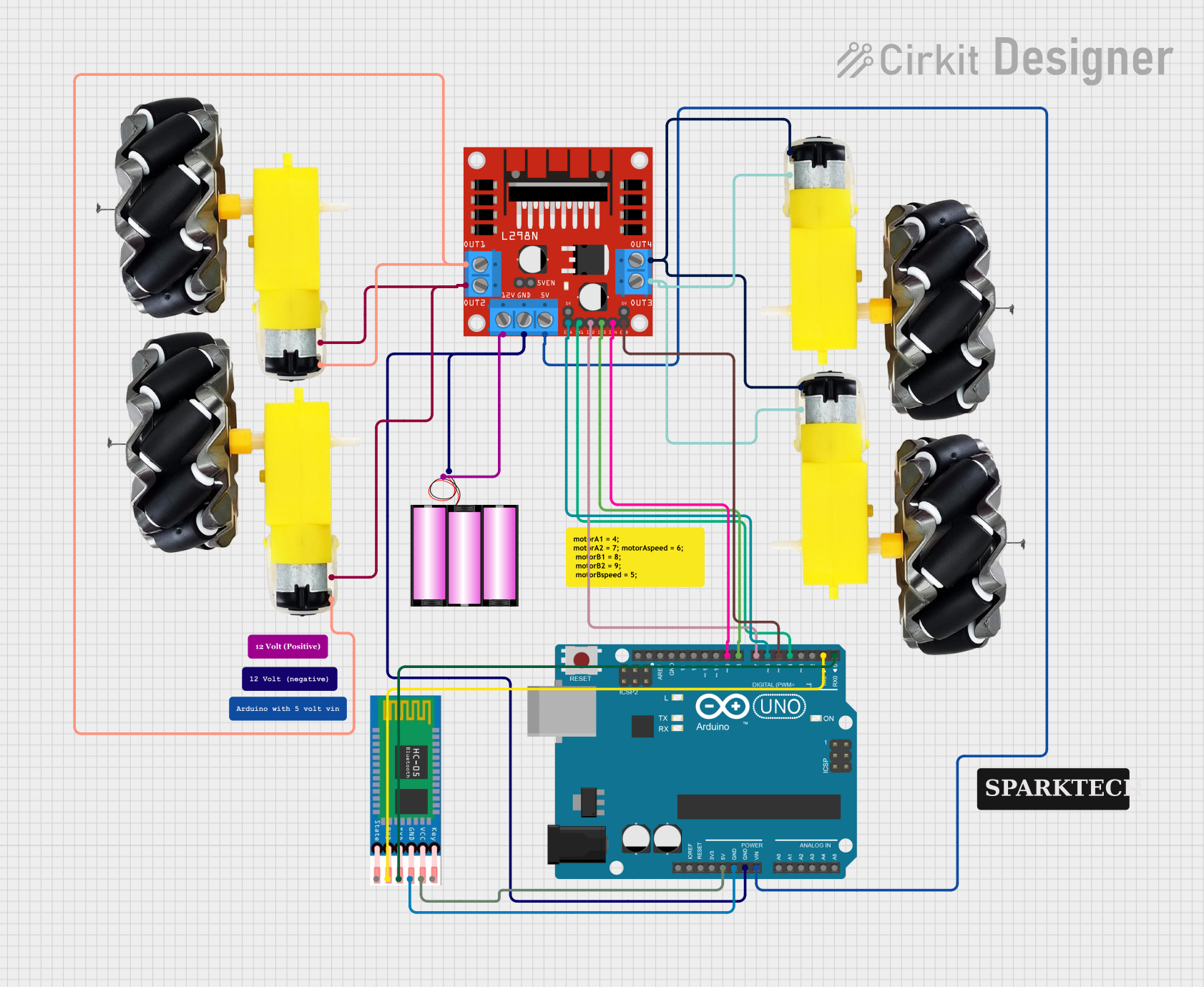

Image of Arduino UNO Bluetooth Controlled Robotic Car with L298N Motor Driver

Circuit Documentation

Summary

This document provides a detailed overview of a Bluetooth-controlled car circuit. The circuit consists of an Arduino UNO microcontroller, an L298N DC motor driver, four DC motors with wheels, an HC-05 Bluetooth module, and a 12V battery. The Arduino UNO is programmed to control the motors based on commands received via Bluetooth.

Component List

  1. L298N DC Motor Driver

    • Description: A dual H-Bridge motor driver that allows control of the speed and direction of two DC motors.
    • Pins: OUT1, OUT2, 12V, GND, 5V, OUT3, OUT4, 5V-ENA-JMP-I, 5V-ENA-JMP-O, +5V-J1, +5V-J2, ENA, IN1, IN2, IN3, IN4, ENB
  2. Arduino UNO

    • Description: A microcontroller board based on the ATmega328P, used for controlling the circuit.
    • Pins: UNUSED, IOREF, Reset, 3.3V, 5V, GND, Vin, A0, A1, A2, A3, A4, A5, SCL, SDA, AREF, D13, D12, D11, D10, D9, D8, D7, D6, D5, D4, D3, D2, D1, D0
  3. HC-05 Bluetooth Module

    • Description: A Bluetooth module used for wireless communication with the Arduino UNO.
    • Pins: EN, VCC, GND, TXD, RXD, STATE
  4. 12V Battery

    • Description: A power source for the circuit.
    • Pins: +, -
  5. Motor and Wheels (4 units)

    • Description: DC motors with attached wheels, used for driving the car.
    • Pins: vcc, GND

Wiring Details

L298N DC Motor Driver

  • OUT1: Connected to the vcc pin of two motors.
  • OUT2: Connected to the GND pin of two motors.
  • 12V: Connected to the + pin of the 12V battery.
  • GND: Connected to the GND pin of the Arduino UNO and the - pin of the 12V battery.
  • 5V: Connected to the Vin pin of the Arduino UNO.
  • OUT3: Connected to the GND pin of two motors.
  • OUT4: Connected to the vcc pin of two motors.
  • ENA: Connected to the D6 pin of the Arduino UNO.
  • IN1: Connected to the D4 pin of the Arduino UNO.
  • IN2: Connected to the D7 pin of the Arduino UNO.
  • IN3: Connected to the D8 pin of the Arduino UNO.
  • IN4: Connected to the D9 pin of the Arduino UNO.
  • ENB: Connected to the D5 pin of the Arduino UNO.

Arduino UNO

  • GND: Connected to the GND pin of the L298N DC motor driver and the - pin of the 12V battery.
  • Vin: Connected to the 5V pin of the L298N DC motor driver.
  • D6: Connected to the ENA pin of the L298N DC motor driver.
  • D4: Connected to the IN1 pin of the L298N DC motor driver.
  • D7: Connected to the IN2 pin of the L298N DC motor driver.
  • D8: Connected to the IN3 pin of the L298N DC motor driver.
  • D9: Connected to the IN4 pin of the L298N DC motor driver.
  • D5: Connected to the ENB pin of the L298N DC motor driver.
  • 5V: Connected to the VCC pin of the HC-05 Bluetooth module.
  • GND: Connected to the GND pin of the HC-05 Bluetooth module.
  • D1: Connected to the RXD pin of the HC-05 Bluetooth module.
  • D0: Connected to the TXD pin of the HC-05 Bluetooth module.

HC-05 Bluetooth Module

  • VCC: Connected to the 5V pin of the Arduino UNO.
  • GND: Connected to the GND pin of the Arduino UNO.
  • RXD: Connected to the D1 pin of the Arduino UNO.
  • TXD: Connected to the D0 pin of the Arduino UNO.

12V Battery

  • +: Connected to the 12V pin of the L298N DC motor driver.
  • -: Connected to the GND pin of the Arduino UNO and the GND pin of the L298N DC motor driver.

Motor and Wheels

  • Motor 1 (vcc): Connected to the OUT1 pin of the L298N DC motor driver.
  • Motor 1 (GND): Connected to the OUT2 pin of the L298N DC motor driver.
  • Motor 2 (vcc): Connected to the OUT1 pin of the L298N DC motor driver.
  • Motor 2 (GND): Connected to the OUT2 pin of the L298N DC motor driver.
  • Motor 3 (vcc): Connected to the OUT4 pin of the L298N DC motor driver.
  • Motor 3 (GND): Connected to the OUT3 pin of the L298N DC motor driver.
  • Motor 4 (vcc): Connected to the OUT4 pin of the L298N DC motor driver.
  • Motor 4 (GND): Connected to the OUT3 pin of the L298N DC motor driver.

Documented Code

// Arduino Bluetooth Controlled Car
// Before uploading the code you have to install the necessary library
// Note - Disconnect the Bluetooth Module before hitting the upload button otherwise you'll get a compilation error message.
// AFMotor Library https://learn.adafruit.com/adafruit-motor-shield/library-install
// After downloading the library open Arduino IDE >> go to sketch >> Include Library >> ADD. ZIP Library >> Select the downloaded
// ZIP File >> Open it >> Done
// Now You Can Upload the Code without any problem but make sure the bt module isn't connected with Arduino while uploading code

#include <AFMotor.h>

// initial motors pin
AF_DCMotor motor1(1, MOTOR12_1KHZ);
AF_DCMotor motor2(2, MOTOR12_1KHZ);
AF_DCMotor motor3(3, MOTOR34_1KHZ);
AF_DCMotor motor4(4, MOTOR34_1KHZ);

char command;

void setup()
{
  Serial.begin(9600);  // Set the baud rate to your Bluetooth module.
}

void loop(){
  if(Serial.available() > 0){
    command = Serial.read();
    Stop(); // initialize with motors stopped
    // Change pin mode only if new command is different from previous.
    // Serial.println(command);
    switch(command){
    case 'F':
      forward();
      break;
    case 'B':
       back();
      break;
    case 'L':
      left();
      break;
    case 'R':
      right();
      break;
    }
  }
}

void forward()
{
  motor1.setSpeed(255); // Define maximum velocity
  motor1.run(FORWARD); // rotate the motor clockwise
  motor2.setSpeed(255); // Define maximum velocity
  motor2.run(FORWARD); // rotate the motor clockwise
  motor3.setSpeed(255); // Define maximum velocity
  motor3.run(FORWARD); // rotate the motor clockwise
  motor4.setSpeed(255); // Define maximum velocity
  motor4.run(FORWARD); // rotate the motor clockwise
}

void back()
{
  motor1.setSpeed(255); // Define maximum velocity
  motor1.run(BACKWARD); // rotate the motor anti-clockwise
  motor2.setSpeed(255); // Define maximum velocity
  motor2.run(BACKWARD); // rotate the motor anti-clockwise
  motor3.setSpeed(255); // Define maximum velocity
  motor3.run(BACKWARD); // rotate the motor anti-clockwise
  motor4.setSpeed(255); // Define maximum velocity
  motor4.run(BACKWARD); // rotate the motor anti-clockwise
}

void left()
{
  motor1.setSpeed(255); // Define maximum velocity
  motor1.run(BACKWARD); // rotate the motor anti-clockwise
  motor2.setSpeed(255); // Define maximum velocity
  motor2.run(BACKWARD); // rotate the motor anti-clockwise
  motor3.setSpeed(255); // Define maximum velocity
  motor3.run(FORWARD);  // rotate the motor clockwise
  motor4.setSpeed(255); // Define maximum velocity
  motor4.run(FORWARD);  // rotate the motor clockwise
}

void right()
{
  motor1.setSpeed(255); // Define maximum velocity
  motor1.run(FORWARD); // rotate the motor clockwise
  motor2.setSpeed(255); // Define maximum velocity
  motor
