Arduino UNO Flex Sensor Array with Analog Readout

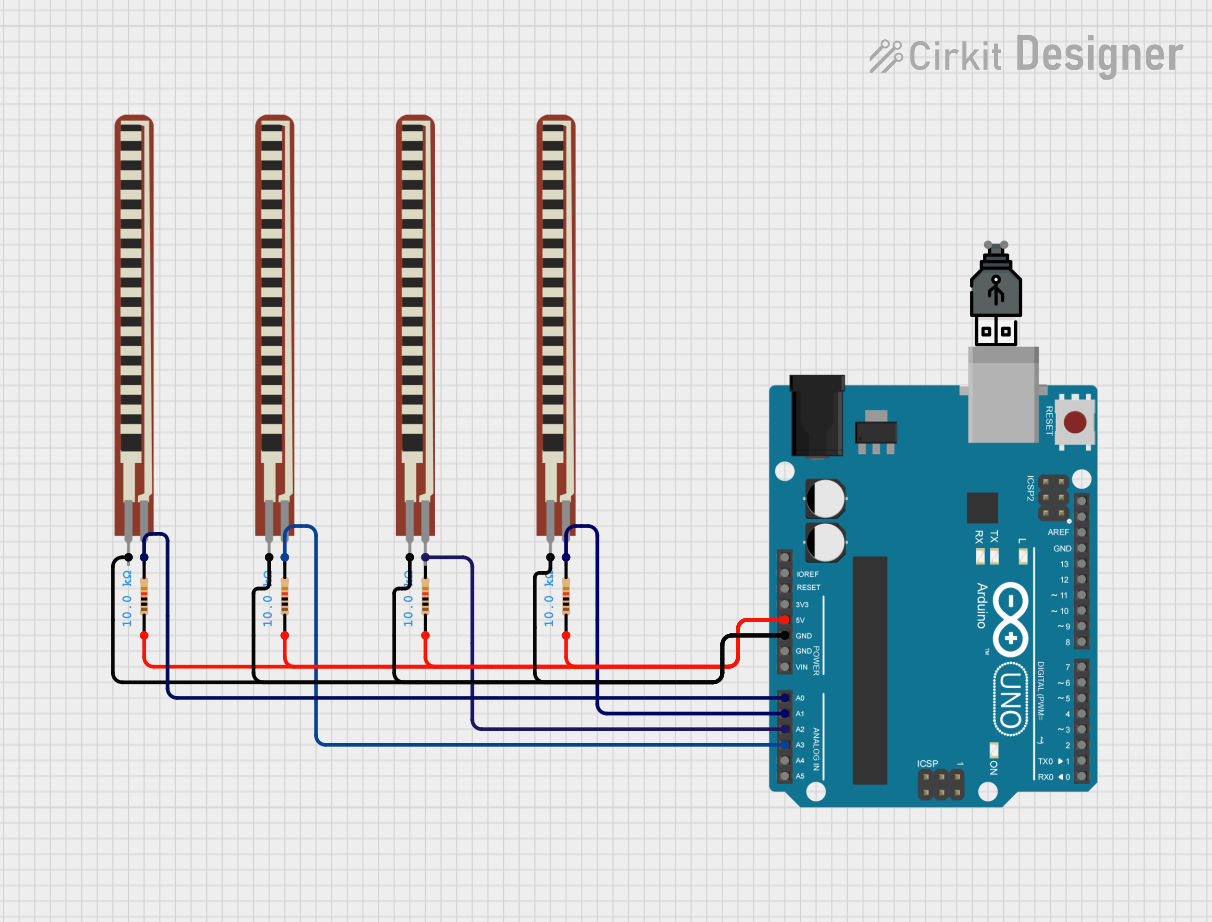

Image of Arduino UNO Flex Sensor Array with Analog Readout

Circuit Documentation

Summary

This document provides a detailed overview of a circuit that includes multiple resistors, flex resistors, an Arduino UNO microcontroller, and a USB power source. The circuit is designed to interface with the Arduino UNO, utilizing its analog input pins to read values from the resistors and flex resistors.

Component List

2.2 inch Basic Flex Resistor

  • Description: A flexible resistor that changes resistance when bent.
  • Pins: Pin 1, Pin 2

Resistor

  • Description: A standard resistor with a resistance of 10k Ohms.
  • Pins: pin1, pin2
  • Properties:
    • Resistance: 10k Ohms

Arduino UNO

  • Description: A microcontroller board based on the ATmega328P.
  • Pins: UNUSED, IOREF, Reset, 3.3V, 5V, GND, Vin, A0, A1, A2, A3, A4, A5, SCL, SDA, AREF, D13, D12, D11, D10, D9, D8, D7, D6, D5, D4, D3, D2, D1, D0

USB Power

  • Description: Provides power to the circuit.
  • Pins: +, -

Wiring Details

2.2 inch Basic Flex Resistor

  • Pin 2 is connected to:
    • Pin 2 of another 2.2 inch Basic Flex Resistor
    • Pin 2 of another 2.2 inch Basic Flex Resistor
    • Pin 2 of another 2.2 inch Basic Flex Resistor
    • GND of Arduino UNO
    • Pin 2 of another 2.2 inch Basic Flex Resistor

Resistor

  • pin1 is connected to:

    • pin1 of another Resistor
    • pin1 of another Resistor
    • pin1 of another Resistor
    • pin1 of another Resistor
    • 5V of Arduino UNO
  • pin2 is connected to:

    • A0 of Arduino UNO
    • A1 of Arduino UNO
    • A2 of Arduino UNO
    • A3 of Arduino UNO

Arduino UNO

  • 5V is connected to:

    • pin1 of a Resistor
    • pin1 of another Resistor
    • pin1 of another Resistor
    • pin1 of another Resistor
  • GND is connected to:

    • Pin 2 of a 2.2 inch Basic Flex Resistor
    • Pin 2 of another 2.2 inch Basic Flex Resistor
    • Pin 2 of another 2.2 inch Basic Flex Resistor
    • Pin 2 of another 2.2 inch Basic Flex Resistor
    • Pin 2 of another 2.2 inch Basic Flex Resistor
  • A0 is connected to:

    • pin2 of a Resistor
  • A1 is connected to:

    • pin2 of another Resistor
  • A2 is connected to:

    • pin2 of another Resistor
  • A3 is connected to:

    • pin2 of another Resistor

Documented Code

Arduino UNO Code (sketch.ino)

void setup() {
  // put your setup code here, to run once:

}

void loop() {
  // put your main code here, to run repeatedly:

}

Additional Documentation (documentation.txt)


This document provides a comprehensive overview of the circuit, including a summary, component list, wiring details, and documented code.
