Circuit Documentation

Summary of the Circuit

The circuit in question appears to be designed for an interactive device that utilizes an Arduino Uno R3 as the main controller. The circuit includes an IR LED Night Vision Ring for illumination in low-light conditions, a Tilt Pan mechanism for movement, and a Huskylens for image recognition or tracking. The Arduino Uno R3 is responsible for controlling the Tilt Pan mechanism and communicating with the Huskylens via I2C communication (using SDA and SCL lines). The power distribution is managed by the Arduino, which supplies 5V to the other components.

Component List

Arduino Uno R3

• Microcontroller board based on the ATmega328P
• It has 14 digital input/output pins, 6 analog inputs, a USB connection, a power jack, an ICSP header, and a reset button.

IR LED Night Vision Ring

• A ring of infrared LEDs designed to provide illumination for cameras in low-light conditions.

Tilt Pan

• A mechanical assembly that can tilt and pan an attached device, such as a camera or sensor.
• It typically includes a servo motor for movement and control.

Huskylens

• An AI camera module that supports features like face recognition, object tracking, and more.
• It communicates with the main controller via I2C.

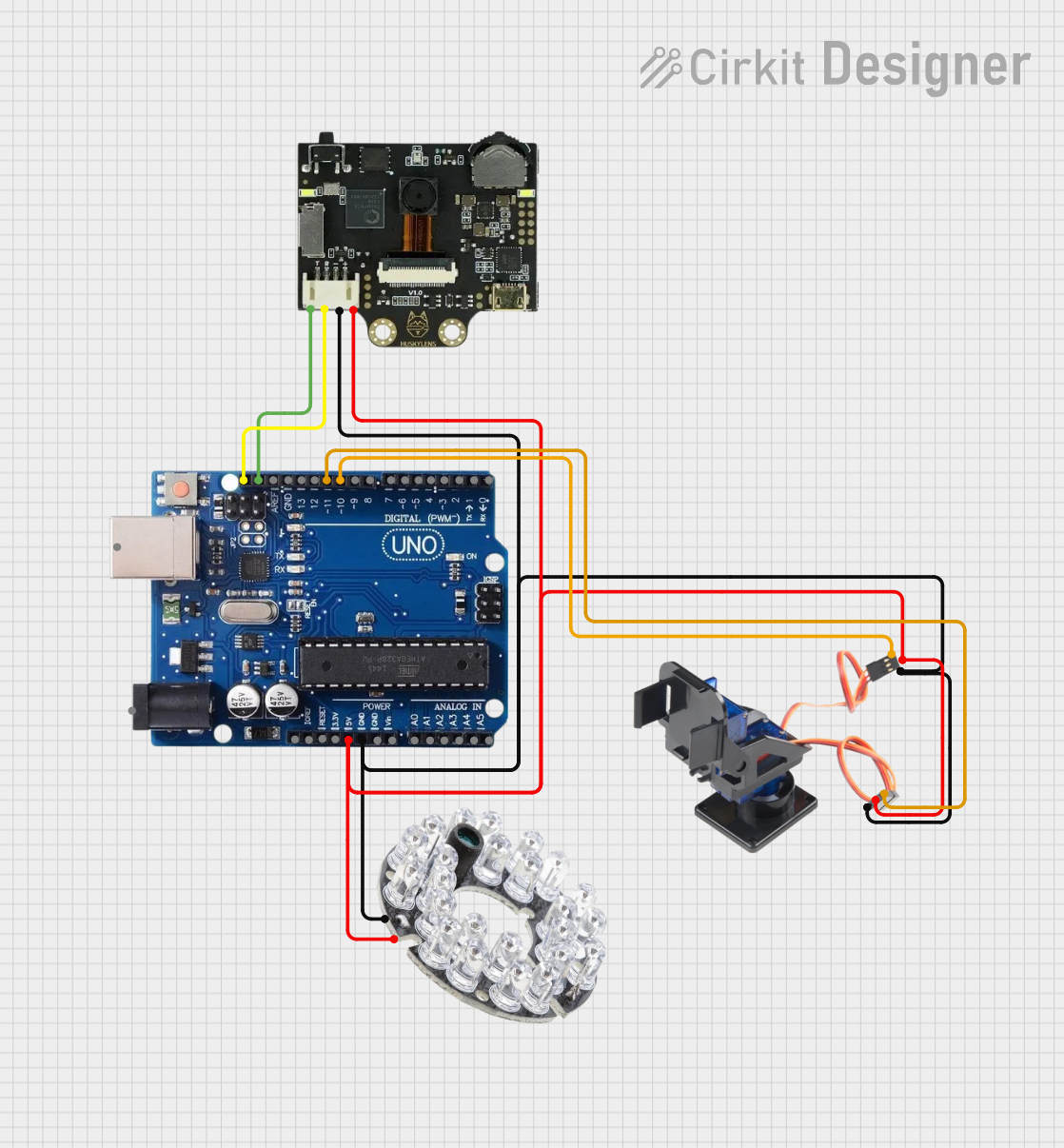

Wiring Details

Arduino Uno R3

• 5V connected to Huskylens VCC, IR LED Night Vision Ring VCC, and Tilt Pan VCC.
• GND connected to Huskylens GND, IR LED Night Vision Ring GND, and Tilt Pan GND.
• SCL connected to Huskylens SCL.
• SDA connected to Huskylens SDA.
• Digital Pin 11 connected to Tilt Pan OUT.
• Digital Pin 10 connected to Tilt Pan SIGNAL.

IR LED Night Vision Ring

• VCC connected to Arduino Uno R3 5V.
• GND connected to Arduino Uno R3 GND.

Tilt Pan

• VCC connected to Arduino Uno R3 5V.
• GND connected to Arduino Uno R3 GND.
• OUT connected to Arduino Uno R3 Digital Pin 11.
• SIGNAL connected to Arduino Uno R3 Digital Pin 10.

Huskylens

• VCC connected to Arduino Uno R3 5V.
• GND connected to Arduino Uno R3 GND.
• SCL connected to Arduino Uno R3 SCL.
• SDA connected to Arduino Uno R3 SDA.

Documented Code

No code was provided for the microcontrollers in the circuit. For the Arduino Uno R3 to interact with the Huskylens and control the Tilt Pan mechanism, embedded code would be required. This code would initialize the I2C communication, control the GPIO pins connected to the Tilt Pan, and handle the logic for any interactions between the components.

Since no code is available, it is recommended to develop a software program that includes the following:

• Initialization of I2C communication for Huskylens.
• Configuration of digital pins for Tilt Pan control.
• Main loop to handle the logic for device interaction.

Please provide the code for the Arduino Uno R3 to complete the documentation.
