Circuit Documentation

Summary of the Circuit

The circuit consists of an Arduino UNO microcontroller board interfaced with an infrared (IR) sensor. The Arduino UNO is responsible for controlling the IR sensor and processing its output. The IR sensor is used to detect infrared light, which is often employed in proximity sensing, line-following robots, and object detection systems.

Component List

Arduino UNO

• Description: A microcontroller board based on the ATmega328P.
• Pins Used:
  • 5V: Provides power to the IR sensor.
  • GND: Common ground for the circuit.
  • D2: Receives the output signal from the IR sensor.

IR Sensor

• Description: A sensor that detects infrared light.
• Pins Used:
  • out: Outputs the detection signal to the Arduino.
  • gnd: Ground connection.
  • vcc: Power supply input.

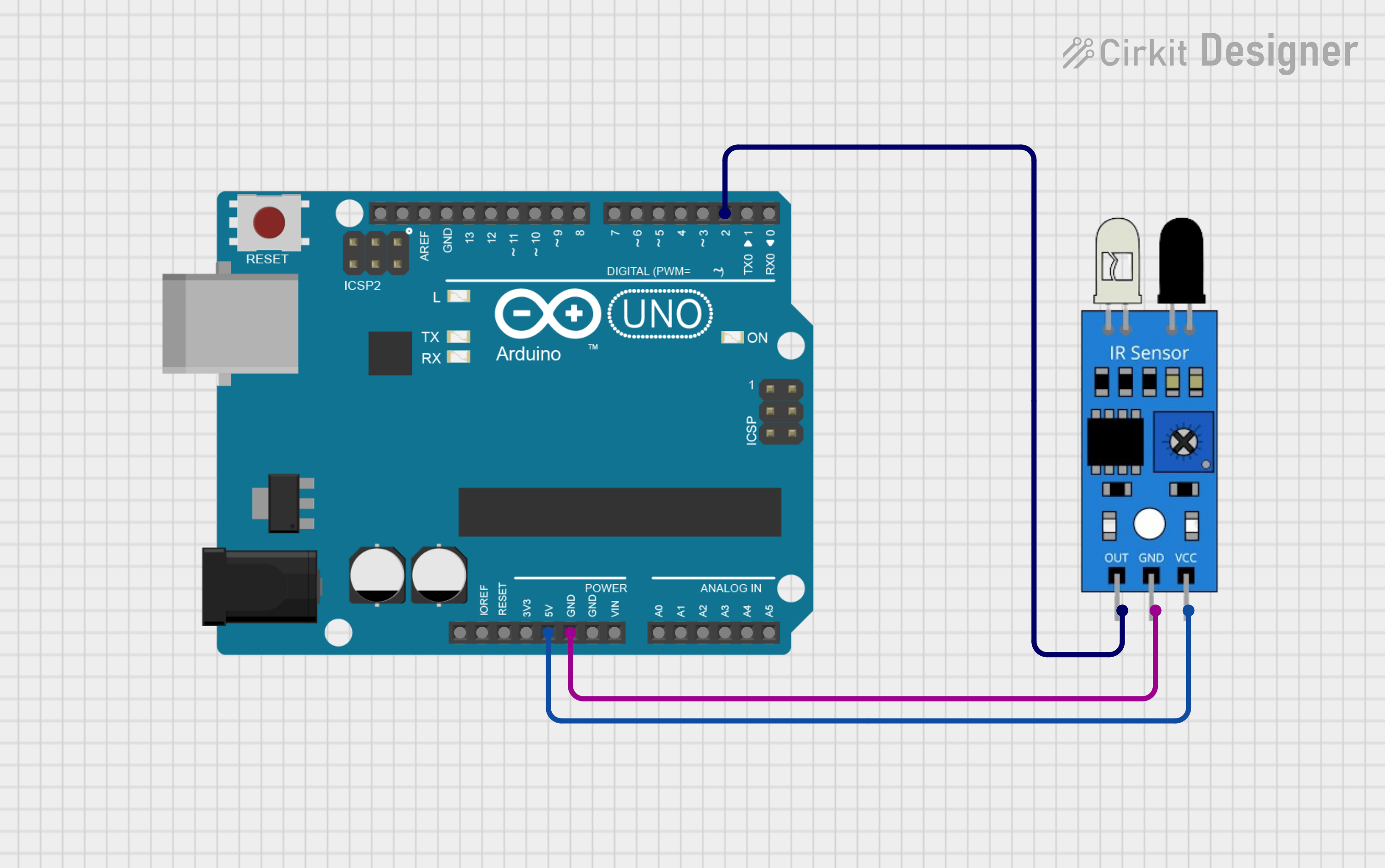

Wiring Details

Arduino UNO

• 5V connected to IR sensor vcc.
• GND connected to IR sensor gnd.
• D2 connected to IR sensor out.

IR Sensor

• vcc connected to Arduino UNO 5V.
• gnd connected to Arduino UNO GND.
• out connected to Arduino UNO D2.

Documented Code

Arduino UNO Code (sketch.ino)

void setup() {
  // put your setup code here, to run once:

}

void loop() {
  // put your main code here, to run repeatedly:

}

Additional Notes

• The provided code is a template and does not contain any specific logic for interacting with the IR sensor. The user is expected to fill in the setup and loop functions with the necessary code to initialize the sensor and read its output.
• The documentation.txt file is empty and does not provide additional information about the code.

This documentation provides an overview of the circuit's components, their wiring, and the initial code template for the Arduino UNO. Further development of the code is required to achieve the desired functionality with the IR sensor.
