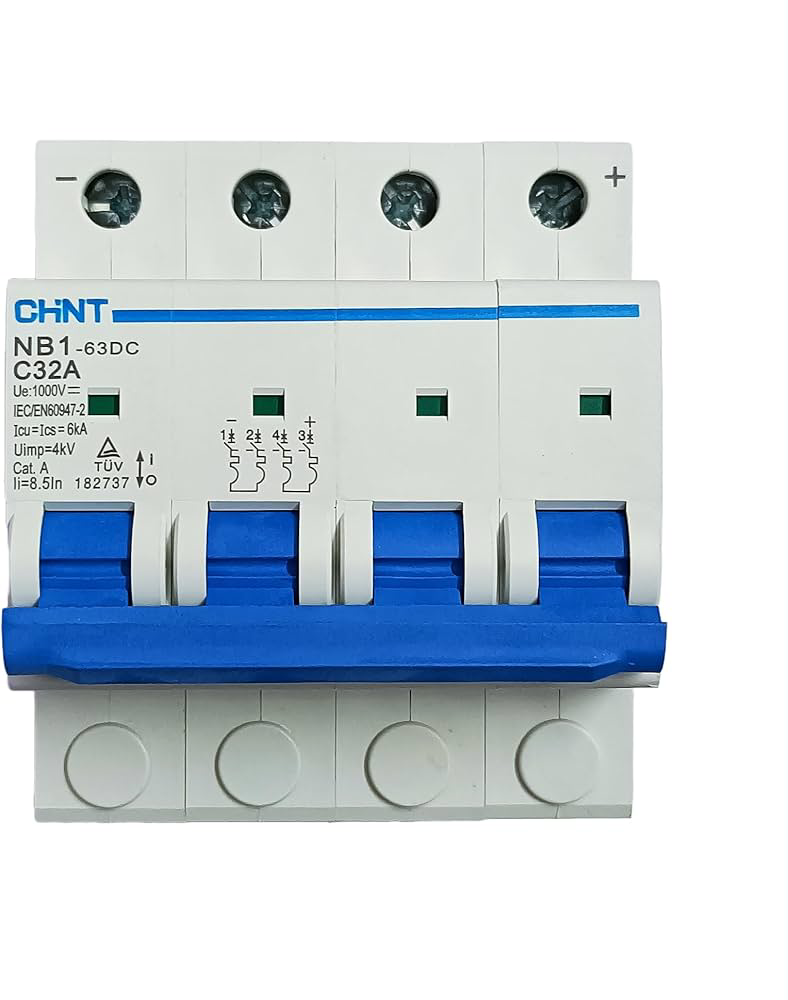

Image of 4p Chint Breaker 32A
Cirkit Designer LogoDesign with 4p Chint Breaker 32A in Cirkit Designer

Introduction

The 4P Chint Breaker 32A is a 4-pole circuit breaker designed to protect electrical circuits from overloads and short circuits. Manufactured by Chint, this breaker is rated for a maximum current of 32 Amperes, making it suitable for a wide range of residential, commercial, and industrial applications. Its robust design ensures reliable operation and safety in electrical systems.

Explore Projects Built with 4p Chint Breaker 32A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Solar-Powered Environmental Monitoring System with Automatic Transfer Switch and ESP32 Control
Image of Fire exit: A project utilizing 4p Chint Breaker 32A in a practical application
This circuit appears to be a solar power management system with dual power input capability, integrating a solar panel with a charge controller to manage charging a 12V battery and providing power through an inverter for AC loads. It includes safety features such as circuit breakers and fuses, and a dual power automatic transfer switch to alternate between solar and grid power. The system also incorporates an ESP32 microcontroller interfaced with various sensors (MQ-2, SHT113, DHT22), a buzzer for alerts, an OLED display for status output, and a relay module to control a 12V solenoid lock, with power regulation provided by a 5V adapter and resistors for LED current limiting.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Backup System with Inverter and ATS
Image of Solar Circuit 100W: A project utilizing 4p Chint Breaker 32A in a practical application
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel, with a solar charge controller managing the charging process. The stored energy is then converted to AC power via a power inverter, which can be used to power an air conditioner through an automatic transfer switch (ATS) and AC circuit breakers for safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Backup System with Automatic Transfer Switch
Image of Copy of Copy of Solar Circuit 380W: A project utilizing 4p Chint Breaker 32A in a practical application
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel, managed by a solar charge controller. The system includes fuses for protection, a power inverter to convert DC to AC, and an automatic transfer switch (ATS) to manage power distribution to an AC circuit breaker and a 5000BTU AC unit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Air Conditioner with Battery Backup and ATS
Image of Copy of Solar Circuit 380W: A project utilizing 4p Chint Breaker 32A in a practical application
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel and a solar charge controller. The stored energy is then used to power an inverter, which supplies AC power to an air conditioner through an automatic transfer switch (ATS) and circuit breakers for safety.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 4p Chint Breaker 32A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Fire exit: A project utilizing 4p Chint Breaker 32A in a practical application
Solar-Powered Environmental Monitoring System with Automatic Transfer Switch and ESP32 Control
This circuit appears to be a solar power management system with dual power input capability, integrating a solar panel with a charge controller to manage charging a 12V battery and providing power through an inverter for AC loads. It includes safety features such as circuit breakers and fuses, and a dual power automatic transfer switch to alternate between solar and grid power. The system also incorporates an ESP32 microcontroller interfaced with various sensors (MQ-2, SHT113, DHT22), a buzzer for alerts, an OLED display for status output, and a relay module to control a 12V solenoid lock, with power regulation provided by a 5V adapter and resistors for LED current limiting.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Solar Circuit 100W: A project utilizing 4p Chint Breaker 32A in a practical application
Solar-Powered Battery Backup System with Inverter and ATS
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel, with a solar charge controller managing the charging process. The stored energy is then converted to AC power via a power inverter, which can be used to power an air conditioner through an automatic transfer switch (ATS) and AC circuit breakers for safety.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Copy of Solar Circuit 380W: A project utilizing 4p Chint Breaker 32A in a practical application
Solar-Powered Battery Backup System with Automatic Transfer Switch
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel, managed by a solar charge controller. The system includes fuses for protection, a power inverter to convert DC to AC, and an automatic transfer switch (ATS) to manage power distribution to an AC circuit breaker and a 5000BTU AC unit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Solar Circuit 380W: A project utilizing 4p Chint Breaker 32A in a practical application
Solar-Powered Air Conditioner with Battery Backup and ATS
This circuit is a solar power system designed to charge a 12V battery using a 380W solar panel and a solar charge controller. The stored energy is then used to power an inverter, which supplies AC power to an air conditioner through an automatic transfer switch (ATS) and circuit breakers for safety.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Protection of three-phase electrical systems in industrial environments.
  • Overload and short circuit protection in residential and commercial buildings.
  • Use in distribution boards for managing and isolating electrical circuits.
  • Suitable for motor protection and other high-current applications.

Technical Specifications

Below are the key technical details of the 4P Chint Breaker 32A:

Parameter Specification
Manufacturer Chint
Part ID Breaker
Number of Poles 4
Rated Current 32 Amperes
Rated Voltage 400V AC (three-phase)
Breaking Capacity 10 kA
Frequency 50/60 Hz
Mounting Type DIN Rail
Operating Temperature -5°C to +40°C
Standards Compliance IEC 60898, IEC 60947-2

Pin Configuration and Descriptions

The 4P Chint Breaker 32A has four input and four output terminals, corresponding to the four poles. Below is the terminal configuration:

Terminal Description
L1 (Input) Phase 1 input (live wire)
L2 (Input) Phase 2 input (live wire)
L3 (Input) Phase 3 input (live wire)
N (Input) Neutral input
L1 (Output) Phase 1 output (connected to load)
L2 (Output) Phase 2 output (connected to load)
L3 (Output) Phase 3 output (connected to load)
N (Output) Neutral output (connected to load)

Usage Instructions

How to Use the Component in a Circuit

  1. Mounting the Breaker: Securely mount the breaker onto a DIN rail in the distribution board.
  2. Wiring:
    • Connect the input terminals (L1, L2, L3, N) to the power supply.
    • Connect the output terminals (L1, L2, L3, N) to the load or downstream circuit.
    • Ensure all connections are tight and secure to prevent arcing or overheating.
  3. Operation:
    • Switch the breaker to the "ON" position to allow current flow.
    • In case of an overload or short circuit, the breaker will trip to the "OFF" position, cutting off the current.
  4. Resetting:
    • After resolving the fault, switch the breaker back to the "ON" position to restore power.

Important Considerations and Best Practices

  • Ensure the breaker is rated appropriately for the circuit's current and voltage requirements.
  • Do not exceed the rated current of 32A to avoid damage to the breaker or connected equipment.
  • Regularly inspect the breaker for signs of wear, damage, or loose connections.
  • Always turn off the main power supply before installing or servicing the breaker.
  • Use appropriate tools and follow local electrical codes and standards during installation.

Troubleshooting and FAQs

Common Issues and Solutions

Issue Possible Cause Solution
Breaker trips frequently Overload or short circuit in the circuit Check the load and wiring for faults.
Breaker does not reset after tripping Persistent fault in the circuit Inspect and resolve the fault before resetting.
Overheating of terminals Loose connections or excessive current Tighten connections and verify current rating.
Breaker does not trip during a fault Faulty breaker or incorrect installation Replace the breaker or verify installation.

FAQs

  1. Can this breaker be used for single-phase circuits?

    • Yes, but only one pole will be used for the live wire, and the neutral terminal can be connected as needed.

  2. What is the breaking capacity of this breaker?

    • The breaker has a breaking capacity of 10 kA, suitable for most residential and commercial applications.

  3. Can this breaker be used outdoors?

    • No, this breaker is designed for indoor use. Use an appropriate enclosure for outdoor installations.

  4. How do I know if the breaker is faulty?

    • If the breaker does not trip during a fault or fails to reset, it may be faulty and should be replaced.

By following this documentation, users can safely and effectively install and operate the 4P Chint Breaker 32A in their electrical systems.
