How to Use ESP32-C3: Examples, Pinouts, and Specs

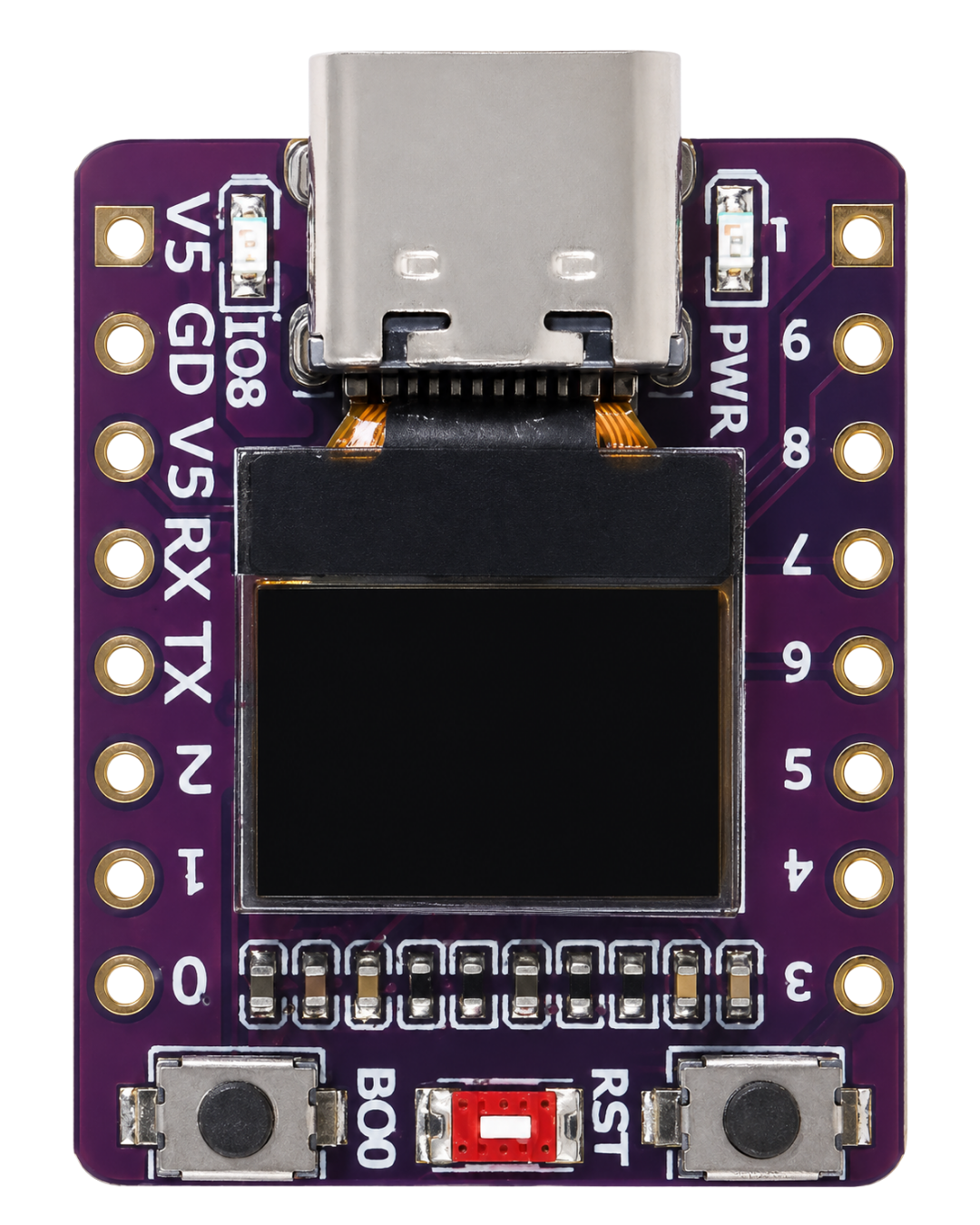

The ESP32-C3 SUPER MINI, manufactured by ESP, is a low-power system-on-a-chip (SoC) designed for Internet of Things (IoT) applications. It integrates Wi-Fi and Bluetooth Low Energy (BLE) capabilities, making it a versatile choice for smart devices, sensor networks, and other connected applications. The ESP32-C3 features a RISC-V single-core processor, multiple GPIOs, and support for various communication protocols, ensuring high performance and flexibility in a compact form factor.

• Smart home devices (e.g., smart plugs, lights, and thermostats)
• Wearable devices
• Industrial IoT systems
• Wireless sensor networks
• Remote monitoring and control systems
• Low-power Bluetooth and Wi-Fi applications

The ESP32-C3 SUPER MINI has 22 GPIO pins, each with multiple functions. Below is a summary of the pin configuration:

For a complete pinout, refer to the official ESP32-C3 datasheet.

1. Power Supply: Connect the ESP32-C3 to a stable 3.3V power source. Ensure the power supply can provide sufficient current (at least 500 mA).
2. Boot Mode: To flash firmware, pull GPIO0 low during reset. For normal operation, ensure GPIO0 is pulled high.
3. Communication Interfaces: Use UART, SPI, or I2C for communication with other devices. Configure the pins according to your application.
4. Programming: The ESP32-C3 can be programmed using the Arduino IDE, ESP-IDF, or other compatible environments.

The ESP32-C3 can communicate with an Arduino UNO via UART. Below is an example of how to send data from the Arduino to the ESP32-C3.

// Example: Sending data from Arduino UNO to ESP32-C3 via UART
void setup() {
  Serial.begin(9600); // Initialize UART communication at 9600 baud
}

void loop() {
  Serial.println("Hello from Arduino!"); // Send data to ESP32-C3
  delay(1000); // Wait for 1 second
}

// Example: Receiving data on ESP32-C3 from Arduino UNO via UART
void setup() {
  Serial.begin(9600); // Initialize UART communication at 9600 baud
  Serial.println("ESP32-C3 Ready!"); // Notify that ESP32-C3 is ready
}

void loop() {
  if (Serial.available() > 0) { // Check if data is available
    String data = Serial.readString(); // Read the incoming data
    Serial.print("Received: "); // Print received data
    Serial.println(data);
  }
}

• Voltage Levels: Ensure all connected devices operate at 3.3V logic levels. Use level shifters if necessary.
• Antenna Placement: For optimal Wi-Fi and Bluetooth performance, avoid placing the ESP32-C3 near metal objects or inside enclosures that block RF signals.
• Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.

1. ESP32-C3 Not Responding

   • Cause: Incorrect power supply or wiring.
   • Solution: Verify the power supply voltage (3.3V) and check all connections.

2. Cannot Flash Firmware

   • Cause: GPIO0 not pulled low during reset.
   • Solution: Ensure GPIO0 is connected to GND when flashing firmware.

3. Wi-Fi Connection Fails

   • Cause: Incorrect SSID or password.
   • Solution: Double-check the Wi-Fi credentials in your code.

4. Bluetooth Not Discoverable

   • Cause: Bluetooth not initialized properly.
   • Solution: Verify that the BLE initialization code is correct and the device is in pairing mode.

Q: Can the ESP32-C3 operate on 5V?
A: No, the ESP32-C3 operates on 3.3V. Use a voltage regulator or level shifter for 5V systems.

Q: How do I reset the ESP32-C3?
A: Press the reset button on the development board or toggle the EN pin.

Q: Can I use the ESP32-C3 for both Wi-Fi and Bluetooth simultaneously?
A: Yes, the ESP32-C3 supports concurrent Wi-Fi and BLE operation.

Q: What is the maximum range of the ESP32-C3's Wi-Fi?
A: The range depends on the environment but typically extends up to 100 meters in open spaces.

This concludes the documentation for the ESP32-C3 SUPER MINI. For further details, refer to the official ESP datasheet and user manual.
