How to Use 7-SEGMENT-4DIGIT-YOUNGSUN: Examples, Pinouts, and Specs

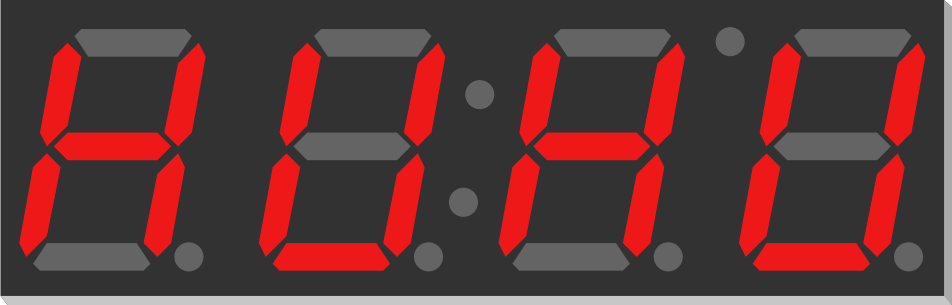

The 7-SEGMENT-4DIGIT-YOUNGSUN is a 4-digit 7-segment display module designed for displaying numerical information. Each digit consists of seven individual LED segments arranged in a figure-eight pattern, allowing the display of numbers from 0 to 9 and some alphabetic characters. This module is widely used in applications such as digital clocks, counters, timers, and other electronic devices requiring numerical output.

The module is compact, easy to interface with microcontrollers, and supports multiplexing to control all four digits efficiently. Its versatility and simplicity make it a popular choice for both hobbyists and professionals.

• Display Type: 4-digit 7-segment LED display
• Operating Voltage: 3.3V to 5V (depending on the driving circuit)
• Current Consumption: ~20mA per segment (typical)
• Digit Height: 0.56 inches (14.2mm)
• Common Type: Common Cathode or Common Anode (verify specific model)
• Interface: Multiplexed control (shared segment pins)
• Operating Temperature: -40°C to +85°C
• Dimensions: 50mm x 19mm x 8mm (approx.)

The 7-SEGMENT-4DIGIT-YOUNGSUN module typically has 12 pins. Below is the pin configuration for a common cathode version:

Note: For a common anode version, the digit pins (DIG1–DIG4) are connected to the anode, and the segment pins (A–G, DP) are connected to the cathode.

1. Power Supply: Connect the module to a 3.3V or 5V power source, depending on the driving circuit and microcontroller.
2. Resistors: Use current-limiting resistors (typically 220Ω to 1kΩ) in series with the segment pins to prevent overcurrent damage to the LEDs.
3. Multiplexing: Control the display using multiplexing. Activate one digit at a time by enabling its common cathode (or anode) pin while sending the appropriate segment data.
4. Microcontroller Interface: Use a microcontroller (e.g., Arduino UNO) to control the segments and digits. Libraries like SevSeg can simplify the process.

• Connect segment pins (A–G, DP) to digital output pins of the microcontroller through resistors.
• Connect digit pins (DIG1–DIG4) to additional digital output pins.
• Use the microcontroller to send signals to the segment and digit pins to display numbers.

Below is an example code snippet to display "1234" on the 7-SEGMENT-4DIGIT-YOUNGSUN module using an Arduino UNO:

// Define segment pins (A-G, DP)
const int segmentPins[] = {2, 3, 4, 5, 6, 7, 8, 9}; // A-G, DP
// Define digit pins (DIG1-DIG4)
const int digitPins[] = {10, 11, 12, 13}; // DIG1-DIG4

// Segment data for digits 0-9 (common cathode)
const byte digitData[] = {
  0b00111111, // 0
  0b00000110, // 1
  0b01011011, // 2
  0b01001111, // 3
  0b01100110, // 4
  0b01101101, // 5
  0b01111101, // 6
  0b00000111, // 7
  0b01111111, // 8
  0b01101111  // 9
};

void setup() {
  // Set segment pins as output
  for (int i = 0; i < 8; i++) {
    pinMode(segmentPins[i], OUTPUT);
  }
  // Set digit pins as output
  for (int i = 0; i < 4; i++) {
    pinMode(digitPins[i], OUTPUT);
  }
}

void loop() {
  // Display "1234" on the 7-segment display
  int numbers[] = {1, 2, 3, 4}; // Digits to display
  for (int digit = 0; digit < 4; digit++) {
    // Turn off all digits
    for (int i = 0; i < 4; i++) {
      digitalWrite(digitPins[i], HIGH); // HIGH for common cathode
    }
    // Set segment data for the current digit
    byte segments = digitData[numbers[digit]];
    for (int i = 0; i < 8; i++) {
      digitalWrite(segmentPins[i], (segments >> i) & 0x01);
    }
    // Turn on the current digit
    digitalWrite(digitPins[digit], LOW); // LOW for common cathode
    delay(5); // Small delay for multiplexing
  }
}

Note: Adjust the pin numbers and resistor values as per your specific setup.

• Resistor Selection: Always use appropriate current-limiting resistors to protect the LEDs.
• Brightness Control: Use PWM (Pulse Width Modulation) on the segment pins to adjust brightness.
• Refresh Rate: Ensure a refresh rate of at least 50Hz to avoid flickering.
• Power Supply: Verify that your power supply can handle the total current draw of the display.

1. Segments Not Lighting Up:

   • Check the connections and ensure all pins are properly wired.
   • Verify that the current-limiting resistors are not too high.
   • Ensure the microcontroller is supplying the correct signals.

2. Flickering Display:

   • Increase the refresh rate in your code.
   • Ensure stable power supply and proper grounding.

3. Incorrect Digits Displayed:

   • Verify the segment data in your code.
   • Check for loose or incorrect wiring.

4. Overheating:

   • Ensure resistors are used to limit current.
   • Avoid driving multiple segments without proper multiplexing.

Q: Can I use this module with a 3.3V microcontroller?
A: Yes, but ensure the forward voltage of the LEDs is compatible, and adjust resistor values accordingly.

Q: How do I display letters on the module?
A: Letters can be displayed by sending the appropriate segment data. For example, "A" is 0b01110111 for a common cathode display.

Q: Can I control this module with fewer pins?
A: Yes, you can use shift registers (e.g., 74HC595) or dedicated driver ICs (e.g., MAX7219) to reduce the number of required pins.

By following this documentation, you can effectively integrate the 7-SEGMENT-4DIGIT-YOUNGSUN module into your projects for clear and reliable numerical displays.
