How to Use SDCard Reader 7-Pin: Examples, Pinouts, and Specs

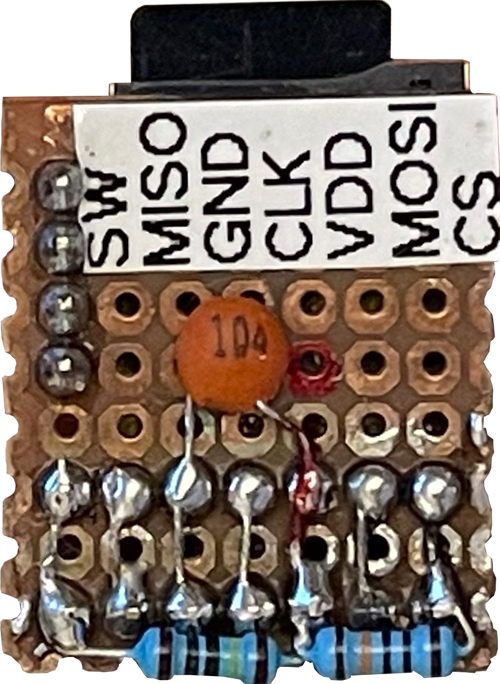

The SDCard Reader 7-Pin (Manufacturer Part ID: Micro SDCard Reader 7-Pin) is a compact and efficient device designed for reading and writing data to microSD cards. Manufactured by Handmade, this component features a 7-pin interface for seamless integration into electronic circuits. It is widely used in projects requiring data storage, such as data logging, multimedia applications, and portable devices.

• Data logging in IoT devices
• Storing multimedia files (e.g., images, audio, video)
• Bootable storage for embedded systems
• Portable data transfer and storage solutions
• Arduino and microcontroller-based projects

Below are the key technical details of the SDCard Reader 7-Pin:

The SDCard Reader 7-Pin interface is designed for SPI communication. Below is the pinout:

1. Power Supply: Connect the VCC pin to a 3.3V power source and the GND pin to the ground.
2. SPI Connections: Connect the CS, SCK, MOSI, and MISO pins to the corresponding SPI pins on your microcontroller.
3. Card Detection (Optional): Use the CD pin to detect if a microSD card is inserted. This pin can be connected to a digital input pin on the microcontroller.
4. Insert microSD Card: Ensure the microSD card is properly formatted (e.g., FAT32) before use.
5. Load Libraries: If using an Arduino, include the SD library for easy interfacing.

• Voltage Levels: Ensure all signal lines operate at 3.3V logic levels. Use a level shifter if your microcontroller operates at 5V.
• Card Formatting: Format the microSD card to FAT16 or FAT32 for compatibility.
• Pull-Up Resistors: Some SD card readers may require pull-up resistors on the SPI lines for stable communication.
• Avoid Hot-Swapping: Do not insert or remove the microSD card while the circuit is powered to prevent damage.

Below is an example of how to interface the SDCard Reader 7-Pin with an Arduino UNO:

#include <SPI.h>
#include <SD.h>

// Define the Chip Select (CS) pin for the SD card reader
const int chipSelect = 10;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial) {
    ; // Wait for the serial port to connect (for native USB boards)
  }

  Serial.println("Initializing SD card...");

  // Initialize the SD card
  if (!SD.begin(chipSelect)) {
    Serial.println("Card failed, or not present");
    // Halt the program if the SD card initialization fails
    while (1);
  }
  Serial.println("Card initialized successfully!");
}

void loop() {
  // Example: Write data to a file on the SD card
  File dataFile = SD.open("example.txt", FILE_WRITE);

  if (dataFile) {
    dataFile.println("Hello, SD card!");
    dataFile.close(); // Always close the file after writing
    Serial.println("Data written to example.txt");
  } else {
    Serial.println("Error opening example.txt");
  }

  delay(1000); // Wait for 1 second before repeating
}

1. SD Card Not Detected

   • Cause: Incorrect wiring or faulty SD card.
   • Solution: Double-check the connections, ensure the SD card is properly inserted, and verify the card is formatted correctly.

2. File Write/Read Errors

   • Cause: Insufficient power supply or corrupted SD card.
   • Solution: Ensure a stable 3.3V power supply and try reformatting the SD card.

3. Arduino Fails to Initialize SD Card

   • Cause: Incorrect CS pin configuration or missing library.
   • Solution: Verify the chipSelect pin in the code matches your wiring. Ensure the SD library is installed in your Arduino IDE.

• Use a multimeter to check voltage levels on the VCC and GND pins.
• Test the SD card on a computer to confirm it is functional.
• Use serial debugging to identify where the code fails during initialization.

By following this documentation, you can effectively integrate the SDCard Reader 7-Pin into your projects for reliable data storage and retrieval.
