How to Use ESP 32: Examples, Pinouts, and Specs

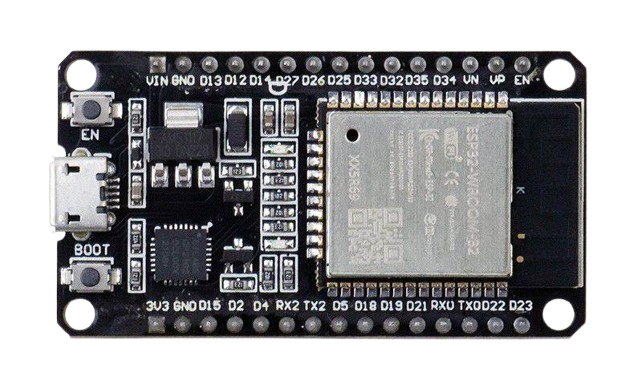

Image of ESP 32
Cirkit Designer LogoDesign with ESP 32 in Cirkit Designer

Introduction

The ESP32, manufactured by NodeMCU (Part ID: ESP32), is a powerful microcontroller designed for IoT (Internet of Things) applications. It features integrated Wi-Fi and Bluetooth capabilities, making it an excellent choice for projects requiring wireless communication. With its dual-core processor, low power consumption, and extensive GPIO options, the ESP32 is widely used in smart home devices, wearable electronics, and industrial automation.

Explore Projects Built with ESP 32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based RF Communication System with 433 MHz Modules
Image of 433 mhz: A project utilizing ESP 32 in a practical application
This circuit comprises an ESP32 microcontroller connected to a 433 MHz RF transmitter and receiver pair. The ESP32 is programmed to receive and decode RF signals through the receiver module, as well as send RF signals via the transmitter module. Additionally, the ESP32 can communicate with a Bluetooth device to exchange commands and data, and it uses an LED for status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Motion Detection
Image of pro: A project utilizing ESP 32 in a practical application
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Ethernet Weather Station with DHT22 Sensor and Relay Control
Image of ESP32 Single and Double AC with Temp 30Pin Micro and USBC: A project utilizing ESP 32 in a practical application
This circuit features an ESP32 microcontroller interfaced with a W5500 Ethernet module, a DHT22 temperature and humidity sensor, and a 2-channel relay module. The ESP32 is configured to communicate with the W5500 module via SPI for network connectivity, read sensor data from the DHT22, and control devices through the relay module. The purpose of this circuit is likely for environmental monitoring and control over a network.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing ESP 32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP 32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of 433 mhz: A project utilizing ESP 32 in a practical application
ESP32-Based RF Communication System with 433 MHz Modules
This circuit comprises an ESP32 microcontroller connected to a 433 MHz RF transmitter and receiver pair. The ESP32 is programmed to receive and decode RF signals through the receiver module, as well as send RF signals via the transmitter module. Additionally, the ESP32 can communicate with a Bluetooth device to exchange commands and data, and it uses an LED for status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pro: A project utilizing ESP 32 in a practical application
ESP32-Based Environmental Monitoring System with Motion Detection
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32 Single and Double AC with Temp 30Pin Micro and USBC: A project utilizing ESP 32 in a practical application
ESP32-Based Smart Ethernet Weather Station with DHT22 Sensor and Relay Control
This circuit features an ESP32 microcontroller interfaced with a W5500 Ethernet module, a DHT22 temperature and humidity sensor, and a 2-channel relay module. The ESP32 is configured to communicate with the W5500 module via SPI for network connectivity, read sensor data from the DHT22, and control devices through the relay module. The purpose of this circuit is likely for environmental monitoring and control over a network.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MVP_design: A project utilizing ESP 32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and drones
  • Industrial monitoring and control systems
  • Prototyping and educational projects

Technical Specifications

The ESP32 is a versatile microcontroller with the following key technical details:

Parameter Value
Manufacturer NodeMCU
Part ID ESP32
Processor Dual-core Xtensa® 32-bit LX6
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 + BLE
Operating Voltage 3.3V
Input Voltage Range 3.0V to 3.6V
GPIO Pins 34 (multipurpose, including ADC, DAC, PWM, I2C, SPI, UART, etc.)
ADC Resolution 12-bit
DAC Resolution 8-bit
Power Consumption Ultra-low power (supports deep sleep mode with <10 µA current draw)
Operating Temperature -40°C to +125°C

Pin Configuration and Descriptions

The ESP32 has a variety of pins for different functionalities. Below is a summary of the pin configuration:

Pin Function Description
GPIO0 Input/Output, Boot Mode Select Used for boot mode selection during startup.
GPIO1 UART TX Transmit pin for UART communication.
GPIO3 UART RX Receive pin for UART communication.
GPIO12 Input/Output, ADC, Touch General-purpose I/O, supports ADC and capacitive touch sensing.
GPIO13 Input/Output, ADC, Touch General-purpose I/O, supports ADC and capacitive touch sensing.
GPIO15 Input/Output, PWM, ADC General-purpose I/O, supports PWM and ADC.
GPIO16 Input/Output General-purpose I/O.
GPIO17 Input/Output General-purpose I/O.
EN Enable Enables the chip when pulled high.
3V3 Power Supply Provides 3.3V power output.
GND Ground Ground connection.

Note: Not all GPIO pins are available for general use, as some are reserved for internal functions. Refer to the ESP32 datasheet for detailed pin mappings.

Usage Instructions

How to Use the ESP32 in a Circuit

  1. Powering the ESP32:

    • Connect the 3.3V pin to a regulated 3.3V power source.
    • Ensure the GND pin is connected to the ground of your circuit.
    • Avoid exceeding the input voltage range (3.0V to 3.6V) to prevent damage.
  2. Programming the ESP32:

    • Use a USB-to-serial adapter or a development board with a built-in USB interface.
    • Install the ESP32 board package in the Arduino IDE or use the ESP-IDF (Espressif IoT Development Framework) for advanced development.
  3. Connecting Peripherals:

    • Use the GPIO pins for interfacing with sensors, actuators, and other devices.
    • Configure the pins in your code for the desired functionality (e.g., input, output, ADC, PWM).
  4. Wireless Communication:

    • Use the built-in Wi-Fi and Bluetooth modules for wireless connectivity.
    • Configure the network settings in your code to connect to a Wi-Fi network or pair with Bluetooth devices.

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
  • Power Supply: Ensure a stable power supply to avoid unexpected resets or malfunctions.
  • Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
  • Pin Usage: Avoid using reserved pins or pins with special functions unless necessary.

Example Code for Arduino UNO Integration

Below is an example of how to connect the ESP32 to a Wi-Fi network using the Arduino IDE:

#include <WiFi.h> // Include the WiFi library for ESP32

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000);          // Wait for a second to stabilize

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start Wi-Fi connection

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Note: Replace Your_SSID and Your_Password with your actual Wi-Fi credentials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Connecting to Wi-Fi:

    • Solution: Double-check the SSID and password in your code. Ensure the Wi-Fi network is active and within range.
  2. Frequent Resets or Instability:

    • Solution: Verify the power supply is stable and capable of providing sufficient current (at least 500mA). Use capacitors to filter noise.
  3. GPIO Pins Not Working as Expected:

    • Solution: Check if the pin is reserved for internal functions. Refer to the ESP32 datasheet for details.
  4. Upload Errors in Arduino IDE:

    • Solution: Ensure the correct board and COM port are selected in the Arduino IDE. Press and hold the "BOOT" button on the ESP32 during the upload process if needed.

FAQs

  • Q: Can the ESP32 operate on 5V?
    A: No, the ESP32 operates at 3.3V. Use a voltage regulator or level shifter for 5V systems.

  • Q: How do I reset the ESP32?
    A: Press the "EN" (Enable) button on the development board to reset the ESP32.

  • Q: Can I use the ESP32 for Bluetooth audio streaming?
    A: Yes, the ESP32 supports Bluetooth audio streaming using the A2DP profile.

  • Q: What is the maximum range of the ESP32's Wi-Fi?
    A: The range depends on environmental factors but typically extends up to 100 meters in open spaces.

By following this documentation, you can effectively utilize the ESP32 in your projects and troubleshoot common issues with ease.
