How to Use BME 680: Examples, Pinouts, and Specs

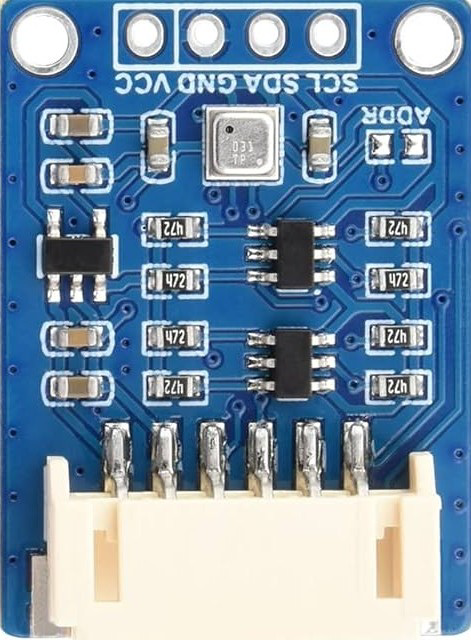

The BME 680 is a digital environmental sensor manufactured by Bosch. It is capable of measuring temperature, humidity, barometric pressure, and gas (air quality) levels. This versatile sensor is designed for applications requiring high accuracy and compact size, making it ideal for environmental monitoring, smart home devices, wearables, and IoT (Internet of Things) applications.

The BME 680 combines multiple sensing capabilities into a single package, reducing the need for multiple sensors in a design. Its gas sensor can detect volatile organic compounds (VOCs), enabling air quality monitoring. The sensor communicates via I2C or SPI interfaces, making it compatible with a wide range of microcontrollers and development platforms.

Below are the key technical details of the BME 680 sensor:

The BME 680 is typically available in a 8-pin LGA package. Below is the pinout description:

1. Power Supply: Connect the VDD pin to a 3.3V or 1.8V power source, and connect GND to the ground of your circuit.
2. Interface Selection:
   • For I2C communication, connect the SCL and SDA pins to the corresponding I2C pins on your microcontroller. Use a pull-up resistor (typically 4.7 kΩ) on both lines.
   • For SPI communication, connect the SPICLK, SDI, SDO, and CS pins to the corresponding SPI pins on your microcontroller.
3. I2C Address: The I2C address of the BME 680 is determined by the SDO pin:
   • Connect SDO to GND for address 0x76.
   • Connect SDO to VDD for address 0x77.
4. Initialization: Use a library or write custom code to initialize the sensor and configure its settings (e.g., oversampling rates, filter settings).
5. Data Reading: Read temperature, humidity, pressure, and gas resistance data from the sensor registers.

• Power Supply: Ensure a stable power supply to avoid measurement inaccuracies.
• Calibration: The BME 680 is factory-calibrated, but additional calibration may be required for specific applications.
• Gas Sensor Warm-Up: The gas sensor requires a warm-up period (typically a few minutes) for accurate readings.
• I2C Pull-Up Resistors: Use appropriate pull-up resistors on the I2C lines to ensure reliable communication.
• Avoid Contaminants: Protect the sensor from dust, water, and other contaminants to maintain accuracy.

Below is an example of how to use the BME 680 with an Arduino UNO via I2C:

#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BME680.h>

// Create an instance of the BME680 sensor
Adafruit_BME680 bme;

// Setup function
void setup() {
  Serial.begin(9600); // Initialize serial communication
  while (!Serial);    // Wait for serial monitor to open (optional)

  // Initialize the BME680 sensor
  if (!bme.begin(0x76)) { // Use 0x77 if SDO is connected to VDD
    Serial.println("Could not find a valid BME680 sensor, check wiring!");
    while (1);
  }

  // Configure sensor settings
  bme.setTemperatureOversampling(BME680_OS_8X);
  bme.setHumidityOversampling(BME680_OS_2X);
  bme.setPressureOversampling(BME680_OS_4X);
  bme.setIIRFilterSize(BME680_FILTER_SIZE_3);
  bme.setGasHeater(320, 150); // 320°C for 150 ms
}

// Loop function
void loop() {
  if (!bme.performReading()) {
    Serial.println("Failed to perform reading!");
    return;
  }

  // Print sensor readings
  Serial.print("Temperature = ");
  Serial.print(bme.temperature);
  Serial.println(" °C");

  Serial.print("Humidity = ");
  Serial.print(bme.humidity);
  Serial.println(" %");

  Serial.print("Pressure = ");
  Serial.print(bme.pressure / 100.0);
  Serial.println(" hPa");

  Serial.print("Gas Resistance = ");
  Serial.print(bme.gas_resistance / 1000.0);
  Serial.println(" kOhms");

  delay(2000); // Wait 2 seconds before the next reading
}

1. Sensor Not Detected:

   • Ensure the correct I2C address (0x76 or 0x77) is used in the code.
   • Check the wiring, especially the SCL and SDA connections.
   • Verify that pull-up resistors are present on the I2C lines.

2. Inaccurate Readings:

   • Ensure the sensor is not exposed to contaminants or extreme environmental conditions.
   • Allow the gas sensor to warm up for a few minutes before taking readings.
   • Verify that the power supply voltage is within the specified range.

3. Communication Errors:

   • Check the I2C or SPI connections for loose or incorrect wiring.
   • Ensure the microcontroller's I2C or SPI clock speed is within the sensor's supported range.

Q: Can the BME 680 measure CO2 levels?
A: No, the BME 680 does not directly measure CO2. It measures VOCs, which can be used as an indicator of air quality.

Q: How long does the gas sensor take to stabilize?
A: The gas sensor typically requires a warm-up period of 5 to 10 minutes for accurate readings.

Q: Can the BME 680 operate at 5V?
A: No, the BME 680 operates at a maximum voltage of 3.6V. Use a level shifter if interfacing with a 5V system.
