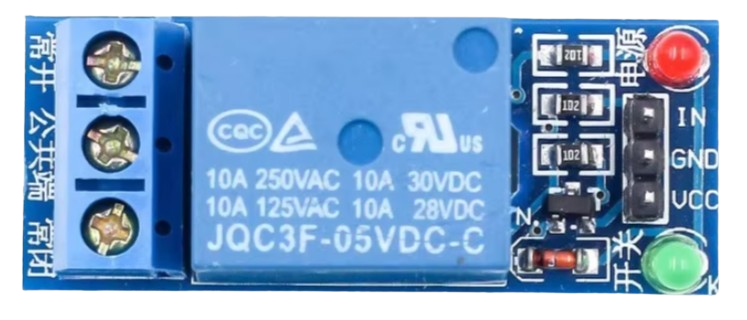

Image of 1 Channel Relay 5V
Cirkit Designer LogoDesign with 1 Channel Relay 5V in Cirkit Designer

Introduction

The 1 Channel Relay 5V module is an electromechanical switch that allows a low voltage control signal (e.g., from a microcontroller) to control a higher voltage circuit. This module is widely used in automation, home appliances, and industrial control systems to safely interface low-power control circuits with high-power devices such as lights, motors, and heaters.

Explore Projects Built with 1 Channel Relay 5V

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered 4-Channel Relay Control with LED Indicators
Image of RELLAY BOARD TEST: A project utilizing 1 Channel Relay 5V in a practical application
This circuit consists of a 5V battery powering a 4-channel relay module, which controls four LEDs (red, yellow, green, and blue) through individual resistors. Each relay channel is activated by a corresponding SPST toggle switch, allowing manual control of the LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Wi-Fi Controlled Relay Switch
Image of nyoba: A project utilizing 1 Channel Relay 5V in a practical application
This circuit uses an ESP32 microcontroller to control a 1-channel 5V relay. The ESP32 toggles the relay on and off every 5 seconds, allowing it to control an external device connected to the relay's output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered IR Sensor Controlled Relay Module
Image of New: A project utilizing 1 Channel Relay 5V in a practical application
This circuit uses an IR sensor to control a 1 Channel 5V Relay Module, which is powered by a 9V battery. The IR sensor detects an object and sends a signal to the relay module to switch its state, enabling or disabling the connected load.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Wi-Fi Controlled Dual Relay Module
Image of esp: A project utilizing 1 Channel Relay 5V in a practical application
This circuit features an ESP32 microcontroller connected to a two-channel 5V relay module. The ESP32 controls the relay channels via its GPIO pins D23 and D22, allowing it to switch external devices on and off. The relay module is powered by the 3.3V and GND pins of the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 1 Channel Relay 5V

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of RELLAY BOARD TEST: A project utilizing 1 Channel Relay 5V in a practical application
Battery-Powered 4-Channel Relay Control with LED Indicators
This circuit consists of a 5V battery powering a 4-channel relay module, which controls four LEDs (red, yellow, green, and blue) through individual resistors. Each relay channel is activated by a corresponding SPST toggle switch, allowing manual control of the LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of nyoba: A project utilizing 1 Channel Relay 5V in a practical application
ESP32 Wi-Fi Controlled Relay Switch
This circuit uses an ESP32 microcontroller to control a 1-channel 5V relay. The ESP32 toggles the relay on and off every 5 seconds, allowing it to control an external device connected to the relay's output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of New: A project utilizing 1 Channel Relay 5V in a practical application
Battery-Powered IR Sensor Controlled Relay Module
This circuit uses an IR sensor to control a 1 Channel 5V Relay Module, which is powered by a 9V battery. The IR sensor detects an object and sends a signal to the relay module to switch its state, enabling or disabling the connected load.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of esp: A project utilizing 1 Channel Relay 5V in a practical application
ESP32 Wi-Fi Controlled Dual Relay Module
This circuit features an ESP32 microcontroller connected to a two-channel 5V relay module. The ESP32 controls the relay channels via its GPIO pins D23 and D22, allowing it to switch external devices on and off. The relay module is powered by the 3.3V and GND pins of the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Home automation systems (e.g., controlling lights or fans)
  • Industrial equipment control
  • Motor and pump control
  • Smart IoT devices
  • Safety and isolation circuits

Technical Specifications

Key Technical Details

Parameter Value
Operating Voltage 5V DC
Trigger Voltage 3.3V to 5V DC
Maximum Load Voltage 250V AC / 30V DC
Maximum Load Current 10A
Relay Type SPDT (Single Pole Double Throw)
Isolation Method Optocoupler
Dimensions ~50mm x 26mm x 18mm
Weight ~15g

Pin Configuration and Descriptions

Pin Name Description
VCC Connect to the 5V power supply (positive terminal).
GND Connect to the ground (negative terminal) of the power supply.
IN Control signal input. A HIGH signal activates the relay, and a LOW signal
deactivates it.
COM Common terminal of the relay switch.
NO Normally Open terminal. Connect the load here if you want it to be
powered only when the relay is activated.
NC Normally Closed terminal. Connect the load here if you want it to be
powered when the relay is deactivated.

Usage Instructions

How to Use the 1 Channel Relay 5V in a Circuit

  1. Power the Relay Module: Connect the VCC pin to a 5V DC power source and the GND pin to the ground.
  2. Control Signal: Connect the IN pin to the control signal source, such as a microcontroller (e.g., Arduino UNO).
  3. Load Connection:
    • For devices that should turn ON when the relay is activated, connect the load between the COM and NO terminals.
    • For devices that should turn OFF when the relay is activated, connect the load between the COM and NC terminals.
  4. Isolation: Ensure proper electrical isolation between the low-voltage control circuit and the high-voltage load circuit.
  5. Test the Circuit: Apply the control signal to the IN pin and verify that the relay switches the load as expected.

Important Considerations and Best Practices

  • Power Supply: Ensure the relay module is powered with a stable 5V DC supply.
  • Load Ratings: Do not exceed the maximum voltage (250V AC / 30V DC) or current (10A) ratings of the relay.
  • Optocoupler Isolation: The module includes an optocoupler for isolation. Ensure proper wiring to maintain electrical safety.
  • Flyback Diode: If controlling an inductive load (e.g., motor, solenoid), use a flyback diode across the load to protect the relay from voltage spikes.
  • Avoid Rapid Switching: Avoid switching the relay on and off rapidly, as this can reduce its lifespan.

Example: Connecting to an Arduino UNO

Below is an example of how to control the 1 Channel Relay 5V module using an Arduino UNO.

Circuit Connections

  • Connect the relay module's VCC to the Arduino's 5V pin.
  • Connect the relay module's GND to the Arduino's GND pin.
  • Connect the relay module's IN pin to Arduino digital pin 7.
  • Connect the load (e.g., a light bulb) to the COM and NO terminals of the relay.

Arduino Code

// Example code to control a 1 Channel Relay 5V module with Arduino UNO

#define RELAY_PIN 7  // Define the digital pin connected to the relay module

void setup() {
  pinMode(RELAY_PIN, OUTPUT);  // Set the relay pin as an output
  digitalWrite(RELAY_PIN, LOW); // Ensure the relay is off at startup
}

void loop() {
  digitalWrite(RELAY_PIN, HIGH); // Turn the relay ON
  delay(5000);                   // Keep it ON for 5 seconds
  digitalWrite(RELAY_PIN, LOW);  // Turn the relay OFF
  delay(5000);                   // Keep it OFF for 5 seconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Relay Not Switching:

    • Cause: Insufficient control signal voltage.
    • Solution: Ensure the control signal voltage is between 3.3V and 5V.
  2. Load Not Powering On/Off:

    • Cause: Incorrect wiring of the load to the relay terminals.
    • Solution: Verify the load is connected to the correct terminals (COM, NO, or NC).
  3. Relay Clicking Rapidly:

    • Cause: Unstable control signal or power supply.
    • Solution: Check the control signal and power supply for stability.
  4. Burnt Relay Module:

    • Cause: Exceeding the relay's voltage or current ratings.
    • Solution: Ensure the load does not exceed 250V AC / 30V DC or 10A.

FAQs

Q1: Can I use the relay module with a 3.3V microcontroller?
A1: Yes, the relay module can be triggered with a 3.3V control signal, but ensure the VCC pin is powered with 5V.

Q2: Is the relay module safe for high-voltage applications?
A2: Yes, the relay is designed for high-voltage applications, but proper isolation and safety precautions must be followed.

Q3: Can I control multiple relays with one Arduino?
A3: Yes, you can control multiple relays by connecting each relay's IN pin to a separate digital pin on the Arduino.

Q4: How do I know if the relay is activated?
A4: The relay module typically includes an onboard LED that lights up when the relay is activated.

By following this documentation, you can effectively use the 1 Channel Relay 5V module in your projects for safe and reliable control of high-power devices.
