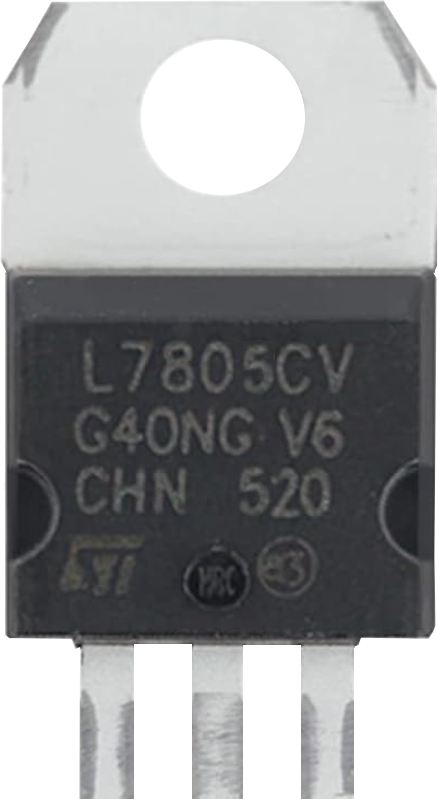

Image of Voltage Regulator LM7805
Cirkit Designer LogoDesign with Voltage Regulator LM7805 in Cirkit Designer

Introduction

The LM7805 is a linear voltage regulator that provides a stable output voltage of 5V. It is widely used in electronic circuits to ensure that sensitive components receive a consistent and regulated voltage, regardless of fluctuations in input voltage or load conditions. The LM7805 is part of the 78xx series of voltage regulators, which are known for their reliability and ease of use.

Explore Projects Built with Voltage Regulator LM7805

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Control Circuit with Potentiometer and Transistors
Image of STROBE LIGHTS: A project utilizing Voltage Regulator LM7805 in a practical application
This circuit is a regulated power supply with a 12V battery input, a 7805 voltage regulator providing a 5V output, and a potentiometer for adjustable voltage control. It includes transistors and resistors for current regulation and an LED indicator to show the operational status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED Indicator with 7805 Voltage Regulator
Image of 5V circuit: A project utilizing Voltage Regulator LM7805 in a practical application
This circuit uses a 9V battery to power a 7805 voltage regulator, which outputs a stable 5V. A toggle switch controls the input to the voltage regulator, and the regulated 5V output powers an LED through a 200-ohm resistor, allowing the LED to indicate when the circuit is active.
Cirkit Designer LogoOpen Project in Cirkit Designer
12V to 5V Power Supply with LED Indicator and Push Switch
Image of Power Supply LVCO: A project utilizing Voltage Regulator LM7805 in a practical application
This circuit is a 12V to 5V regulated power supply with an LED indicator. It uses a 5408 diode for reverse polarity protection, an LM340T5 7805 voltage regulator to step down the voltage to 5V, and a push switch to control the LED indicator. The circuit also includes capacitors for filtering and a resistor to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
LM317 Voltage Regulator Circuit for Adjustable Power Supply with Transformer and Diodes
Image of 12V BULB LIGHT DIMMER CIRCUIT: A project utilizing Voltage Regulator LM7805 in a practical application
This circuit is a regulated power supply that converts AC voltage to a stable DC voltage. It uses a transformer to step down the AC voltage, diodes for rectification, an electrolytic capacitor for smoothing, and an LM317 voltage regulator to provide a stable output voltage, which is adjustable via a potentiometer. The output powers a bulb.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Voltage Regulator LM7805

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of STROBE LIGHTS: A project utilizing Voltage Regulator LM7805 in a practical application
Battery-Powered LED Control Circuit with Potentiometer and Transistors
This circuit is a regulated power supply with a 12V battery input, a 7805 voltage regulator providing a 5V output, and a potentiometer for adjustable voltage control. It includes transistors and resistors for current regulation and an LED indicator to show the operational status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 5V circuit: A project utilizing Voltage Regulator LM7805 in a practical application
Battery-Powered LED Indicator with 7805 Voltage Regulator
This circuit uses a 9V battery to power a 7805 voltage regulator, which outputs a stable 5V. A toggle switch controls the input to the voltage regulator, and the regulated 5V output powers an LED through a 200-ohm resistor, allowing the LED to indicate when the circuit is active.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Power Supply LVCO: A project utilizing Voltage Regulator LM7805 in a practical application
12V to 5V Power Supply with LED Indicator and Push Switch
This circuit is a 12V to 5V regulated power supply with an LED indicator. It uses a 5408 diode for reverse polarity protection, an LM340T5 7805 voltage regulator to step down the voltage to 5V, and a push switch to control the LED indicator. The circuit also includes capacitors for filtering and a resistor to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 12V BULB LIGHT DIMMER CIRCUIT: A project utilizing Voltage Regulator LM7805 in a practical application
LM317 Voltage Regulator Circuit for Adjustable Power Supply with Transformer and Diodes
This circuit is a regulated power supply that converts AC voltage to a stable DC voltage. It uses a transformer to step down the AC voltage, diodes for rectification, an electrolytic capacitor for smoothing, and an LM317 voltage regulator to provide a stable output voltage, which is adjustable via a potentiometer. The output powers a bulb.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Power supply circuits for microcontrollers, sensors, and other 5V devices
  • Voltage regulation in battery-powered systems
  • Protection of sensitive electronic components from voltage spikes
  • DIY electronics projects and prototyping

Technical Specifications

The LM7805 is designed to operate efficiently in a variety of conditions. Below are its key technical details:

Parameter Value
Output Voltage 5V ± 2%
Input Voltage Range 7V to 35V
Maximum Output Current 1.5A
Dropout Voltage 2V (typical)
Quiescent Current 5mA (typical)
Operating Temperature 0°C to +125°C
Package Types TO-220, TO-92, SOT-223

Pin Configuration and Descriptions

The LM7805 typically comes in a TO-220 package with three pins. Below is the pinout and description:

Pin Number Pin Name Description
1 Input (VIN) Connect to the unregulated input voltage (7V-35V).
2 Ground (GND) Common ground for input and output.
3 Output (VOUT) Provides the regulated 5V output.

Usage Instructions

How to Use the LM7805 in a Circuit

  1. Input Voltage: Connect the input voltage (VIN) to Pin 1. Ensure the input voltage is at least 2V higher than the desired output (minimum 7V for a 5V output).
  2. Ground Connection: Connect Pin 2 (GND) to the ground of your circuit.
  3. Output Voltage: Connect Pin 3 (VOUT) to the load that requires a regulated 5V supply.
  4. Capacitors: Add capacitors to stabilize the voltage and reduce noise:
    • A 0.33µF capacitor between VIN and GND.
    • A 0.1µF capacitor between VOUT and GND.

Circuit Diagram

Below is a simple circuit diagram for using the LM7805:

   Input Voltage (7V-35V)
          |
          |
         [C1]  0.33µF
          |
          |-----> Pin 1 (VIN)
          |
         GND -----> Pin 2 (GND)
          |
         [C2]  0.1µF
          |
          |-----> Pin 3 (VOUT) -----> Regulated 5V Output

Important Considerations and Best Practices

  • Heat Dissipation: The LM7805 can generate heat during operation, especially at high input voltages or currents. Use a heatsink if the regulator becomes too hot.
  • Input Voltage: Ensure the input voltage is within the specified range (7V-35V). Exceeding this range can damage the component.
  • Current Limit: The maximum output current is 1.5A. Exceeding this limit may cause the regulator to shut down or overheat.
  • Bypass Capacitors: Always use the recommended capacitors to ensure stable operation and minimize noise.

Example: Using LM7805 with Arduino UNO

The LM7805 can be used to power an Arduino UNO by providing a stable 5V supply. Below is an example circuit and code:

Circuit Setup

  1. Connect a 9V battery to the input of the LM7805.
  2. Connect the output of the LM7805 to the 5V pin of the Arduino UNO.
  3. Add the recommended capacitors (0.33µF and 0.1µF) for stability.

Arduino Code

// Example code to blink an LED using Arduino UNO powered by LM7805
const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check the input voltage. Ensure it is at least 7V.
    • Verify the connections, especially the ground (GND) pin.
    • Inspect the capacitors for proper placement and values.
  2. Overheating:

    • Use a heatsink to dissipate heat.
    • Reduce the input voltage if possible.
    • Ensure the load current does not exceed 1.5A.
  3. Output Voltage is Unstable:

    • Add or replace the bypass capacitors (0.33µF and 0.1µF).
    • Check for noise or interference in the input voltage.
  4. Component Failure:

    • Ensure the input voltage does not exceed 35V.
    • Avoid short circuits on the output pin.

FAQs

Q: Can I use the LM7805 to power a 3.3V device?
A: No, the LM7805 provides a fixed 5V output. To power a 3.3V device, use a 3.3V regulator like the LM7833 or a step-down converter.

Q: Do I always need capacitors with the LM7805?
A: Yes, capacitors are essential for stable operation and noise reduction. Without them, the output voltage may fluctuate.

Q: Can the LM7805 handle reverse polarity?
A: No, the LM7805 does not have built-in reverse polarity protection. Use a diode in series with the input to prevent damage.

Q: What is the maximum input voltage for the LM7805?
A: The maximum input voltage is 35V. Exceeding this value can damage the regulator.

By following this documentation, you can effectively use the LM7805 voltage regulator in your electronic projects.
