How to Use Esp32 : Examples, Pinouts, and Specs

Image of Esp32
Cirkit Designer LogoDesign with Esp32 in Cirkit Designer

Introduction

The ESP32, manufactured by Esp, is a low-cost, low-power system on a chip (SoC) with integrated Wi-Fi and Bluetooth capabilities. It is widely used in Internet of Things (IoT) applications, embedded systems, and smart devices. The ESP32 is highly versatile, offering dual-core processing, a wide range of GPIO pins, and support for various communication protocols, making it a popular choice for developers and hobbyists alike.

Explore Projects Built with Esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing Esp32  in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
Image of Arena 2: A project utilizing Esp32  in a practical application
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing Esp32  in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Infrared Thermometer with I2C LCD Display
Image of infrared thermometer: A project utilizing Esp32  in a practical application
This circuit features an ESP32 microcontroller powered by a 18650 Li-Ion battery, with a TP4056 module for charging the battery via a USB plug. The ESP32 reads temperature data from an MLX90614 infrared temperature sensor and displays it on an I2C LCD 16x2 screen. The ESP32, MLX90614 sensor, and LCD screen are connected via I2C communication lines (SCL, SDA), and the circuit is designed to measure and display ambient and object temperatures.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MVP_design: A project utilizing Esp32  in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Arena 2: A project utilizing Esp32  in a practical application
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing Esp32  in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of infrared thermometer: A project utilizing Esp32  in a practical application
ESP32-Based Infrared Thermometer with I2C LCD Display
This circuit features an ESP32 microcontroller powered by a 18650 Li-Ion battery, with a TP4056 module for charging the battery via a USB plug. The ESP32 reads temperature data from an MLX90614 infrared temperature sensor and displays it on an I2C LCD 16x2 screen. The ESP32, MLX90614 sensor, and LCD screen are connected via I2C communication lines (SCL, SDA), and the circuit is designed to measure and display ambient and object temperatures.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices (e.g., smart home systems, environmental monitoring)
  • Wireless communication (Wi-Fi and Bluetooth-enabled devices)
  • Wearable technology
  • Robotics and automation
  • Data logging and remote sensing
  • Prototyping and educational projects

Technical Specifications

The ESP32 is packed with features that make it suitable for a wide range of applications. Below are its key technical specifications:

Specification Details
Manufacturer Esp
Part ID 32
Processor Dual-core Xtensa® 32-bit LX6 microprocessor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by module)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (Classic and BLE)
Operating Voltage 3.0V to 3.6V
GPIO Pins 34 (multipurpose, including ADC, DAC, PWM, I2C, SPI, UART, etc.)
ADC Channels 18 (12-bit resolution)
DAC Channels 2
Power Consumption Ultra-low power consumption in deep sleep mode (as low as 10 µA)
Operating Temperature -40°C to +125°C
Dimensions Varies by module (e.g., ESP32-WROOM-32: 18 mm x 25.5 mm)

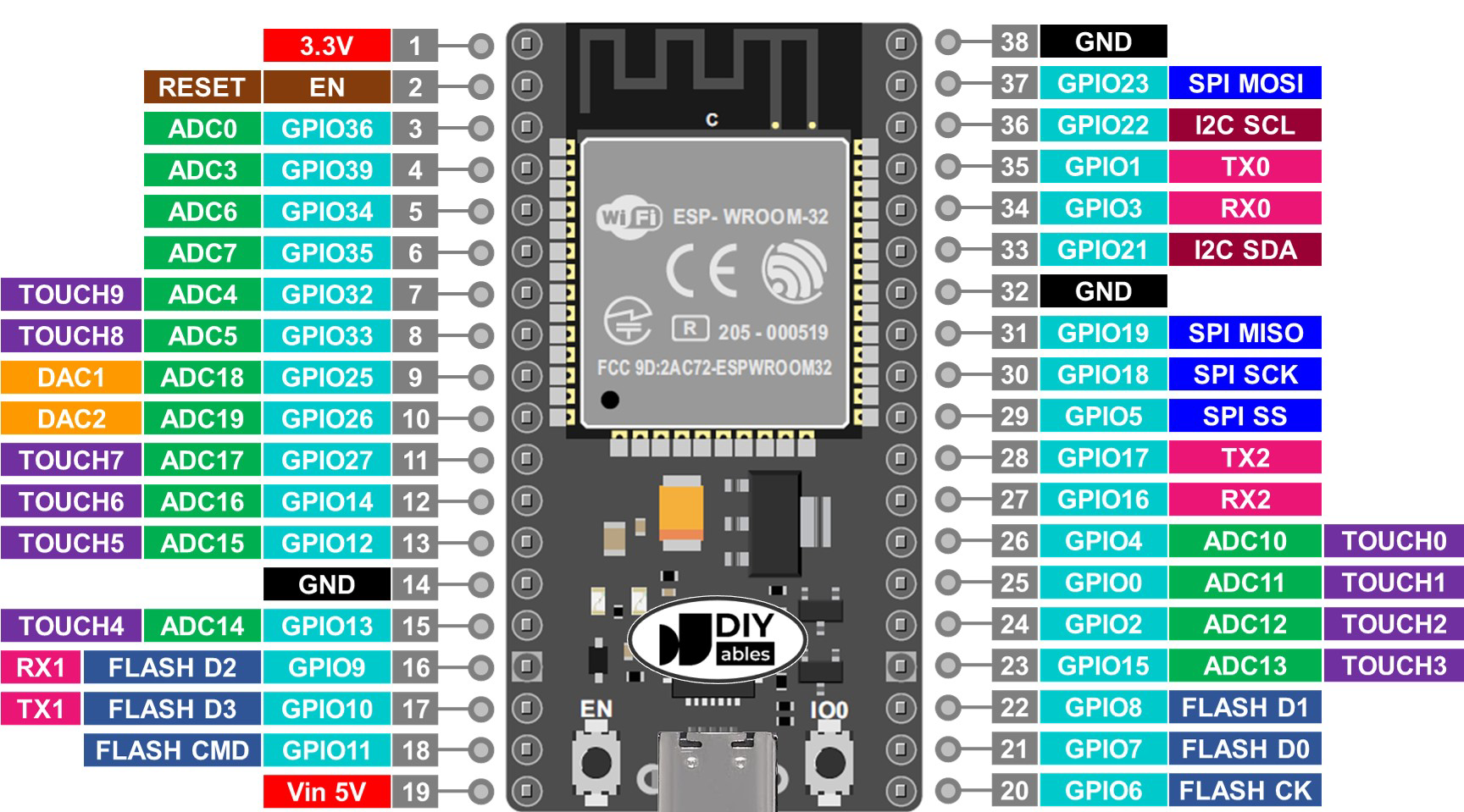

Pin Configuration and Descriptions

The ESP32 has a flexible pinout, with each pin capable of multiple functions. Below is a table summarizing the key pins and their descriptions:

Pin Function Description
GPIO0 Input/Output, Boot Mode Select Used for boot mode selection during startup.
GPIO2 Input/Output General-purpose I/O pin.
GPIO12 Input/Output, ADC, Touch Can function as an ADC input or capacitive touch sensor.
GPIO13 Input/Output, ADC, Touch Can function as an ADC input or capacitive touch sensor.
GPIO15 Input/Output, ADC, Touch Can function as an ADC input or capacitive touch sensor.
GPIO16 Input/Output General-purpose I/O pin.
GPIO17 Input/Output General-purpose I/O pin.
EN Enable Active-high pin to enable the chip.
3V3 Power Supply 3.3V power input.
GND Ground Ground connection.

For a complete pinout, refer to the ESP32 datasheet or module-specific documentation.

Usage Instructions

How to Use the ESP32 in a Circuit

  1. Powering the ESP32: Connect the 3.3V pin to a regulated 3.3V power source and GND to ground. Avoid exceeding the voltage range to prevent damage.
  2. Programming the ESP32: Use a USB-to-serial adapter or a development board (e.g., ESP32 DevKit) to upload code via the micro-USB port.
  3. Connecting Peripherals: Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure proper voltage levels and current limits.
  4. Wi-Fi and Bluetooth Setup: Configure the Wi-Fi and Bluetooth settings in your code to enable wireless communication.

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
  • Power Supply: Ensure a stable power supply to avoid unexpected resets or malfunctions.
  • Deep Sleep Mode: Use deep sleep mode to conserve power in battery-powered applications.
  • Pin Multiplexing: Be aware of pin multiplexing and avoid conflicts when assigning functions to GPIO pins.

Example Code for Arduino UNO Integration

The ESP32 can be programmed using the Arduino IDE. Below is an example of how to connect the ESP32 to a Wi-Fi network:

#include <WiFi.h> // Include the WiFi library for ESP32

// Replace with your network credentials
const char* ssid = "Your_SSID";       // Your Wi-Fi network name
const char* password = "Your_PASSWORD"; // Your Wi-Fi network password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000);          // Wait for a moment to stabilize the serial monitor

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start connecting to the Wi-Fi network

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for 500ms before checking the connection status again
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Connecting to Wi-Fi

    • Solution: Double-check the SSID and password in your code. Ensure the Wi-Fi network is active and within range.
    • Tip: Use WiFi.status() to debug connection issues.
  2. ESP32 Keeps Resetting

    • Solution: Verify the power supply. Ensure it provides sufficient current (at least 500 mA).
    • Tip: Check for loose connections or short circuits.
  3. GPIO Pins Not Responding

    • Solution: Ensure the pins are not being used for multiple functions. Check the pin configuration in your code.
    • Tip: Use a multimeter to verify the voltage levels on the pins.
  4. Code Upload Fails

    • Solution: Ensure the correct board and port are selected in the Arduino IDE. Press and hold the "BOOT" button on the ESP32 during upload if necessary.
    • Tip: Install the latest ESP32 board package in the Arduino IDE.

FAQs

  • Q: Can the ESP32 operate on 5V?
    A: No, the ESP32 operates at 3.3V. Use a voltage regulator or level shifter for 5V systems.

  • Q: How do I reset the ESP32?
    A: Press the "EN" button on the module to reset the ESP32.

  • Q: Can I use the ESP32 with other microcontrollers?
    A: Yes, the ESP32 can communicate with other microcontrollers via UART, I2C, or SPI.

  • Q: How do I update the ESP32 firmware?
    A: Use the ESP32 Flash Download Tool or the Arduino IDE to upload new firmware.

This documentation provides a comprehensive guide to using the ESP32. For more advanced features, refer to the official Esp documentation.
