How to Use esp32 38p typec cp2102: Examples, Pinouts, and Specs

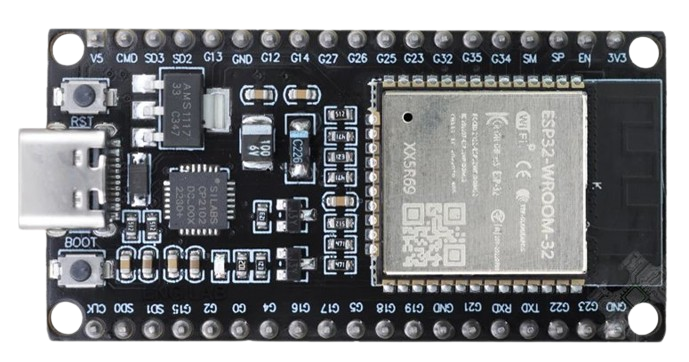

Image of esp32 38p typec cp2102
Cirkit Designer LogoDesign with esp32 38p typec cp2102 in Cirkit Designer

Introduction

The ESP32 38P Type-C CP2102 is a versatile and powerful microcontroller module developed by Espressif Systems. It is based on the ESP32 dual-core processor, which integrates Wi-Fi and Bluetooth capabilities, making it ideal for IoT (Internet of Things) applications. This module features a USB Type-C interface for easy programming and power supply, as well as the CP2102 USB-to-UART bridge for seamless communication with a computer.

Common applications of the ESP32 38P Type-C CP2102 include:

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable electronics
  • Robotics and automation systems
  • Prototyping and development of connected devices

Explore Projects Built with esp32 38p typec cp2102

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Infrared Thermometer with I2C LCD Display
Image of infrared thermometer: A project utilizing esp32 38p typec cp2102 in a practical application
This circuit features an ESP32 microcontroller powered by a 18650 Li-Ion battery, with a TP4056 module for charging the battery via a USB plug. The ESP32 reads temperature data from an MLX90614 infrared temperature sensor and displays it on an I2C LCD 16x2 screen. The ESP32, MLX90614 sensor, and LCD screen are connected via I2C communication lines (SCL, SDA), and the circuit is designed to measure and display ambient and object temperatures.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Mini-Based Smart Timekeeper with OLED Display and Battery Charging
Image of RM Gloves: A project utilizing esp32 38p typec cp2102 in a practical application
This circuit features an ESP32 Mini microcontroller as its core, interfaced with a 0.96" OLED display and a DS3231 Real-Time Clock (RTC) for timekeeping and display purposes. A TP4056 module is used for charging a LiPoly battery, which powers the system through an LM2596 voltage regulator and an AMS1117-3.3 voltage regulator to step down and stabilize the voltage for the ESP32 and peripherals. User inputs are captured through a rotary potentiometer and a red pushbutton, which are connected to the ESP32's GPIOs for control and reset functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Pulse Oximeter with USB-C Charging
Image of AWS DA: A project utilizing esp32 38p typec cp2102 in a practical application
This circuit is a health monitoring system featuring an ESP32 microcontroller connected to a MAX30100 pulse oximetry and heart-rate sensor. Power management is handled by a 3.3V battery with a toggle switch for on/off control and a TP4056 charging module for battery charging. The ESP32 communicates with the MAX30100 sensor via I2C protocol.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
Image of gps projekt circuit: A project utilizing esp32 38p typec cp2102 in a practical application
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp32 38p typec cp2102

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of infrared thermometer: A project utilizing esp32 38p typec cp2102 in a practical application
ESP32-Based Infrared Thermometer with I2C LCD Display
This circuit features an ESP32 microcontroller powered by a 18650 Li-Ion battery, with a TP4056 module for charging the battery via a USB plug. The ESP32 reads temperature data from an MLX90614 infrared temperature sensor and displays it on an I2C LCD 16x2 screen. The ESP32, MLX90614 sensor, and LCD screen are connected via I2C communication lines (SCL, SDA), and the circuit is designed to measure and display ambient and object temperatures.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RM Gloves: A project utilizing esp32 38p typec cp2102 in a practical application
ESP32 Mini-Based Smart Timekeeper with OLED Display and Battery Charging
This circuit features an ESP32 Mini microcontroller as its core, interfaced with a 0.96" OLED display and a DS3231 Real-Time Clock (RTC) for timekeeping and display purposes. A TP4056 module is used for charging a LiPoly battery, which powers the system through an LM2596 voltage regulator and an AMS1117-3.3 voltage regulator to step down and stabilize the voltage for the ESP32 and peripherals. User inputs are captured through a rotary potentiometer and a red pushbutton, which are connected to the ESP32's GPIOs for control and reset functionality.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of AWS DA: A project utilizing esp32 38p typec cp2102 in a practical application
ESP32-Based Pulse Oximeter with USB-C Charging
This circuit is a health monitoring system featuring an ESP32 microcontroller connected to a MAX30100 pulse oximetry and heart-rate sensor. Power management is handled by a 3.3V battery with a toggle switch for on/off control and a TP4056 charging module for battery charging. The ESP32 communicates with the MAX30100 sensor via I2C protocol.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gps projekt circuit: A project utilizing esp32 38p typec cp2102 in a practical application
ESP32-Based GPS Tracker with SD Card Logging and Barometric Sensor
This circuit features an ESP32 Wroom Dev Kit as the main microcontroller, interfaced with an MPL3115A2 sensor for pressure and temperature readings, and a Neo 6M GPS module for location tracking. The ESP32 is also connected to an SD card reader for data logging purposes. A voltage regulator is used to step down the USB power supply to 3.3V, which powers the ESP32, the sensor, and the SD card reader.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

The ESP32 38P Type-C CP2102 module has the following key technical specifications:

Parameter Value
Microcontroller ESP32 dual-core Xtensa LX6 processor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth v4.2 + BLE
Operating Voltage 3.3V
Input Voltage (via USB) 5V (Type-C interface)
GPIO Pins 38 (including ADC, DAC, PWM, I2C, SPI, UART, etc.)
USB-to-UART Bridge CP2102
Dimensions Approximately 51mm x 25.5mm

Pin Configuration and Descriptions

The ESP32 38P Type-C CP2102 module has 38 pins, each with specific functions. Below is a table summarizing the pin configuration:

Pin Number Pin Name Function
1 GND Ground
2 3V3 3.3V power output
3 EN Enable pin (active high, used to reset the module)
4 IO0 GPIO0 (used for boot mode selection during programming)
5 IO1 GPIO1 (UART TXD)
6 IO3 GPIO3 (UART RXD)
7 IO4 GPIO4 (PWM, ADC, or general-purpose GPIO)
8 IO5 GPIO5 (PWM, ADC, or general-purpose GPIO)
9 IO12 GPIO12 (ADC, touch sensor, or general-purpose GPIO)
10 IO13 GPIO13 (ADC, touch sensor, or general-purpose GPIO)
... ... ... (Refer to the official datasheet for the full pinout)
38 VIN Input voltage (5V from USB or external power source)

Note: Some pins have multiple functions (e.g., ADC, DAC, PWM, etc.). Refer to the ESP32 datasheet for detailed pin multiplexing information.

Usage Instructions

How to Use the ESP32 38P Type-C CP2102 in a Circuit

  1. Powering the Module:

    • Connect the module to a computer or power source using a USB Type-C cable. The onboard voltage regulator will convert the 5V input to 3.3V for the ESP32.
    • Alternatively, supply 5V to the VIN pin or 3.3V to the 3V3 pin.
  2. Programming the Module:

    • Install the CP2102 USB-to-UART driver on your computer (if not already installed).
    • Use the Arduino IDE or Espressif's ESP-IDF to write and upload code to the ESP32.
    • Ensure GPIO0 is pulled LOW during programming to enable boot mode.
  3. Connecting Peripherals:

    • Use the GPIO pins to connect sensors, actuators, or other peripherals. Ensure the voltage levels are compatible (3.3V logic).
  4. Wi-Fi and Bluetooth Setup:

    • Use the built-in Wi-Fi and Bluetooth libraries in the Arduino IDE or ESP-IDF to configure wireless communication.

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V signals directly to GPIO pins to prevent damage.
  • Power Supply: Ensure a stable power supply, especially when using Wi-Fi or Bluetooth, as these features can cause current spikes.
  • Pin Usage: Some pins (e.g., GPIO0, GPIO2, GPIO15) have specific roles during boot and should be used with caution.
  • Heat Management: The ESP32 can get warm during operation. Ensure proper ventilation or heat dissipation if used in enclosed spaces.

Example Code for Arduino UNO Integration

Below is an example of using the ESP32 to control an LED via Wi-Fi:

#include <WiFi.h>

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  pinMode(2, OUTPUT);   // Set GPIO2 as an output pin (connected to an LED)

  // Connect to Wi-Fi
  Serial.print("Connecting to Wi-Fi");
  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nWi-Fi connected!");
}

void loop() {
  digitalWrite(2, HIGH); // Turn the LED on
  delay(1000);           // Wait for 1 second
  digitalWrite(2, LOW);  // Turn the LED off
  delay(1000);           // Wait for 1 second
}

Note: Replace Your_SSID and Your_PASSWORD with your Wi-Fi network credentials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Detected by Computer:

    • Ensure the CP2102 driver is installed correctly.
    • Try a different USB cable or port.
  2. Failed to Upload Code:

    • Check that GPIO0 is pulled LOW during programming.
    • Verify the correct COM port and board settings in the Arduino IDE.
  3. Wi-Fi Connection Issues:

    • Double-check the SSID and password.
    • Ensure the router is within range and supports 2.4 GHz Wi-Fi (ESP32 does not support 5 GHz).
  4. Module Overheating:

    • Reduce the workload or provide better ventilation.
    • Check for short circuits or excessive current draw.

FAQs

  • Q: Can the ESP32 38P Type-C CP2102 be powered by batteries?
    A: Yes, you can power the module using a 3.7V LiPo battery connected to the VIN pin (via a suitable regulator).

  • Q: Does the module support OTA (Over-the-Air) updates?
    A: Yes, the ESP32 supports OTA updates, allowing you to upload code wirelessly.

  • Q: Can I use the ESP32 with MicroPython?
    A: Yes, the ESP32 is compatible with MicroPython. You can flash the MicroPython firmware to the module and use Python for programming.

  • Q: What is the maximum range of the Wi-Fi?
    A: The Wi-Fi range depends on environmental factors but typically extends up to 100 meters in open spaces.

For additional support, refer to the official Espressif documentation or community forums.
