How to Use TOBSUN 12V to 5V Step Down Converter: Examples, Pinouts, and Specs

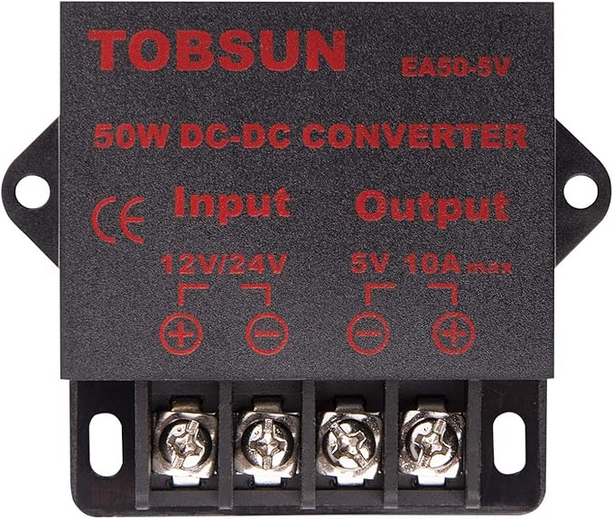

The TOBSUN 12V to 5V Step Down Converter (Manufacturer Part ID: IG-PC12-5V) is a DC-DC buck converter designed to efficiently step down a 12V input voltage to a stable 5V output. This component is ideal for powering devices that require a lower voltage, such as microcontrollers, sensors, and USB-powered devices. Its compact design and high efficiency make it a popular choice for automotive, industrial, and DIY electronics projects.

• Powering 5V microcontrollers (e.g., Arduino, Raspberry Pi)
• USB device power supplies
• Automotive electronics (e.g., powering dash cams or GPS units)
• Battery-powered systems
• General-purpose voltage regulation in DIY projects

The following table outlines the key technical details of the TOBSUN 12V to 5V Step Down Converter:

The TOBSUN IG-PC12-5V converter has four pins for input and output connections. The table below describes each pin:

1. Connect the Input Voltage:

   • Connect the VIN+ pin to the positive terminal of your 12V power source.
   • Connect the VIN- pin to the ground terminal of your power source.

2. Connect the Output Voltage:

   • Connect the VOUT+ pin to the positive terminal of the device you want to power.
   • Connect the VOUT- pin to the ground terminal of the device.

3. Verify Connections:

   • Double-check all connections to ensure proper polarity and avoid short circuits.

4. Power On:

   • Turn on the 12V power source. The converter will step down the voltage to 5V, which can now be used to power your device.

• Input Voltage Range: Ensure the input voltage is within the specified range (8V to 20V). Exceeding this range may damage the converter.
• Heat Dissipation: For high-current applications (close to 3A), ensure proper ventilation or heat sinking to prevent overheating.
• Polarity: Always connect the input and output pins with the correct polarity to avoid damaging the converter or connected devices.
• Load Requirements: Do not exceed the maximum output current of 3A to maintain stable operation and prevent damage.

The TOBSUN 12V to 5V Step Down Converter can be used to power an Arduino UNO from a 12V power source. Below is an example circuit and Arduino code:

• Connect the VIN+ pin of the converter to the positive terminal of a 12V power source.
• Connect the VIN- pin of the converter to the ground terminal of the power source.
• Connect the VOUT+ pin of the converter to the 5V pin of the Arduino UNO.
• Connect the VOUT- pin of the converter to the GND pin of the Arduino UNO.

// Example code to blink an LED connected to pin 13 of the Arduino UNO
// Ensure the Arduino is powered via the TOBSUN 12V to 5V Step Down Converter

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Incorrect input connections or insufficient input voltage.
   • Solution: Verify that the VIN+ and VIN- pins are connected correctly and that the input voltage is within the 8V to 20V range.

2. Overheating:

   • Cause: Excessive current draw or poor ventilation.
   • Solution: Ensure the load does not exceed 3A. Provide adequate ventilation or use a heat sink.

3. Output Voltage Fluctuations:

   • Cause: Unstable input voltage or excessive load.
   • Solution: Use a stable power source and ensure the load is within the converter's specifications.

4. Device Not Powering On:

   • Cause: Incorrect output connections or damaged converter.
   • Solution: Verify the VOUT+ and VOUT- connections. Replace the converter if it is damaged.

Q: Can I use this converter with a 24V input?
A: No, the maximum input voltage is 20V. Using a 24V input may damage the converter.

Q: Is the output voltage adjustable?
A: No, the output voltage is fixed at 5V.

Q: Can I use this converter to charge a USB device?
A: Yes, the 5V output is suitable for USB devices, provided the current draw does not exceed 3A.

Q: Does the converter have built-in overcurrent protection?
A: No, the converter does not include overcurrent protection. Ensure the load does not exceed the specified maximum current.
