How to Use Arduino UNO: Examples, Pinouts, and Specs

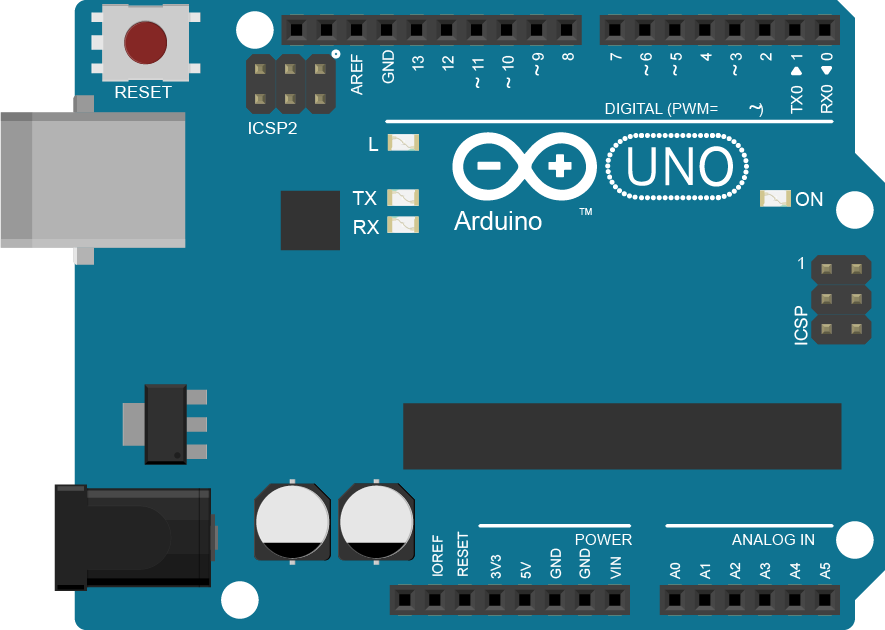

The Arduino UNO is a microcontroller board based on the ATmega328P. It is one of the most popular and versatile development boards in the Arduino ecosystem, widely used for building digital devices and interactive objects that can sense and control the physical world. The board is beginner-friendly yet powerful enough for advanced projects, making it a favorite among hobbyists, students, and professionals.

• Prototyping and testing electronic circuits
• Building IoT (Internet of Things) devices
• Robotics and automation projects
• Data logging and sensor interfacing
• Educational tools for learning programming and electronics

The Arduino UNO is designed to provide a balance of simplicity and functionality. Below are its key technical details:

The Arduino UNO has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed breakdown:

The Arduino UNO is straightforward to use, even for beginners. Follow these steps to get started:

1. Download the Arduino IDE from the official website.
2. Install the software on your computer.

1. Use a USB Type-B cable to connect the Arduino UNO to your computer.
2. The power LED on the board should light up, indicating it is powered.

1. Open the Arduino IDE and select Tools > Board > Arduino UNO.
2. Select the correct COM Port under Tools > Port.
3. Write your code in the IDE or use the example below:

   // Blink an LED connected to pin 13
   void setup() {
     pinMode(13, OUTPUT); // Set pin 13 as an output
   }

   void loop() {
     digitalWrite(13, HIGH); // Turn the LED on
     delay(1000);            // Wait for 1 second
     digitalWrite(13, LOW);  // Turn the LED off
     delay(1000);            // Wait for 1 second
   }


4. Click the Upload button to upload the code to the Arduino UNO.

• Use jumper wires to connect sensors, actuators, or other components to the appropriate pins.
• Ensure the power requirements of external components match the Arduino UNO's output.

• Avoid drawing more than 20 mA from any single I/O pin to prevent damage.
• Use external power (via VIN or the power jack) for high-power components.
• Always double-check connections to avoid short circuits.

1. The Arduino UNO is not detected by the computer.

   • Ensure the USB cable is properly connected.
   • Check if the correct COM port is selected in the Arduino IDE.
   • Install the necessary USB drivers from the Arduino website.

2. The code does not upload to the board.

   • Verify that the correct board and port are selected in the IDE.
   • Press the RESET button on the board before uploading.
   • Check for syntax errors in your code.

3. The board is not powering up.

   • Confirm that the power source (USB or external) is functioning.
   • Check for loose connections or damaged components.

4. The connected components are not working as expected.

   • Verify the wiring and pin assignments in your code.
   • Ensure the components are compatible with the Arduino UNO's voltage levels.

1. Can I power the Arduino UNO with a battery?

   • Yes, you can use a 9V battery connected to the power jack or VIN pin.

2. What is the maximum current the Arduino UNO can supply?

   • The 5V pin can supply up to 500 mA when powered via USB, or up to 1A when powered via an external adapter.

3. Can I use the Arduino UNO for wireless communication?

   • Yes, you can use external modules like Bluetooth, Wi-Fi, or RF transceivers.

By following this documentation, you can effectively use the Arduino UNO for a wide range of projects and applications.
