How to Use Red led: Examples, Pinouts, and Specs

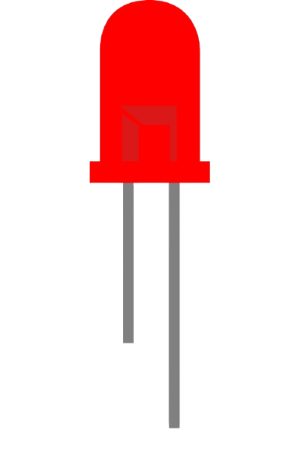

The Lina Red LED (Part ID: 1) is a light-emitting diode that emits red light when an electric current passes through it. This component is widely used in electronic circuits for visual indicators, status displays, and decorative lighting. Its compact size, low power consumption, and long lifespan make it an essential component in various applications.

• Power and status indicators in electronic devices
• Digital displays and signage
• Decorative and ambient lighting
• Circuit debugging and testing
• Educational and DIY electronics projects

Below are the key technical details for the Lina Red LED (Part ID: 1):

The Lina Red LED has two pins:

Note: The longer lead is the anode, which connects to the positive side of the circuit, while the shorter lead is the cathode, which connects to the negative side.

1. Determine the Resistor Value: To prevent damage to the LED, always use a current-limiting resistor in series with the LED. The resistor value can be calculated using Ohm's Law: [ R = \frac{V_{supply} - V_f}{I_f} ] Where:

   • ( V_{supply} ) is the supply voltage
   • ( V_f ) is the forward voltage of the LED (1.8V to 2.2V)
   • ( I_f ) is the desired forward current (typically 20mA)

   For example, if ( V_{supply} = 5V ) and ( V_f = 2V ), the resistor value is: [ R = \frac{5V - 2V}{0.02A} = 150\Omega ]

2. Connect the LED:

   • Connect the anode (longer lead) to the positive terminal of the power supply through the resistor.
   • Connect the cathode (shorter lead) to the ground.

3. Power the Circuit: Apply the appropriate voltage to the circuit. The LED will emit red light when powered correctly.

• Polarity: LEDs are polarized components. Reversing the polarity may damage the LED.
• Current Limiting: Always use a resistor to limit the current through the LED.
• Heat Dissipation: Avoid exceeding the maximum power dissipation to prevent overheating.
• Series and Parallel Connections: When using multiple LEDs, calculate the resistor values accordingly for series or parallel configurations.

Below is an example of how to connect and control the Lina Red LED with an Arduino UNO:

• Connect the anode of the LED to Arduino pin 13 through a 220Ω resistor.
• Connect the cathode of the LED to the GND pin of the Arduino.

// Example code to blink a Lina Red LED connected to pin 13 of Arduino UNO

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Note: The 220Ω resistor is used to limit the current to a safe level for the LED.

1. LED Does Not Light Up:

   • Cause: Incorrect polarity.

   • Solution: Ensure the anode is connected to the positive terminal and the cathode to the negative terminal.

   • Cause: No current-limiting resistor or incorrect resistor value.

   • Solution: Verify the resistor value and ensure it is connected in series with the LED.

2. LED Flickers or is Dim:

   • Cause: Insufficient current or unstable power supply.
   • Solution: Check the power supply voltage and ensure the resistor value is appropriate.

3. LED Burns Out:

   • Cause: Excessive current or voltage.
   • Solution: Use a proper current-limiting resistor and ensure the supply voltage does not exceed the LED's maximum rating.

Q: Can I connect the LED directly to a 3.3V or 5V power supply without a resistor?
A: No, connecting the LED directly to a power supply without a resistor will likely damage the LED due to excessive current.

Q: How do I know the polarity of the LED if the leads are trimmed?
A: Look for a flat edge on the LED casing near the cathode or check the internal structure of the LED. The larger internal element is typically the cathode.

Q: Can I use the LED with a higher current for increased brightness?
A: While the LED can handle up to 30mA, it is recommended to operate it at 20mA to ensure longevity and prevent overheating.

By following these guidelines, you can effectively use the Lina Red LED (Part ID: 1) in your projects and ensure reliable performance.
