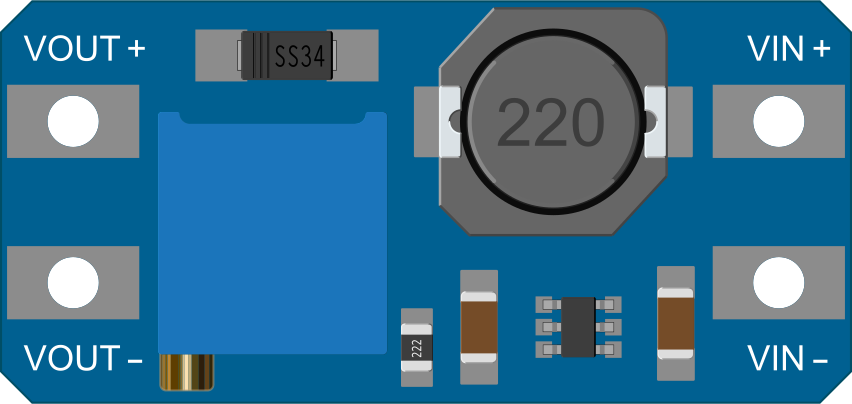

Image of MT3608
Cirkit Designer LogoDesign with MT3608 in Cirkit Designer

Introduction

The MT3608 is a high-efficiency step-up (boost) DC-DC converter designed to increase an input voltage to a higher output voltage. It is widely used in applications where a stable, higher voltage is required from a lower voltage source, such as in battery-powered devices. The MT3608 is compact, cost-effective, and highly efficient, making it a popular choice for powering LEDs, sensors, microcontrollers, and other electronic components.

Explore Projects Built with MT3608

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Controlled Bluetooth Robotic Vehicle with MT3608 Boost Converters and L298N Motor Drivers
Image of Copy of Diagrama Elétrico - AutoBots (1): A project utilizing MT3608 in a practical application
This circuit is designed to control multiple DC motors and a servo motor using an ESP32 microcontroller, which is interfaced with Bluetooth for wireless control commands. The ESP32 outputs control signals to two L298N motor drivers, which in turn drive the DC motors. The MT3608 modules are used to step up the voltage from a 4 x AAA battery mount to power the motor drivers, while the servo motor is directly controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing MT3608 in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Powered Obstacle Avoidance Robot with IR and Ultrasonic Sensors
Image of projcememek: A project utilizing MT3608 in a practical application
This circuit features a 18650 Li-Ion battery connected to a TP4056 charging module, which in turn is connected to an MT3608 boost converter to step up the voltage. The output of the MT3608 powers an ESP32 microcontroller, a TCRT 5000 IR sensor, an HC-SR04 ultrasonic sensor, and an MG996R servo motor. The ESP32 is configured to control the servo motor via GPIO 27 and to receive input signals from the IR sensor and ultrasonic sensor through GPIO 14 and GPIO 13, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled Traffic Light and DC Motors with MT3608 Boost Converters
Image of Diagrama Elétrico - AutoBots: A project utilizing MT3608 in a practical application
This circuit is designed to control a traffic light and multiple DC motors using an ESP32 microcontroller. The ESP32's GPIO pins are connected to the traffic light to control the green, yellow, and red LEDs, and to the L298N motor drivers for controlling the speed and direction of the DC motors. The MT3608 modules are used to step up the voltage from the AAA batteries to power the motor drivers, and the MG996R servo is controlled by the ESP32 for additional actuation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with MT3608

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Copy of Diagrama Elétrico - AutoBots (1): A project utilizing MT3608 in a practical application
ESP32-Controlled Bluetooth Robotic Vehicle with MT3608 Boost Converters and L298N Motor Drivers
This circuit is designed to control multiple DC motors and a servo motor using an ESP32 microcontroller, which is interfaced with Bluetooth for wireless control commands. The ESP32 outputs control signals to two L298N motor drivers, which in turn drive the DC motors. The MT3608 modules are used to step up the voltage from a 4 x AAA battery mount to power the motor drivers, while the servo motor is directly controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of solar system router ups: A project utilizing MT3608 in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of projcememek: A project utilizing MT3608 in a practical application
ESP32-Powered Obstacle Avoidance Robot with IR and Ultrasonic Sensors
This circuit features a 18650 Li-Ion battery connected to a TP4056 charging module, which in turn is connected to an MT3608 boost converter to step up the voltage. The output of the MT3608 powers an ESP32 microcontroller, a TCRT 5000 IR sensor, an HC-SR04 ultrasonic sensor, and an MG996R servo motor. The ESP32 is configured to control the servo motor via GPIO 27 and to receive input signals from the IR sensor and ultrasonic sensor through GPIO 14 and GPIO 13, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Diagrama Elétrico - AutoBots: A project utilizing MT3608 in a practical application
ESP32-Controlled Traffic Light and DC Motors with MT3608 Boost Converters
This circuit is designed to control a traffic light and multiple DC motors using an ESP32 microcontroller. The ESP32's GPIO pins are connected to the traffic light to control the green, yellow, and red LEDs, and to the L298N motor drivers for controlling the speed and direction of the DC motors. The MT3608 modules are used to step up the voltage from the AAA batteries to power the motor drivers, and the MG996R servo is controlled by the ESP32 for additional actuation tasks.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering LEDs and LED strips
  • Boosting voltage for microcontrollers and sensors
  • Battery-powered devices (e.g., lithium-ion or alkaline batteries)
  • Portable electronics
  • DIY electronics projects

Technical Specifications

The MT3608 is available as an integrated circuit (IC) or as a pre-assembled module. Below are the key technical details:

Key Specifications

Parameter Value
Input Voltage Range 2V to 24V
Output Voltage Range Up to 28V (adjustable via potentiometer)
Maximum Output Current 2A (dependent on input voltage and load)
Efficiency Up to 93%
Switching Frequency 1.2 MHz
Operating Temperature -40°C to +85°C

Pin Configuration (IC Version)

Pin Number Pin Name Description
1 SW Switching node (connect to inductor)
2 GND Ground
3 FB Feedback pin (voltage regulation)
4 EN Enable pin (active high)
5 VIN Input voltage
6 VOUT Output voltage

Pin Configuration (Module Version)

Pin Name Description
VIN+ Positive input voltage
VIN- Negative input voltage (ground)
VOUT+ Positive output voltage
VOUT- Negative output voltage (ground)

Usage Instructions

How to Use the MT3608 in a Circuit

  1. Connect the Input Voltage:

    • Attach the positive terminal of your power source to the VIN+ pin.
    • Connect the negative terminal of your power source to the VIN- pin.
    • Ensure the input voltage is within the range of 2V to 24V.
  2. Connect the Output Voltage:

    • Attach the load (e.g., LED, sensor, or microcontroller) to the VOUT+ and VOUT- pins.
    • Use a multimeter to measure the output voltage.
  3. Adjust the Output Voltage:

    • Rotate the onboard potentiometer clockwise to increase the output voltage or counterclockwise to decrease it.
    • Be cautious not to exceed the voltage rating of your load.
  4. Add External Components (if using the IC version):

    • Connect an inductor (e.g., 4.7 µH to 22 µH) between the SW pin and the input voltage.
    • Add input and output capacitors (e.g., 10 µF to 22 µF) for stability.

Important Considerations

  • Heat Dissipation: The MT3608 can generate heat under high loads. Ensure proper ventilation or add a heatsink if necessary.
  • Current Limitation: The maximum output current depends on the input voltage and load. Avoid exceeding 2A to prevent damage.
  • Voltage Adjustment: Always measure the output voltage with a multimeter before connecting sensitive components.
  • Polarity: Double-check the polarity of all connections to avoid damaging the module.

Example: Using MT3608 with Arduino UNO

The MT3608 can be used to power an Arduino UNO from a lower voltage source, such as a 3.7V lithium-ion battery. Below is an example setup:

  1. Connect the battery's positive terminal to VIN+ and the negative terminal to VIN-.
  2. Adjust the output voltage to 5V using the potentiometer.
  3. Connect VOUT+ to the Arduino's 5V pin and VOUT- to the GND pin.

Arduino Code Example

// Example code to blink an LED using Arduino UNO powered by MT3608
// Ensure the MT3608 output is set to 5V before connecting to the Arduino

int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. No Output Voltage:

    • Check the input voltage and ensure it is within the 2V to 24V range.
    • Verify all connections and ensure proper polarity.
    • Inspect the potentiometer and adjust it to the desired output voltage.
  2. Overheating:

    • Ensure the load does not exceed the maximum current rating (2A).
    • Add a heatsink or improve ventilation if necessary.
  3. Output Voltage Fluctuations:

    • Add input and output capacitors (e.g., 10 µF to 22 µF) to stabilize the voltage.
    • Check for loose connections or damaged components.
  4. Cannot Adjust Output Voltage:

    • Verify that the potentiometer is functioning correctly.
    • Ensure the feedback pin (FB) is properly connected (if using the IC version).

FAQs

Q: Can the MT3608 step down voltage?
A: No, the MT3608 is a step-up (boost) converter and cannot step down voltage. Use a buck converter for step-down applications.

Q: What is the maximum output voltage of the MT3608?
A: The MT3608 can output up to 28V, but ensure the load can handle the voltage.

Q: Can I use the MT3608 with a solar panel?
A: Yes, as long as the solar panel's output voltage is within the 2V to 24V range and provides sufficient current for your application.

Q: Is the MT3608 suitable for audio applications?
A: The MT3608 may introduce noise due to its switching frequency, so it may not be ideal for sensitive audio circuits without additional filtering.

By following this documentation, you can effectively use the MT3608 in your projects and troubleshoot common issues.
