How to Use driver droite: Examples, Pinouts, and Specs

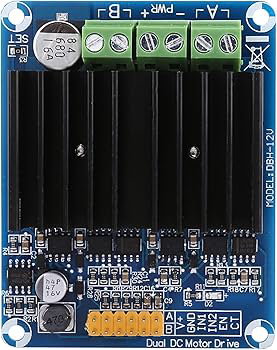

Image of driver droiteDesign with driver droite in Cirkit Designer

Introduction

A driver droite is a type of electronic component designed to control the direction of current flow in a circuit. It is commonly used in applications requiring precise control of motors or actuators, such as robotics, automated systems, and industrial machinery. By enabling bidirectional current flow, the driver droite allows for the control of motor direction, making it an essential component in motor driver circuits.

Explore Projects Built with driver droite

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

Common Applications:

Technical Specifications

Below are the key technical details of a typical driver droite:

Parameter Value
Operating Voltage 5V to 36V
Maximum Output Current 2A per channel
Control Logic Voltage 3.3V or 5V (logic-level compatible)
PWM Frequency Up to 20 kHz
Thermal Protection Yes
Direction Control Pins 2 (IN1, IN2)
Enable Pin 1 (EN)

Pin Configuration and Descriptions

The driver droite typically has the following pin configuration:

Pin Name Description
VCC Power supply input for the driver (5V to 36V).
GND Ground connection.
IN1 Input pin to control the direction of current flow (logic HIGH or LOW).
IN2 Input pin to control the opposite direction of current flow (logic HIGH or LOW).
EN Enable pin to activate the driver (logic HIGH to enable, LOW to disable).
OUT1 Output pin connected to one terminal of the motor or load.
OUT2 Output pin connected to the other terminal of the motor or load.

Usage Instructions

How to Use the Driver Droite in a Circuit

  1. Power Supply: Connect the VCC pin to a power source within the operating voltage range (e.g., 12V for a DC motor). Connect the GND pin to the ground of the circuit.
  2. Motor Connection: Connect the motor terminals to the OUT1 and OUT2 pins.
  3. Control Pins:
    • Use IN1 and IN2 to control the direction of the motor:
      • IN1 HIGH and IN2 LOW: Motor rotates in one direction.
      • IN1 LOW and IN2 HIGH: Motor rotates in the opposite direction.
      • Both LOW: Motor stops.
    • Use the EN pin to enable or disable the driver.
  4. PWM Control: To control motor speed, apply a PWM signal to the EN pin.

Important Considerations

Example: Connecting to an Arduino UNO

Below is an example of how to control a motor using the driver droite and an Arduino UNO:

// Define pin connections for the driver droite
const int IN1 = 9;  // IN1 pin connected to Arduino digital pin 9
const int IN2 = 10; // IN2 pin connected to Arduino digital pin 10
const int EN = 11;  // EN pin connected to Arduino PWM pin 11

void setup() {
  // Set the driver pins as outputs
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  pinMode(EN, OUTPUT);
}

void loop() {
  // Rotate motor in one direction
  digitalWrite(IN1, HIGH); // Set IN1 HIGH
  digitalWrite(IN2, LOW);  // Set IN2 LOW
  analogWrite(EN, 128);    // Set motor speed to 50% (PWM value: 128)
  delay(2000);             // Run for 2 seconds

  // Stop the motor
  digitalWrite(IN1, LOW);  // Set IN1 LOW
  digitalWrite(IN2, LOW);  // Set IN2 LOW
  analogWrite(EN, 0);      // Disable motor
  delay(1000);             // Wait for 1 second

  // Rotate motor in the opposite direction
  digitalWrite(IN1, LOW);  // Set IN1 LOW
  digitalWrite(IN2, HIGH); // Set IN2 HIGH
  analogWrite(EN, 128);    // Set motor speed to 50% (PWM value: 128)
  delay(2000);             // Run for 2 seconds

  // Stop the motor
  digitalWrite(IN1, LOW);  // Set IN1 LOW
  digitalWrite(IN2, LOW);  // Set IN2 LOW
  analogWrite(EN, 0);      // Disable motor
  delay(1000);             // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues

  1. Motor Not Rotating:

    • Check the power supply voltage and ensure it matches the motor's requirements.
    • Verify the connections to the IN1, IN2, and EN pins.
    • Ensure the EN pin is set HIGH or receiving a valid PWM signal.
  2. Overheating:

    • Ensure the driver is not exceeding its maximum current rating.
    • Use a heat sink or cooling fan if necessary.
  3. Motor Rotates in Only One Direction:

    • Verify the logic levels on IN1 and IN2.
    • Check for loose or incorrect wiring.
  4. Arduino Not Controlling the Driver:

    • Ensure the Arduino's logic voltage (3.3V or 5V) is compatible with the driver.
    • Confirm that the Arduino pins are correctly configured as outputs.

FAQs

Q: Can I use the driver droite with a stepper motor?
A: No, the driver droite is designed for DC motors or actuators. For stepper motors, use a dedicated stepper motor driver.

Q: What happens if both IN1 and IN2 are HIGH?
A: This configuration typically results in a braking effect, where the motor stops abruptly.

Q: Can I control multiple motors with one driver droite?
A: No, a single driver droite is designed to control one motor. For multiple motors, use additional drivers.

Q: Is the driver droite compatible with Raspberry Pi?
A: Yes, as long as the logic voltage levels (3.3V) are compatible with the driver's control pins. Use level shifters if necessary.
