How to Use SIM800L: Examples, Pinouts, and Specs

The SIM800L is a compact GSM/GPRS module manufactured by SIMCom. It enables communication over cellular networks, supporting functionalities such as SMS, voice calls, and data transmission. With its small form factor and low power consumption, the SIM800L is widely used in IoT applications, remote monitoring systems, and embedded projects requiring cellular connectivity.

• Internet of Things (IoT) devices
• Remote monitoring and control systems
• GPS tracking systems
• Home automation
• SMS-based alert systems
• Voice communication in embedded systems

The SIM800L module is designed to operate efficiently in a variety of environments. Below are its key technical details:

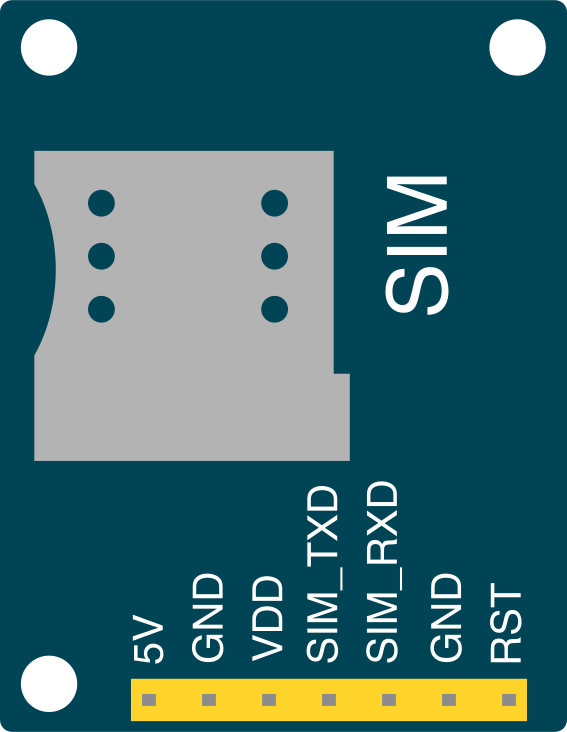

The SIM800L module has a total of 12 pins. Below is the pinout and description:

1. Power Supply:

   • The SIM800L requires a stable power supply of 4.0V. Use a low-dropout (LDO) regulator or a DC-DC converter to step down from a higher voltage source (e.g., 5V or 12V).
   • Ensure the power supply can handle peak currents of up to 2A during GSM transmission.

2. Connecting to a Microcontroller:

   • Connect the TXD pin of the SIM800L to the RX pin of the microcontroller.
   • Connect the RXD pin of the SIM800L to the TX pin of the microcontroller.
   • Use a voltage divider or level shifter if the microcontroller operates at 5V logic levels, as the SIM800L operates at 3.3V logic.

3. Antenna:

   • Attach an external GSM antenna to the module's antenna connector for reliable network connectivity.

4. SIM Card:

   • Insert a micro SIM card into the SIM card slot. Ensure the SIM card is activated and has sufficient balance for SMS, calls, or data usage.

5. Reset and Sleep Mode:

   • Use the RST pin to reset the module if needed.
   • The DTR pin can be used to enable sleep mode for power-saving applications.

Below is an example of how to send an SMS using the SIM800L module and an Arduino UNO:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial SIM800L(10, 11); // RX = Pin 10, TX = Pin 11

void setup() {
  // Initialize serial communication
  Serial.begin(9600); // For debugging
  SIM800L.begin(9600); // For SIM800L communication

  // Wait for the module to initialize
  delay(1000);
  Serial.println("Initializing SIM800L...");

  // Send AT command to check communication
  SIM800L.println("AT");
  delay(1000);
  if (SIM800L.available()) {
    Serial.println("SIM800L is ready!");
  } else {
    Serial.println("Failed to communicate with SIM800L.");
  }

  // Send SMS
  sendSMS("+1234567890", "Hello from SIM800L!");
}

void loop() {
  // Nothing to do in the loop
}

void sendSMS(String phoneNumber, String message) {
  // Set SMS mode to text
  SIM800L.println("AT+CMGF=1");
  delay(1000);

  // Set recipient phone number
  SIM800L.print("AT+CMGS=\"");
  SIM800L.print(phoneNumber);
  SIM800L.println("\"");
  delay(1000);

  // Send the message
  SIM800L.print(message);
  delay(1000);

  // End the message with Ctrl+Z (ASCII 26)
  SIM800L.write(26);
  delay(5000);

  Serial.println("SMS sent!");
}

• Use decoupling capacitors (e.g., 100µF and 10µF) near the power supply pins to stabilize the voltage.
• Ensure the antenna is securely connected to avoid signal loss.
• Avoid using the module in areas with poor GSM signal strength, as it may increase power consumption.

1. Module Not Responding to AT Commands:

   • Ensure the power supply is stable and provides sufficient current (up to 2A).
   • Verify the RX and TX connections between the module and the microcontroller.
   • Check the baud rate settings (default is 9600 bps).

2. SIM Card Not Detected:

   • Ensure the SIM card is properly inserted and activated.
   • Check if the SIM card slot is clean and free of debris.

3. No Network Connectivity:

   • Verify that the antenna is securely connected.
   • Check if the SIM card has sufficient balance or an active data plan.
   • Ensure the module is operating in a location with good GSM signal strength.

4. High Power Consumption:

   • Use sleep mode to reduce power consumption during idle periods.
   • Ensure the power supply is efficient and capable of handling peak currents.

Q1: Can the SIM800L work with a 5V power supply?
A1: No, the SIM800L requires a power supply in the range of 3.4V to 4.4V. Use a voltage regulator to step down from 5V.

Q2: What is the default baud rate of the SIM800L?
A2: The default baud rate is 9600 bps, but it can be configured using AT commands.

Q3: Can the SIM800L be used for GPS tracking?
A3: The SIM800L does not have built-in GPS functionality. However, it can be paired with a GPS module to send location data over GSM.

Q4: How do I update the firmware of the SIM800L?
A4: Firmware updates can be performed using the UART interface and SIMCom's firmware update tools. Refer to the manufacturer's documentation for detailed instructions.
