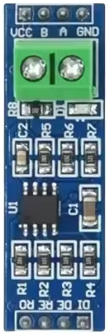

Design with MAX 485 TTL LOGIC CONVERTER 5V in Cirkit DesignerThe MAX485 TTL Logic Converter is a low-power, high-speed transceiver designed for RS-485 and RS-422 communication. It is capable of converting TTL logic levels to differential signals, making it ideal for long-distance data transmission. This component is widely used in industrial automation, remote sensing, and communication systems due to its robust design and efficient operation.
This circuit features a Wemos D1 Mini microcontroller interfaced with a Bi-Directional Logic Level Converter to facilitate communication with a 5V RX/TX module. The level converter ensures proper voltage translation between the 3.3V logic of the Wemos D1 Mini and the 5V logic of the RX/TX module.
Open Project in Cirkit Designer
This circuit integrates a microcontroller with a display, digital potentiometer, IO expander, and opto-isolator board for signal interfacing and isolation. It includes a UART to RS485 converter for serial communication and a power converter to step down voltage for the system. The circuit is designed for control and communication in an isolated and protected environment.
Open Project in Cirkit Designer
This circuit is designed to interface with multiple MAX6675 thermocouple-to-digital converter modules using an Arduino Mega 2560 as the central processing unit. The Arduino reads temperature data from the MAX6675 modules over a shared SPI bus, with individual chip select (CS) lines for each module to enable multiplexing. The circuit is likely used for monitoring multiple temperature points, possibly in an industrial setting where precise temperature control and monitoring are critical.
Open Project in Cirkit Designer
This circuit features an Arduino UNO microcontroller interfaced with a 4-channel relay module and a UART TTL to RS485 converter. The Arduino controls the relays via digital pins and communicates with the RS485 converter for serial communication, enabling control of external devices and communication over long distances.
Open Project in Cirkit DesignerThe MAX485 is designed to operate efficiently in a variety of environments. Below are its key technical details:
| Parameter | Value |
|---|---|
| Supply Voltage (Vcc) | 4.75V to 5.25V |
| Logic Input Levels | TTL compatible |
| Data Rate | Up to 2.5 Mbps |
| Driver Output Voltage | ±7V (differential) |
| Receiver Input Voltage | ±12V |
| Operating Temperature | -40°C to +85°C |
| Power Consumption | Low power (300 µA in shutdown mode) |
The MAX485 is an 8-pin IC with the following pinout:
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | RO | Receiver Output: Outputs the received data (TTL logic level). |
| 2 | RE̅ | Receiver Enable: Active low. Enables the receiver when pulled low. |
| 3 | DE | Driver Enable: Active high. Enables the driver when pulled high. |
| 4 | DI | Driver Input: Accepts TTL logic level data to be transmitted. |
| 5 | GND | Ground: Connect to the system ground. |
| 6 | A | Non-inverting Driver Output / Receiver Input (RS-485 differential signal). |
| 7 | B | Inverting Driver Output / Receiver Input (RS-485 differential signal). |
| 8 | Vcc | Power Supply: Connect to a 5V DC power source. |
The MAX485 is straightforward to use in RS-485 communication systems. Below are the steps and considerations for integrating it into your circuit:
Below is an example of how to use the MAX485 with an Arduino UNO for RS-485 communication:
// Include the SoftwareSerial library for serial communication
#include <SoftwareSerial.h>
// Define MAX485 control pins
#define MAX485_DE 4
#define MAX485_RE 4
// Define RX and TX pins for SoftwareSerial
#define RX 2
#define TX 3
// Create a SoftwareSerial object
SoftwareSerial RS485Serial(RX, TX);
void setup() {
// Initialize the control pins
pinMode(MAX485_DE, OUTPUT);
pinMode(MAX485_RE, OUTPUT);
// Set the MAX485 to receive mode initially
digitalWrite(MAX485_DE, LOW);
digitalWrite(MAX485_RE, LOW);
// Start the serial communication
RS485Serial.begin(9600);
Serial.begin(9600);
}
void loop() {
// Example: Sending data over RS-485
digitalWrite(MAX485_DE, HIGH); // Enable driver
digitalWrite(MAX485_RE, HIGH); // Disable receiver
RS485Serial.println("Hello, RS-485!"); // Send data
delay(1000); // Wait for 1 second
// Example: Receiving data over RS-485
digitalWrite(MAX485_DE, LOW); // Disable driver
digitalWrite(MAX485_RE, LOW); // Enable receiver
if (RS485Serial.available()) {
String receivedData = RS485Serial.readString();
Serial.println("Received: " + receivedData); // Print received data
}
}
No Communication Between Devices:
Data Corruption or Noise:
Overheating of the MAX485:
Q1: Can the MAX485 be used for full-duplex communication?
A1: No, the MAX485 is designed for half-duplex communication. For full-duplex, consider using a dedicated RS-422 transceiver.
Q2: What is the maximum cable length supported by the MAX485?
A2: The RS-485 standard supports cable lengths up to 1200 meters at lower data rates. However, the actual distance depends on factors like cable quality and noise.
Q3: Can I use the MAX485 with a 3.3V microcontroller?
A3: The MAX485 requires a 5V power supply, but its TTL logic levels are compatible with 3.3V microcontrollers. Use level shifters if needed for proper interfacing.
By following this documentation, you can effectively integrate the MAX485 into your RS-485 communication projects.
