How to Use 6V 7Ah Gel Battery: Examples, Pinouts, and Specs

Introduction

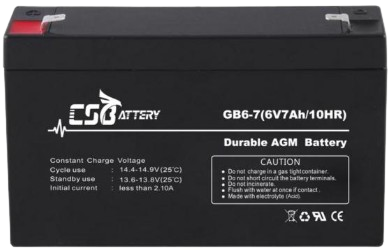

The 6V 7Ah Gel Battery is a sealed lead-acid (SLA) battery designed for deep cycle applications. It provides a nominal voltage of 6 volts and a capacity of 7 amp-hours (Ah). This maintenance-free battery uses gel electrolyte technology, which ensures reliable performance, long service life, and enhanced safety. Its sealed design prevents leaks and allows for operation in various orientations.

Explore Projects Built with 6V 7Ah Gel Battery

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

12V Battery-Powered Fan System

This circuit connects a 120mm 12V DC fan to a 12V 7Ah battery. The fan's positive and negative terminals are directly connected to the corresponding positive and negative terminals of the battery, allowing the fan to operate at its rated voltage.

Open Project in Cirkit Designer

Solar-Powered Environmental Monitoring System with ESP32-C3 and MPPT Charge Control

This circuit is designed for solar energy management and monitoring. It includes a 12V AGM battery charged by solar panels through an MPPT charge controller, with voltage monitoring provided by an INA3221 sensor. Additionally, a 3.7V battery is connected to an ESP32-C3 microcontroller and an AHT21 sensor for environmental data collection, with power management handled by a Waveshare Solar Manager.

Open Project in Cirkit Designer

Solar-Powered ESP32 IoT Device with Battery Backup

This circuit is designed to charge a 12v 7ah battery using a solar panel, with a charge controller managing the charging process to ensure safe operation. A voltage regulator is used to provide a stable 3.3V output, which is likely used to power an ESP-WROOM-32 microcontroller module. Capacitors are included for voltage smoothing and noise reduction on the power supply lines.

Open Project in Cirkit Designer

Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator

This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.

Open Project in Cirkit Designer

Common Applications and Use Cases

• Uninterruptible Power Supplies (UPS)
• Emergency lighting systems
• Solar power storage
• Electric scooters and wheelchairs
• Alarm and security systems
• Portable electronic devices and tools

Technical Specifications

Below are the key technical details and pin configuration for the 6V 7Ah Gel Battery:

Key Technical Details

Pin Configuration and Descriptions

The 6V 7Ah Gel Battery typically has two terminals: a positive terminal and a negative terminal. These terminals are used for charging and discharging the battery.

Usage Instructions

How to Use the Component in a Circuit

1. Connecting the Battery:

   • Identify the positive (+) and negative (-) terminals on the battery.
   • Use appropriate connectors (e.g., Faston tabs) to securely attach wires to the terminals.
   • Ensure the polarity is correct when connecting the battery to a load or charger.

2. Charging the Battery:

   • Use a compatible SLA battery charger with a constant voltage and current-limiting feature.
   • Set the charger to the recommended charging voltage (7.2V - 7.5V for cyclic use or 6.75V - 6.9V for float use).
   • Avoid overcharging, as it can damage the battery and reduce its lifespan.

3. Discharging the Battery:

   • Ensure the load does not exceed the maximum discharge current (105A for 5 seconds).
   • Avoid deep discharges below 5.25V, as this can permanently damage the battery.

4. Mounting and Orientation:

   • The battery can be mounted in any orientation due to its sealed design.
   • Avoid placing the battery near heat sources or in environments with high humidity.

Important Considerations and Best Practices

• Ventilation: Although the battery is sealed, ensure proper ventilation to prevent heat buildup during charging or discharging.
• Storage: Store the battery in a cool, dry place when not in use. Recharge the battery every 6 months to prevent self-discharge.
• Safety: Do not short-circuit the terminals, puncture the casing, or expose the battery to fire or water.
• Wiring: Use wires with appropriate gauge ratings to handle the current without overheating.

Example: Connecting to an Arduino UNO

The 6V 7Ah Gel Battery can be used to power an Arduino UNO via a voltage regulator (e.g., LM7805) to step down the voltage to 5V. Below is an example circuit and code:

Circuit Setup

1. Connect the positive terminal of the battery to the input pin of the LM7805 regulator.
2. Connect the negative terminal of the battery to the ground pin of the LM7805.
3. Connect the output pin of the LM7805 to the 5V pin of the Arduino UNO.
4. Connect the ground pin of the LM7805 to the GND pin of the Arduino UNO.

Arduino Code Example

// Example code to blink an LED using an Arduino UNO powered by a 6V 7Ah Gel Battery

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

FAQs

1. Can I use a standard car battery charger for this battery?

   • No, car battery chargers typically provide higher currents and voltages, which can damage the 6V 7Ah Gel Battery. Use a charger specifically designed for SLA batteries.

2. How long does it take to fully charge the battery?

   • Charging time depends on the charger's current rating. For example, a 1A charger will take approximately 7-8 hours to fully charge the battery.

3. Can I connect multiple batteries in series or parallel?

   • Yes, you can connect multiple batteries in series to increase voltage or in parallel to increase capacity. Ensure all batteries are of the same type and charge level.

4. What is the expected lifespan of this battery?

   • The battery typically lasts for 3-5 years or ~500 cycles, depending on usage and maintenance.

By following this documentation, you can safely and effectively use the 6V 7Ah Gel Battery in your projects and applications.
