How to Use RELAY SRD-05VDC-SL-C: Examples, Pinouts, and Specs

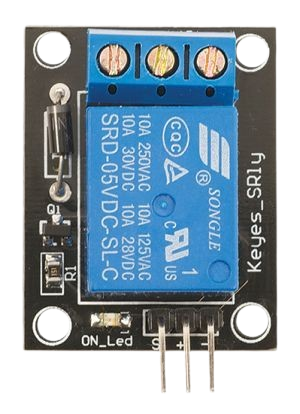

The RELAY SRD-05VDC-SL-C is a 5V DC relay module designed for switching high-voltage devices using low-voltage control signals. It features a Single Pole Double Throw (SPDT) configuration, making it versatile for controlling a wide range of electrical loads, such as lights, motors, and appliances. This relay is commonly used in automation systems, home appliances, and microcontroller-based projects.

• Home automation systems
• Motor control circuits
• IoT projects for controlling high-power devices
• Industrial automation
• Smart home devices

The following table outlines the key technical details of the RELAY SRD-05VDC-SL-C:

The RELAY SRD-05VDC-SL-C has 5 pins, as described in the table below:

1. Power the Relay: Connect the VCC pin to a 5V DC power source and the GND pin to ground.
2. Control Signal: Connect the IN pin to a microcontroller (e.g., Arduino) or any other control circuit. The relay will activate when the IN pin receives a HIGH signal (typically 5V).
3. Load Connection:
   • Connect the device you want to control (e.g., a light bulb or motor) to the COM and NO terminals if you want the device to turn on when the relay is activated.
   • Use the COM and NC terminals if you want the device to turn off when the relay is activated.
4. Isolation: Ensure proper electrical isolation between the control circuit and the high-voltage load to prevent damage or hazards.

• Flyback Diode: If you're using an inductive load (e.g., a motor), add a flyback diode across the load to protect the relay from voltage spikes.
• Power Supply: Ensure the power supply can provide sufficient current (15-20 mA) to energize the relay coil.
• Safety: When switching high-voltage loads, ensure proper insulation and avoid direct contact with live wires.

Below is an example of how to control the RELAY SRD-05VDC-SL-C using an Arduino UNO:

• Connect the relay module's VCC pin to the Arduino's 5V pin.
• Connect the relay module's GND pin to the Arduino's GND pin.
• Connect the relay module's IN pin to Arduino digital pin 7.
• Connect the load (e.g., a light bulb) to the COM and NO terminals of the relay.

// Define the relay control pin
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);

  // Ensure the relay is off initially
  digitalWrite(relayPin, LOW);
}

void loop() {
  // Turn the relay ON (activates the connected device)
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the relay ON for 5 seconds

  // Turn the relay OFF (deactivates the connected device)
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the relay OFF for 5 seconds
}

1. Relay Not Activating:

   • Cause: Insufficient voltage or current to the IN pin.
   • Solution: Ensure the control signal is 5V and the power supply can provide at least 15-20 mA.

2. Load Not Switching:

   • Cause: Incorrect wiring of the load to the relay terminals.
   • Solution: Verify the load is connected to the correct terminals (COM and NO/NC).

3. Relay Stuck in One State:

   • Cause: Damaged relay contacts due to overcurrent or voltage.
   • Solution: Ensure the load does not exceed the relay's maximum ratings (10A, 250V AC).

4. Noise or Chattering:

   • Cause: Unstable control signal or insufficient power supply.
   • Solution: Use a stable power source and ensure proper grounding.

Q1: Can I use the RELAY SRD-05VDC-SL-C with a 3.3V microcontroller?
A1: The relay typically requires a 5V control signal. You may need a transistor or MOSFET to amplify the 3.3V signal to 5V.

Q2: Is the relay safe for switching high-power devices?
A2: Yes, as long as the device's voltage and current ratings do not exceed 250V AC or 10A.

Q3: Can I use this relay for DC loads?
A3: Yes, the relay supports DC loads up to 30V DC and 10A.

Q4: How do I know if the relay is working?
A4: When the relay is activated, you should hear a clicking sound, and the connected load should switch states.
