How to Use inmp441 microphone: Examples, Pinouts, and Specs

The INMP441 is a digital MEMS (Micro-Electro-Mechanical Systems) microphone designed for high-quality audio capture with low power consumption. It features an I2S (Inter-IC Sound) output interface, which allows for direct digital audio data transmission, eliminating the need for analog-to-digital conversion. This makes it an excellent choice for applications requiring clear and precise audio input.

• Smartphones and tablets
• Voice-controlled devices (e.g., smart speakers, IoT devices)
• Audio recording systems
• Noise-canceling systems
• Portable audio devices

The INMP441 microphone is designed to deliver high performance in a compact package. Below are its key technical details:

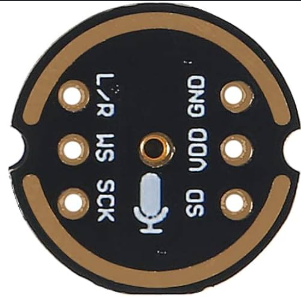

The INMP441 has a total of 7 pins. Below is the pinout and their respective functions:

The INMP441 microphone is straightforward to use in digital audio applications. Below are the steps and considerations for integrating it into a circuit.

1. Power Supply: Connect the VDD pin to a 1.8V to 3.3V power source and the GND pin to ground.
2. I2S Interface:
   • Connect the SCK pin to the I2S clock line of your microcontroller or audio processor.
   • Connect the WS pin to the I2S word select line.
   • Connect the SD pin to the I2S data input line of your microcontroller.
3. Channel Selection: Use the L/R pin to select the audio channel:
   • Connect to GND for the left channel.
   • Connect to VDD for the right channel.
4. Unused Pins: Leave the NC pin unconnected.

• Power Supply Decoupling: Place a 0.1 µF ceramic capacitor close to the VDD pin to reduce noise.
• I2S Configuration: Ensure your microcontroller or audio processor is configured for I2S communication with the correct clock and word select settings.
• Microphone Placement: Position the microphone away from noise sources (e.g., power supplies, high-frequency circuits) for optimal audio quality.
• PCB Design: Use a ground plane and minimize trace lengths for the I2S signals to reduce noise and signal degradation.

The Arduino UNO does not natively support I2S communication. However, you can use an external I2S interface module or a microcontroller like the ESP32, which has built-in I2S support. Below is an example of using the INMP441 with an ESP32:

#include <driver/i2s.h>

// I2S configuration for ESP32
#define I2S_NUM         I2S_NUM_0  // Use I2S port 0
#define I2S_WS          25         // Word Select pin
#define I2S_SCK         26         // Serial Clock pin
#define I2S_SD          22         // Serial Data pin

void setup() {
  // Configure I2S
  i2s_config_t i2s_config = {
    .mode = (i2s_mode_t)(I2S_MODE_MASTER | I2S_MODE_RX), // Master mode, receive data
    .sample_rate = 16000,                               // Sampling rate (16 kHz)
    .bits_per_sample = I2S_BITS_PER_SAMPLE_16BIT,       // 16-bit audio
    .channel_format = I2S_CHANNEL_FMT_ONLY_LEFT,        // Use left channel
    .communication_format = I2S_COMM_FORMAT_I2S,        // I2S format
    .intr_alloc_flags = ESP_INTR_FLAG_LEVEL1,           // Interrupt level
    .dma_buf_count = 8,                                 // Number of DMA buffers
    .dma_buf_len = 64                                   // Length of each DMA buffer
  };

  // Install and start I2S driver
  i2s_driver_install(I2S_NUM, &i2s_config, 0, NULL);

  // Configure I2S pins
  i2s_pin_config_t pin_config = {
    .bck_io_num = I2S_SCK,  // Serial Clock
    .ws_io_num = I2S_WS,    // Word Select
    .data_out_num = -1,     // Not used (output)
    .data_in_num = I2S_SD   // Serial Data (input)
  };
  i2s_set_pin(I2S_NUM, &pin_config);
}

void loop() {
  // Buffer to store audio data
  uint8_t audio_data[128];
  size_t bytes_read;

  // Read audio data from INMP441
  i2s_read(I2S_NUM, audio_data, sizeof(audio_data), &bytes_read, portMAX_DELAY);

  // Process audio data (e.g., send to a server, save to SD card, etc.)
}

1. No Audio Output:

   • Verify the I2S configuration on your microcontroller matches the INMP441's requirements.
   • Check the connections for the SCK, WS, and SD pins.
   • Ensure the L/R pin is correctly set for the desired channel.

2. Noise or Distorted Audio:

   • Add a decoupling capacitor (0.1 µF) near the VDD pin to reduce power supply noise.
   • Ensure the microphone is not placed near high-frequency noise sources.

3. Microphone Not Detected:

   • Confirm the power supply voltage is within the specified range (1.8V to 3.3V).
   • Check for loose or incorrect wiring.

Q: Can the INMP441 be used with 5V microcontrollers?
A: The INMP441 operates at 1.8V to 3.3V. If using a 5V microcontroller, level shifters are required for the I2S signals.

Q: Does the INMP441 support stereo audio?
A: Yes, you can use two INMP441 microphones and configure their L/R pins for left and right channels, respectively.

Q: What is the maximum sampling rate supported?
A: The INMP441 supports sampling rates up to 48 kHz, depending on the I2S configuration of your microcontroller.
