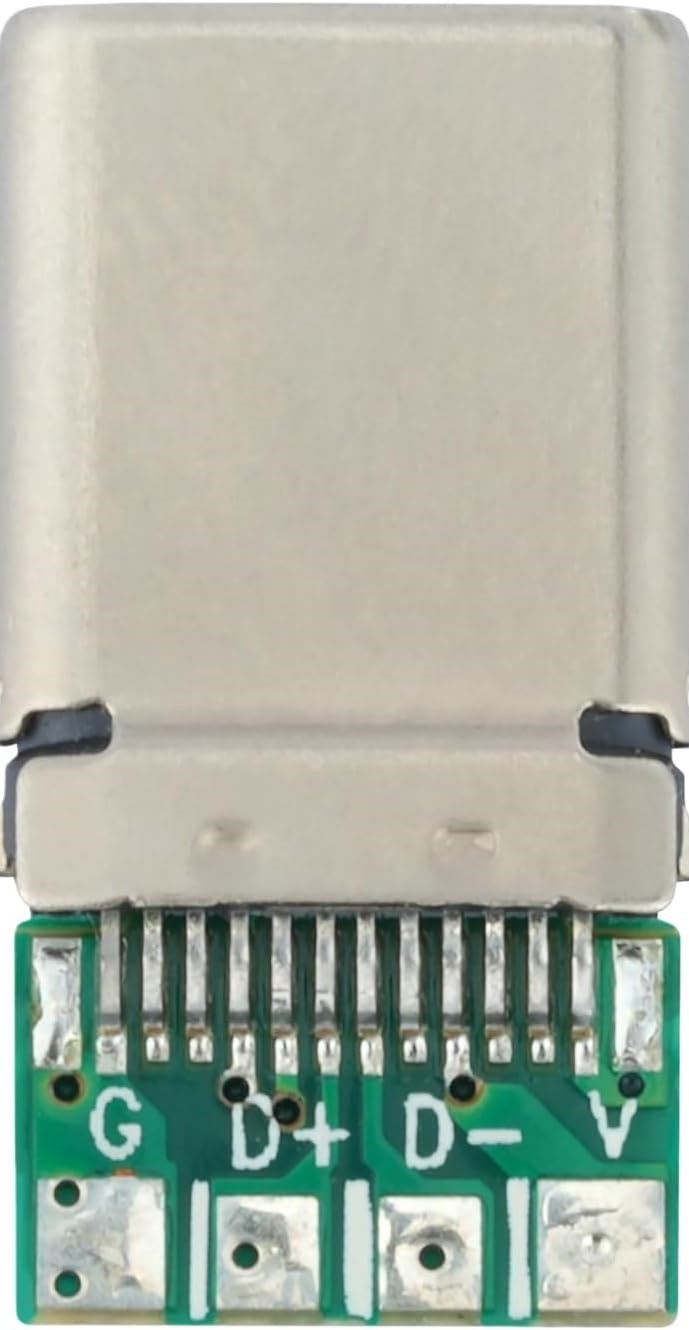

The USB Type-C male connector is a versatile and compact interface designed for data transfer and power delivery. Its reversible design eliminates the frustration of incorrect orientation during connection, making it user-friendly and efficient. This connector supports high-speed data transfer, video output, and power delivery, making it a popular choice for modern electronic devices.
Explore Projects Built with usb c male
Open Project in Cirkit Designer
Open Project in Cirkit Designer
Open Project in Cirkit Designer
Open Project in Cirkit DesignerExplore Projects Built with usb c male
Open Project in Cirkit DesignerOpen Project in Cirkit DesignerOpen Project in Cirkit DesignerOpen Project in Cirkit DesignerCommon Applications and Use Cases
- Charging and powering devices such as smartphones, laptops, and tablets
- High-speed data transfer between devices
- Video output for monitors and displays (e.g., USB-C to HDMI)
- Integration in embedded systems and development boards
- Use in USB-C hubs and docking stations
Technical Specifications
The USB Type-C male connector adheres to the USB 3.1/3.2 and USB Power Delivery (USB-PD) standards, offering robust performance for a wide range of applications.
Key Technical Details
| Parameter | Specification |
|---|---|
| Connector Type | USB Type-C Male |
| Data Transfer Rate | Up to 10 Gbps (USB 3.1 Gen 2) |
| Power Delivery | Up to 100W (20V, 5A) |
| Reversibility | Yes (can be plugged in either orientation) |
| Pin Count | 24 pins |
| Operating Temperature | -25°C to 85°C |
| Durability | 10,000+ mating cycles |
Pin Configuration and Descriptions
The USB Type-C male connector has 24 pins, which are symmetrically arranged to support its reversible design. Below is a simplified pinout table:
| Pin Number | Name | Description |
|---|---|---|
| A1, B1 | GND | Ground |
| A4, B4 | VBUS | Power supply (up to 20V, 5A) |
| A5, B5 | CC1, CC2 | Configuration channel for orientation and power delivery |
| A6, B6 | D+ | USB 2.0 differential pair (positive) |
| A7, B7 | D- | USB 2.0 differential pair (negative) |
| A8, B8 | SBU1, SBU2 | Sideband use |
| A2, A3, B2, B3 | TX/RX+/- | High-speed differential pairs for data transfer |
Usage Instructions
How to Use the USB Type-C Male Connector in a Circuit
- Soldering: Ensure proper alignment of the connector's pins with the PCB pads. Use a fine-tipped soldering iron and apply minimal heat to avoid damaging the connector.
- Power Delivery: If using USB-PD, connect the CC1 and CC2 pins to a USB-PD controller IC to negotiate power levels.
- Data Transfer: Connect the TX/RX differential pairs to the corresponding USB controller for high-speed data communication.
- Grounding: Ensure all GND pins are properly connected to the circuit's ground plane for stable operation.
- Shielding: Use proper shielding techniques to minimize electromagnetic interference (EMI).
Important Considerations and Best Practices
- Voltage and Current Ratings: Do not exceed the rated voltage (20V) and current (5A) to prevent damage.
- Reversible Design: Ensure your circuit design accounts for the reversible nature of the connector.
- Heat Management: For high-power applications, ensure adequate heat dissipation to avoid overheating.
- Testing: Verify all connections with a multimeter before powering the circuit.
Example: Connecting USB Type-C to Arduino UNO
While the Arduino UNO does not natively support USB Type-C, you can use a USB-C breakout board to interface with it. Below is an example of using USB-C for power delivery to the Arduino UNO:
// Example: Powering Arduino UNO via USB-C breakout board
// Ensure the USB-C breakout board's VBUS and GND pins are connected to the
// Arduino's VIN and GND pins, respectively. This allows the Arduino to be
// powered by a USB-C power source.
void setup() {
// No specific setup required for power delivery
}
void loop() {
// Your Arduino code here
}
Troubleshooting and FAQs
Common Issues
Connector Not Fitting Properly:
- Ensure the connector is aligned correctly with the port.
- Check for debris or damage in the connector or port.
No Power Delivery:
- Verify the VBUS and GND connections.
- Check the USB-C power source for compatibility and sufficient output.
Data Transfer Issues:
- Ensure the TX/RX differential pairs are correctly connected.
- Use high-quality cables to avoid signal degradation.
Overheating:
- Check for excessive current draw or insufficient heat dissipation.
FAQs
Q: Can I use the USB Type-C male connector for both power and data simultaneously?
A: Yes, the USB Type-C connector supports simultaneous power delivery and data transfer. Ensure proper pin connections and use a compatible USB-PD controller if required.
Q: Is the USB Type-C male connector backward compatible with older USB standards?
A: Yes, the USB Type-C connector can support USB 2.0, 3.0, and 3.1 standards, depending on the implementation.
Q: How do I ensure safe operation at high power levels?
A: Use a USB-PD controller IC to negotiate power levels and ensure proper heat dissipation in your circuit design.
Q: Can I use the USB Type-C male connector for video output?
A: Yes, the USB Type-C connector supports video output (e.g., DisplayPort Alt Mode) if your device and circuit are configured for it.
By following this documentation, you can effectively integrate the USB Type-C male connector into your projects for reliable power delivery and data transfer.
