How to Use Infrared Proximity Sensor: Examples, Pinouts, and Specs

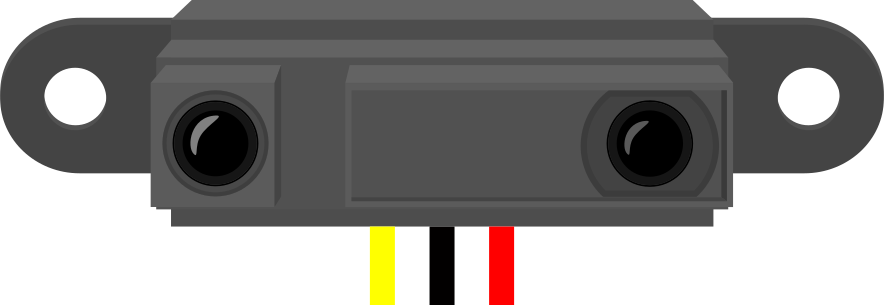

Image of Infrared Proximity Sensor
Cirkit Designer LogoDesign with Infrared Proximity Sensor in Cirkit Designer

Introduction

The Infrared Proximity Sensor is a device that detects the presence of nearby objects by emitting infrared (IR) light and measuring the reflected signal. It is widely used in applications such as obstacle detection, object tracking, and automation systems. This sensor is a key component in robotics, touchless interfaces, and smart devices, offering a reliable and cost-effective solution for proximity sensing.

Explore Projects Built with Infrared Proximity Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO R4 WiFi Infrared Proximity Sensor Interface
Image of Arduino_sharp: A project utilizing Infrared Proximity Sensor in a practical application
This circuit consists of an Arduino UNO R4 WiFi connected to an Infrared Proximity Sensor. The Arduino provides power to the sensor and reads its output voltage on analog pin A0. The embedded code on the Arduino is configured to blink an onboard LED connected to digital pin D13, turning it on and off every second, but this functionality is unrelated to the sensor's operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Infrared Proximity Sensing System
Image of ir sensor: A project utilizing Infrared Proximity Sensor in a practical application
This circuit features an ESP32 Wroom microcontroller connected to an Infrared Proximity Sensor. The ESP32's GPIO33 is interfaced with the sensor's output, allowing the microcontroller to read proximity data. The sensor is powered by the ESP32's 5V output, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Infrared Proximity Sensing System
Image of sds: A project utilizing Infrared Proximity Sensor in a practical application
This circuit integrates an Arduino UNO with an infrared proximity sensor. The sensor is powered by the Arduino's 5V output and its ground is connected to the Arduino's ground. The sensor's output voltage (Vout) is connected to digital pin D2 on the Arduino, allowing the microcontroller to read proximity data from the sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Based Infrared Proximity Sensor with I2C LCD Display
Image of Measure Distance With Analog IR Sensor: A project utilizing Infrared Proximity Sensor in a practical application
This circuit utilizes an Arduino UNO to interface with an infrared proximity sensor and a 16x2 I2C LCD display. The sensor measures distances based on reflected infrared light, and the Arduino processes this data to display the distance on the LCD while allowing for calibration through serial commands.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Infrared Proximity Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino_sharp: A project utilizing Infrared Proximity Sensor in a practical application
Arduino UNO R4 WiFi Infrared Proximity Sensor Interface
This circuit consists of an Arduino UNO R4 WiFi connected to an Infrared Proximity Sensor. The Arduino provides power to the sensor and reads its output voltage on analog pin A0. The embedded code on the Arduino is configured to blink an onboard LED connected to digital pin D13, turning it on and off every second, but this functionality is unrelated to the sensor's operation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ir sensor: A project utilizing Infrared Proximity Sensor in a practical application
ESP32-Based Infrared Proximity Sensing System
This circuit features an ESP32 Wroom microcontroller connected to an Infrared Proximity Sensor. The ESP32's GPIO33 is interfaced with the sensor's output, allowing the microcontroller to read proximity data. The sensor is powered by the ESP32's 5V output, and both devices share a common ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of sds: A project utilizing Infrared Proximity Sensor in a practical application
Arduino-Based Infrared Proximity Sensing System
This circuit integrates an Arduino UNO with an infrared proximity sensor. The sensor is powered by the Arduino's 5V output and its ground is connected to the Arduino's ground. The sensor's output voltage (Vout) is connected to digital pin D2 on the Arduino, allowing the microcontroller to read proximity data from the sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Measure Distance With Analog IR Sensor: A project utilizing Infrared Proximity Sensor in a practical application
Arduino-Based Infrared Proximity Sensor with I2C LCD Display
This circuit utilizes an Arduino UNO to interface with an infrared proximity sensor and a 16x2 I2C LCD display. The sensor measures distances based on reflected infrared light, and the Arduino processes this data to display the distance on the LCD while allowing for calibration through serial commands.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Obstacle detection in robotics
  • Automatic doors and touchless switches
  • Object tracking in conveyor systems
  • Gesture recognition in smart devices
  • Parking assistance systems in vehicles

Technical Specifications

Below are the key technical details of a typical Infrared Proximity Sensor:

Parameter Value
Operating Voltage 3.3V to 5V
Operating Current 20mA (typical)
Detection Range 2 cm to 30 cm (varies by model)
Output Type Digital (High/Low) or Analog
Wavelength of IR Light 850 nm to 950 nm
Response Time < 2 ms
Operating Temperature -10°C to 50°C

Pin Configuration

The Infrared Proximity Sensor typically has three or more pins. Below is a common pinout for a 3-pin sensor:

Pin Name Description
1 VCC Power supply pin (3.3V or 5V)
2 GND Ground connection
3 OUT Output pin (Digital or Analog signal based on model)

For sensors with additional pins (e.g., sensitivity adjustment or mode selection), refer to the specific datasheet.

Usage Instructions

How to Use the Infrared Proximity Sensor in a Circuit

  1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground.
  2. Connect the Output: Attach the OUT pin to a microcontroller input pin (e.g., Arduino) or directly to an LED/buzzer for basic testing.
  3. Adjust Sensitivity (if applicable): Some sensors have a potentiometer to adjust the detection range. Turn the potentiometer clockwise or counterclockwise to fine-tune the range.
  4. Read the Output:
    • For digital sensors, the OUT pin will output HIGH (1) when an object is detected and LOW (0) otherwise.
    • For analog sensors, the OUT pin will provide a voltage proportional to the distance of the object.

Important Considerations and Best Practices

  • Avoid Ambient IR Interference: Ensure the sensor is not exposed to strong ambient IR sources (e.g., sunlight) as it may affect accuracy.
  • Mounting Position: Place the sensor at an appropriate angle and height for optimal detection.
  • Power Supply Stability: Use a stable power source to avoid fluctuations in sensor performance.
  • Testing Range: Test the sensor's range in the intended environment to ensure it meets your application requirements.

Example: Connecting to an Arduino UNO

Below is an example of how to connect and use the Infrared Proximity Sensor with an Arduino UNO:

Circuit Diagram

  • Connect the sensor's VCC pin to the Arduino's 5V pin.
  • Connect the GND pin to the Arduino's GND pin.
  • Connect the OUT pin to Arduino digital pin 2.

Arduino Code

// Infrared Proximity Sensor Example with Arduino UNO
// This code reads the sensor's digital output and turns on an LED when an object
// is detected within the sensor's range.

const int sensorPin = 2;  // Sensor output connected to digital pin 2
const int ledPin = 13;    // Onboard LED pin

void setup() {
  pinMode(sensorPin, INPUT);  // Set sensor pin as input
  pinMode(ledPin, OUTPUT);    // Set LED pin as output
  Serial.begin(9600);         // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(sensorPin);  // Read the sensor's output

  if (sensorValue == HIGH) {
    // Object detected
    digitalWrite(ledPin, HIGH);  // Turn on the LED
    Serial.println("Object detected!");
  } else {
    // No object detected
    digitalWrite(ledPin, LOW);   // Turn off the LED
    Serial.println("No object detected.");
  }

  delay(100);  // Small delay for stability
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Sensor Not Detecting Objects

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check the connections and ensure the power supply matches the sensor's requirements.
  2. False Detections

    • Cause: Ambient IR interference or reflective surfaces.
    • Solution: Shield the sensor from direct sunlight and avoid using it near highly reflective objects.
  3. Short Detection Range

    • Cause: Sensitivity not adjusted properly.
    • Solution: Adjust the potentiometer (if available) to increase the detection range.
  4. Output Signal Fluctuates

    • Cause: Unstable power supply or electrical noise.
    • Solution: Use a decoupling capacitor (e.g., 0.1 µF) across the VCC and GND pins.

FAQs

Q: Can the sensor detect transparent objects?
A: Most Infrared Proximity Sensors struggle to detect transparent objects like glass due to low IR reflection. Use specialized sensors for such applications.

Q: What is the maximum detection range?
A: The detection range varies by model, typically between 2 cm and 30 cm. Check the datasheet for your specific sensor.

Q: Can I use this sensor outdoors?
A: While the sensor can work outdoors, strong sunlight may interfere with its performance. Consider using an IR filter or housing for better results.

Q: How do I know if my sensor is working?
A: Test the sensor by placing an object within its range and observing the output signal (e.g., LED or serial monitor).

This concludes the documentation for the Infrared Proximity Sensor.
