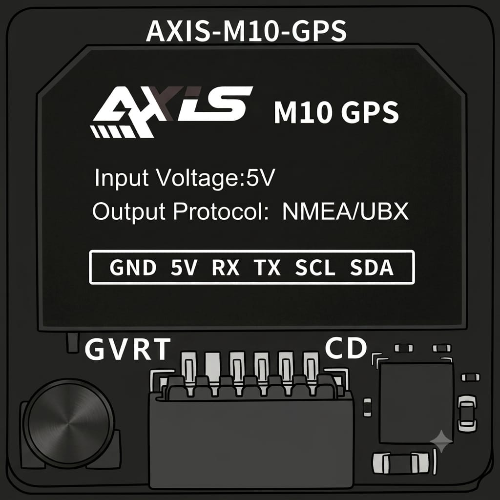

Image of GPS M10
Cirkit Designer LogoDesign with GPS M10 in Cirkit Designer

Introduction

The GPS M10 is a compact Global Positioning System (GPS) module designed to provide precise location data for a wide range of applications. It is equipped with a built-in antenna and supports multiple satellite systems, such as GPS, GLONASS, and Galileo, to ensure enhanced positioning accuracy and reliability. Its small form factor and low power consumption make it ideal for use in navigation, tracking, and IoT devices.

Explore Projects Built with GPS M10

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
Image of Yoon: A project utilizing GPS M10 in a practical application
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with OLED Display and Firebase Integration
Image of ecs: A project utilizing GPS M10 in a practical application
This circuit is a GPS tracking system that uses an ESP32 microcontroller to read location data from a NEO-6M GPS module and display information on a 0.96" OLED screen. The system is powered by a 2000mAh battery with a lithium-ion charger, and it uploads the GPS data to Firebase via WiFi. Additional components include an MPU6050 accelerometer/gyroscope for motion sensing and a buzzer for alerts.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano GPS Tracker with GSM and OLED Display
Image of Smart GPS Tracker: A project utilizing GPS M10 in a practical application
This circuit is a GPS tracking system that uses an Arduino Nano to interface with a SIM800L GSM module, a GPS NEO 6M module, and a 1.3-inch OLED display. The Arduino collects GPS data, displays it on the OLED screen, and sends the coordinates via SMS using the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered GPS Tracker with ESP32 and NEO 6M
Image of SeekPeek: A project utilizing GPS M10 in a practical application
This circuit is a GPS tracking system powered by a 3.7V battery, which is charged via a TP4056 module. The ESP32 Devkit V1 microcontroller interfaces with the GPS NEO 6M module to receive location data, which can be processed and transmitted as needed.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with GPS M10

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Yoon: A project utilizing GPS M10 in a practical application
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ecs: A project utilizing GPS M10 in a practical application
ESP32-Based GPS Tracker with OLED Display and Firebase Integration
This circuit is a GPS tracking system that uses an ESP32 microcontroller to read location data from a NEO-6M GPS module and display information on a 0.96" OLED screen. The system is powered by a 2000mAh battery with a lithium-ion charger, and it uploads the GPS data to Firebase via WiFi. Additional components include an MPU6050 accelerometer/gyroscope for motion sensing and a buzzer for alerts.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart GPS Tracker: A project utilizing GPS M10 in a practical application
Arduino Nano GPS Tracker with GSM and OLED Display
This circuit is a GPS tracking system that uses an Arduino Nano to interface with a SIM800L GSM module, a GPS NEO 6M module, and a 1.3-inch OLED display. The Arduino collects GPS data, displays it on the OLED screen, and sends the coordinates via SMS using the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of SeekPeek: A project utilizing GPS M10 in a practical application
Battery-Powered GPS Tracker with ESP32 and NEO 6M
This circuit is a GPS tracking system powered by a 3.7V battery, which is charged via a TP4056 module. The ESP32 Devkit V1 microcontroller interfaces with the GPS NEO 6M module to receive location data, which can be processed and transmitted as needed.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Vehicle navigation systems
  • Asset tracking and fleet management
  • Wearable devices and fitness trackers
  • Drones and robotics
  • IoT applications requiring geolocation data

Technical Specifications

The GPS M10 module is designed to deliver high performance while maintaining low power consumption. Below are its key technical specifications:

Parameter Specification
Satellite Systems GPS, GLONASS, Galileo, QZSS
Positioning Accuracy < 2.5 meters CEP (Circular Error Probable)
Update Rate 1 Hz (default), configurable up to 10 Hz
Operating Voltage 3.0V to 5.0V
Current Consumption ~30 mA (active mode), < 10 µA (standby mode)
Communication Interface UART (default), I2C
Baud Rate (UART) 9600 bps (default), configurable
Operating Temperature -40°C to +85°C
Dimensions 16 mm x 12 mm x 2.5 mm

Pin Configuration

The GPS M10 module typically has the following pinout:

Pin Number Pin Name Description
1 VCC Power supply input (3.0V to 5.0V)
2 GND Ground
3 TX UART Transmit (data output from GPS module)
4 RX UART Receive (data input to GPS module)
5 PPS Pulse Per Second (timing signal output)
6 EN Enable pin (active high to power on the module)

Usage Instructions

Connecting the GPS M10 to a Circuit

  1. Power Supply: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
  2. UART Communication: Connect the TX pin of the GPS module to the RX pin of your microcontroller (e.g., Arduino UNO) and the RX pin of the GPS module to the TX pin of the microcontroller.
  3. Enable Pin: Ensure the EN pin is pulled high to activate the module. If unused, connect it to VCC.
  4. Antenna Placement: For optimal performance, ensure the module's built-in antenna has a clear view of the sky.

Example: Using GPS M10 with Arduino UNO

Below is an example code snippet to interface the GPS M10 module with an Arduino UNO. This code reads and displays GPS data (NMEA sentences) on the Serial Monitor.

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial gpsSerial(4, 3); // RX = Pin 4, TX = Pin 3

void setup() {
  Serial.begin(9600); // Initialize Serial Monitor at 9600 bps
  gpsSerial.begin(9600); // Initialize GPS module communication at 9600 bps

  Serial.println("GPS M10 Module Test");
  Serial.println("Waiting for GPS data...");
}

void loop() {
  // Check if data is available from the GPS module
  while (gpsSerial.available()) {
    char c = gpsSerial.read(); // Read one character from GPS module
    Serial.print(c); // Print the character to the Serial Monitor

    // Note: The GPS module outputs NMEA sentences, which can be parsed
    // using libraries like TinyGPS++ for extracting specific data such as
    // latitude, longitude, and time.
  }
}

Best Practices

  • Place the GPS module in an open area with minimal obstructions for better satellite reception.
  • Use decoupling capacitors near the VCC pin to reduce noise and ensure stable operation.
  • If using the module indoors, consider an external active antenna for improved signal strength.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No GPS Fix or Location Data:

    • Ensure the module has a clear view of the sky.
    • Wait for a few minutes after powering on, as the module may take time to acquire satellite signals (cold start).
    • Check the power supply voltage and ensure it is within the specified range.
  2. No Data Output on Serial Monitor:

    • Verify the RX and TX connections between the GPS module and the microcontroller.
    • Ensure the baud rate in the code matches the GPS module's default baud rate (9600 bps).
    • Check if the EN pin is properly connected to VCC.
  3. Inconsistent or Inaccurate Location Data:

    • Avoid placing the module near sources of electromagnetic interference (e.g., motors, Wi-Fi routers).
    • Ensure the antenna is not obstructed by metal objects or enclosures.

FAQs

Q: Can the GPS M10 module work indoors?
A: While the module can work indoors, signal reception may be weak or unavailable. For indoor use, consider using an external active antenna.

Q: How can I increase the update rate of the GPS module?
A: The update rate can be configured using specific commands sent via the UART interface. Refer to the module's datasheet for details.

Q: Does the GPS M10 support external antennas?
A: Yes, the module supports external active antennas for improved signal reception in challenging environments.

Q: What is the purpose of the PPS pin?
A: The PPS (Pulse Per Second) pin provides a precise timing signal that can be used for synchronization in time-sensitive applications.

By following this documentation, users can effectively integrate the GPS M10 module into their projects and troubleshoot common issues.
