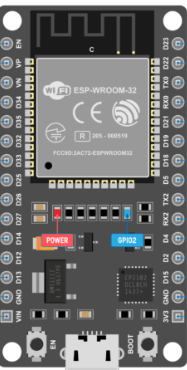

Image of esp32
Cirkit Designer LogoDesign with esp32 in Cirkit Designer

Introduction

The ESP32 is a powerful microcontroller developed by Espressif Systems, featuring integrated Wi-Fi and Bluetooth capabilities. It is widely used in Internet of Things (IoT) applications, smart home devices, wearable electronics, and other projects requiring wireless connectivity. With its dual-core processor, low power consumption, and extensive GPIO options, the ESP32 is a versatile and cost-effective solution for both hobbyists and professionals.

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
Image of Arena 2: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Motion Detection
Image of pro: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing esp32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arena 2: A project utilizing esp32 in a practical application
ESP32-Controlled OLED Display and Servo with DotStar LED Strip and Audio Output
This circuit features an ESP32 microcontroller driving a variety of components. It controls an OLED display for visual output, a DotStar LED strip for lighting effects, a PAM8403 audio amplifier connected to a speaker for sound output, and a PCA9685 PWM Servo Breakout to manage a servo motor. The ESP32 also interfaces with a piezo speaker for additional sound generation, and the circuit is powered by a 18650 Li-ion battery setup with a TP4056 charging module. The ESP32's embedded code handles the display animation on the OLED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of MVP_design: A project utilizing esp32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pro: A project utilizing esp32 in a practical application
ESP32-Based Environmental Monitoring System with Motion Detection
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing esp32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable technology
  • Robotics and drones
  • Industrial automation
  • Audio streaming and Bluetooth-enabled devices

Technical Specifications

The ESP32 is packed with features that make it suitable for a wide range of applications. Below are its key technical specifications:

General Specifications

Feature Description
Processor Dual-core Xtensa® 32-bit LX6 microprocessor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by module)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (Classic + BLE)
Operating Voltage 3.3V
GPIO Pins 34 (multipurpose, including ADC, DAC, PWM, etc.)
Power Consumption Ultra-low power modes available

Pin Configuration

The ESP32 has a variety of pins for different functionalities. Below is a summary of the pin configuration:

Pin Name Functionality Description
GPIO0 Input/Output, Boot Mode Selection Used for boot mode selection during startup.
GPIO2 Input/Output, ADC, PWM General-purpose pin with ADC and PWM support.
GPIO12 Input/Output, ADC, Touch Sensor Can be used as a touch sensor input.
GPIO13 Input/Output, ADC, PWM, Touch Sensor Multipurpose pin with touch sensor support.
GPIO21 Input/Output, I2C SDA Default SDA pin for I2C communication.
GPIO22 Input/Output, I2C SCL Default SCL pin for I2C communication.
EN Enable Resets the chip when pulled low.
3V3 Power Provides 3.3V output.
GND Ground Ground connection.

Note: The ESP32 has multiple ADC (Analog-to-Digital Converter) and DAC (Digital-to-Analog Converter) pins, but not all GPIOs support these functions. Refer to the datasheet for detailed pin mappings.

Usage Instructions

Using the ESP32 in a Circuit

  1. Powering the ESP32: The ESP32 operates at 3.3V. Ensure your power supply provides a stable 3.3V to avoid damaging the chip. If using a USB connection, the onboard voltage regulator will handle this.
  2. Connecting Peripherals: Use the GPIO pins to connect sensors, actuators, or other peripherals. Be mindful of the pin's voltage and current limits.
  3. Programming the ESP32: The ESP32 can be programmed using the Arduino IDE, Espressif's ESP-IDF, or other compatible environments. Ensure the correct board and port are selected in your IDE.

Example: Blinking an LED with Arduino IDE

Below is an example of how to blink an LED connected to GPIO2 using the Arduino IDE:

// Define the GPIO pin where the LED is connected
#define LED_PIN 2

void setup() {
  // Set the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

Important Considerations

  • Voltage Levels: The ESP32 operates at 3.3V logic levels. Avoid connecting 5V signals directly to its GPIO pins.
  • Boot Mode: GPIO0 must be pulled low during startup to enter programming mode.
  • Power Consumption: Use deep sleep modes for battery-powered applications to conserve energy.

Troubleshooting and FAQs

Common Issues

  1. ESP32 Not Detected by Computer

    • Ensure the correct USB driver is installed for your development board.
    • Check the USB cable for faults or try a different cable.
  2. Upload Fails in Arduino IDE

    • Verify that the correct board and COM port are selected in the IDE.
    • Hold the "BOOT" button on the ESP32 board while uploading the code.
  3. Wi-Fi Connection Issues

    • Double-check the SSID and password in your code.
    • Ensure the Wi-Fi network is within range and not overloaded.
  4. Random Resets or Instability

    • Check the power supply for stability and ensure it can provide sufficient current.
    • Avoid using GPIO pins that are reserved for specific functions during boot.

FAQs

Q: Can the ESP32 be powered with 5V?
A: Yes, if your development board has an onboard voltage regulator. Otherwise, the ESP32 itself requires 3.3V.

Q: How many devices can the ESP32 connect to via Bluetooth?
A: The ESP32 supports up to 7 simultaneous Bluetooth connections in Classic mode.

Q: Can I use the ESP32 with a 5V sensor?
A: Use a level shifter to safely interface 5V sensors with the ESP32's 3.3V GPIO pins.

Q: What is the maximum Wi-Fi range of the ESP32?
A: The range depends on environmental factors but typically extends up to 100 meters in open spaces.

By following this documentation, you can effectively integrate the ESP32 into your projects and troubleshoot common issues with ease.
