How to Use Arduino UNO: Examples, Pinouts, and Specs

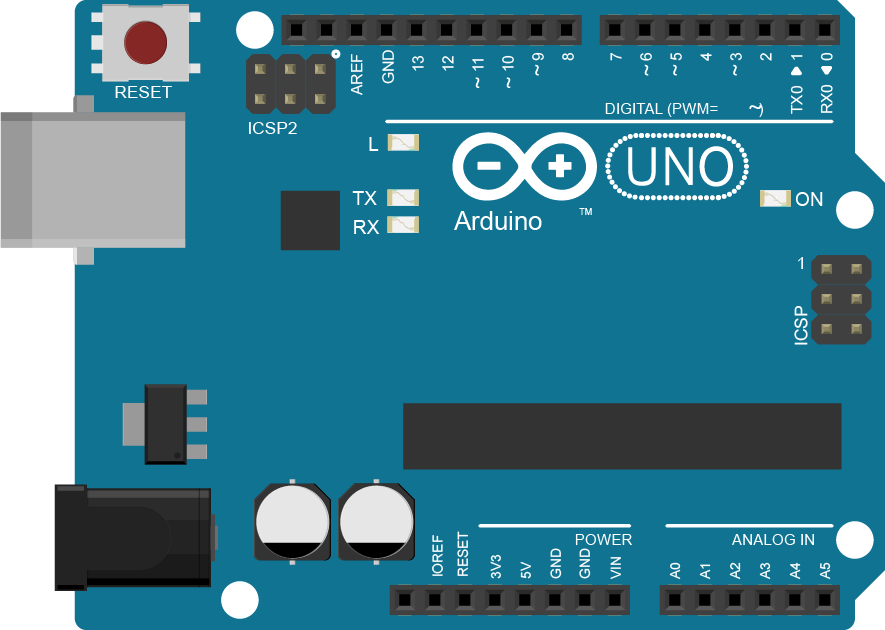

Image of Arduino UNO
Cirkit Designer LogoDesign with Arduino UNO in Cirkit Designer

Introduction

The Arduino UNO is a microcontroller board based on the ATmega328P. It is one of the most popular and versatile development boards in the Arduino ecosystem, widely used for building digital devices and interactive objects that can sense and control the physical world. Its ease of use, extensive community support, and compatibility with a wide range of sensors and actuators make it an excellent choice for beginners and professionals alike.

Explore Projects Built with Arduino UNO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO and ESP32 CAM Controlled Fire Detection and Alert System with GSM Notification
Image of ASO BOT: A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of sensors, actuators, and modules. It includes a 5-channel fire sensor, temperature and humidity sensor (DHT11), two buzzers, and two servomotors controlled by an L293D driver shield. The circuit also integrates an ESP32 CAM for wireless capabilities, a 2-channel relay module controlling a mini water pump, an LCD display for user interface, a SIM 800L GSM module for cellular connectivity, and is powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Access Control System with Data Logging
Image of Research Internal Design (2): A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Home Automation System with I2C LCD and RTC
Image of Alarm of RSU Hymn: A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO microcontroller interfaced with a 16x2 I2C LCD for display, a DS1302 RTC for real-time clock functionality, and a 1-channel relay for controlling high-power devices. Additionally, it includes multiple pushbuttons for user input and is powered by a 3xAAA battery pack, USB power, or a 5V adapter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
Image of WORK_1: A project utilizing Arduino UNO in a practical application
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino UNO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ASO BOT: A project utilizing Arduino UNO in a practical application
Arduino UNO and ESP32 CAM Controlled Fire Detection and Alert System with GSM Notification
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of sensors, actuators, and modules. It includes a 5-channel fire sensor, temperature and humidity sensor (DHT11), two buzzers, and two servomotors controlled by an L293D driver shield. The circuit also integrates an ESP32 CAM for wireless capabilities, a 2-channel relay module controlling a mini water pump, an LCD display for user interface, a SIM 800L GSM module for cellular connectivity, and is powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Research Internal Design (2): A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Access Control System with Data Logging
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Alarm of RSU Hymn: A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Smart Home Automation System with I2C LCD and RTC
This circuit features an Arduino UNO microcontroller interfaced with a 16x2 I2C LCD for display, a DS1302 RTC for real-time clock functionality, and a 1-channel relay for controlling high-power devices. Additionally, it includes multiple pushbuttons for user input and is powered by a 3xAAA battery pack, USB power, or a 5V adapter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of WORK_1: A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of IoT devices
  • Robotics and automation projects
  • Data logging and environmental monitoring
  • Home automation systems
  • Educational purposes for learning programming and electronics

Technical Specifications

The Arduino UNO is designed to provide a balance of performance, simplicity, and flexibility. Below are its key technical details:

Key Technical Details

  • Microcontroller: ATmega328P
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limit): 6-20V
  • Digital I/O Pins: 14 (6 of which provide PWM output)
  • Analog Input Pins: 6
  • DC Current per I/O Pin: 20 mA
  • Flash Memory: 32 KB (0.5 KB used by bootloader)
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
  • USB Connector: Type-B
  • Dimensions: 68.6 mm x 53.4 mm
  • Weight: 25 g

Pin Configuration and Descriptions

The Arduino UNO has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed description of the pin configuration:

Digital Pins

Pin Number Function Description
0 (RX) Serial Receive Used for receiving serial data
1 (TX) Serial Transmit Used for transmitting serial data
2-13 General Digital I/O Configurable as input or output
3, 5, 6, 9, 10, 11 PWM Output Provides Pulse Width Modulation (PWM) output

Analog Pins

Pin Number Function Description
A0-A5 Analog Input Reads analog signals (0-5V)

Power Pins

Pin Name Function Description
VIN Input Voltage External power input (7-12V recommended)
5V Regulated 5V Output Powers external components
3.3V Regulated 3.3V Output Powers low-voltage components
GND Ground Common ground for the circuit
IOREF I/O Reference Voltage Provides voltage reference for I/O pins
RESET Reset Resets the microcontroller

Usage Instructions

The Arduino UNO is straightforward to use and can be programmed using the Arduino IDE. Below are the steps to get started and some best practices to follow:

How to Use the Arduino UNO

  1. Install the Arduino IDE:
  2. Connect the Arduino UNO:
    • Use a USB Type-B cable to connect the Arduino UNO to your computer.
  3. Select the Board and Port:
    • In the Arduino IDE, go to Tools > Board and select "Arduino UNO."
    • Then, go to Tools > Port and select the port to which the board is connected.
  4. Write and Upload Code:
    • Write your program (sketch) in the Arduino IDE.
    • Click the "Upload" button to upload the code to the board.

Example Code: Blinking an LED

The following example demonstrates how to blink an LED connected to pin 13 of the Arduino UNO:

// This program blinks an LED connected to pin 13 of the Arduino UNO.
// The LED will turn on for 1 second and off for 1 second in a loop.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Important Considerations and Best Practices

  • Always check the voltage and current ratings of components connected to the Arduino UNO to avoid damage.
  • Use external power sources for high-power components like motors or relays.
  • Avoid drawing more than 20 mA from any single I/O pin.
  • Use pull-up or pull-down resistors for stable input readings.
  • Disconnect the board from power before making changes to the circuit.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Arduino UNO is not detected by the computer:

    • Ensure the USB cable is properly connected.
    • Check if the correct port is selected in the Arduino IDE.
    • Install or update the USB drivers for the Arduino UNO.
  2. Code does not upload to the board:

    • Verify that the correct board and port are selected in the Arduino IDE.
    • Press the reset button on the board before uploading the code.
    • Check for syntax errors in the code.
  3. The board is not powering on:

    • Ensure the power source (USB or external) is functioning correctly.
    • Check for loose connections or damaged components.
  4. Components connected to the board are not working:

    • Verify the wiring and connections.
    • Check if the components are compatible with the Arduino UNO.
    • Use a multimeter to test for continuity and proper voltage levels.

FAQs

Q: Can I power the Arduino UNO with a battery?
A: Yes, you can power the Arduino UNO using a 9V battery connected to the VIN and GND pins or through the DC power jack.

Q: What is the maximum current the Arduino UNO can supply?
A: The 5V pin can supply up to 500 mA when powered via USB, and up to 1A when powered through an external adapter.

Q: Can I use the Arduino UNO for wireless communication?
A: Yes, you can use wireless modules like Bluetooth (HC-05/HC-06) or Wi-Fi (ESP8266/ESP32) with the Arduino UNO.

Q: How do I reset the Arduino UNO?
A: Press the reset button on the board or connect the RESET pin to GND momentarily.

By following this documentation, you can effectively use the Arduino UNO for a wide range of projects and applications.
