How to Use lCD with I2C: Examples, Pinouts, and Specs

The LCD with I2C is a liquid crystal display module that uses the I2C (Inter-Integrated Circuit) protocol for communication. This module simplifies the process of connecting and controlling an LCD by reducing the number of pins required, making it ideal for microcontroller-based projects. It is commonly used for displaying text, numbers, and simple custom characters in embedded systems.

• Microcontroller-based projects (e.g., Arduino, Raspberry Pi)
• Home automation systems
• Data logging and monitoring systems
• Educational and prototyping purposes
• User interfaces for embedded devices

• Display Type: 16x2 or 20x4 character LCD
• Communication Protocol: I2C
• Operating Voltage: 5V DC
• Backlight: LED (controllable via software)
• I2C Address: Typically 0x27 or 0x3F (configurable via solder jumpers)
• Current Consumption: ~20mA (with backlight on)
• Contrast Adjustment: Potentiometer on the I2C backpack

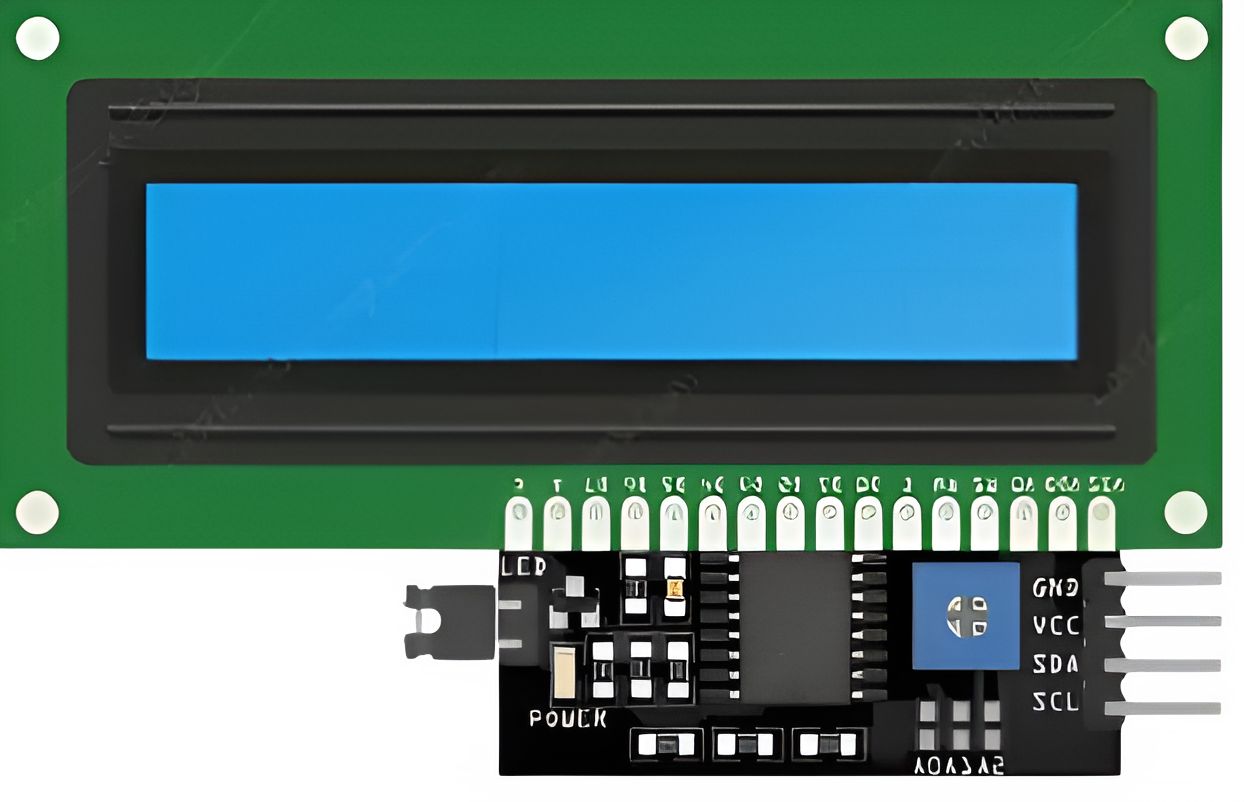

The LCD with I2C module has a 4-pin interface for connection:

1. Wiring the LCD with I2C:

   • Connect the GND pin of the LCD to the ground of your microcontroller.
   • Connect the VCC pin to the 5V power supply of your microcontroller.
   • Connect the SDA pin to the SDA pin of your microcontroller (e.g., A4 on Arduino UNO).
   • Connect the SCL pin to the SCL pin of your microcontroller (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • For Arduino, install the LiquidCrystal_I2C library from the Arduino Library Manager.

3. Write and Upload Code:

   • Use the example code below to display text on the LCD.

#include <Wire.h>                // Include the Wire library for I2C communication
#include <LiquidCrystal_I2C.h>  // Include the LiquidCrystal_I2C library

// Initialize the LCD with I2C address 0x27 and a 16x2 display
LiquidCrystal_I2C lcd(0x27, 16, 2);

void setup() {
  lcd.begin();                   // Initialize the LCD
  lcd.backlight();               // Turn on the backlight
  lcd.setCursor(0, 0);           // Set the cursor to the first row, first column
  lcd.print("Hello, World!");    // Print text on the LCD
  lcd.setCursor(0, 1);           // Set the cursor to the second row, first column
  lcd.print("I2C LCD Test");     // Print additional text
}

void loop() {
  // No actions in the loop for this example
}

• I2C Address: Ensure the correct I2C address is used in your code. If the LCD does not respond, use an I2C scanner sketch to detect the address.
• Power Supply: Use a stable 5V power source to avoid flickering or malfunctioning of the display.
• Contrast Adjustment: Use the potentiometer on the I2C backpack to adjust the contrast of the display.
• Pull-Up Resistors: Some I2C modules include built-in pull-up resistors. If not, ensure external pull-up resistors (4.7kΩ to 10kΩ) are connected to the SDA and SCL lines.

1. LCD Not Displaying Anything:

   • Verify the wiring connections (GND, VCC, SDA, SCL).
   • Check the I2C address in the code. Use an I2C scanner sketch to confirm the address.
   • Adjust the contrast using the potentiometer on the I2C backpack.

2. Flickering or Unstable Display:

   • Ensure a stable 5V power supply.
   • Check for loose connections or faulty jumper wires.

3. Backlight Not Turning On:

   • Confirm that the lcd.backlight() function is called in the code.
   • Check the solder joints on the I2C backpack.

4. Text Not Aligned or Cut Off:

   • Ensure the correct LCD dimensions (e.g., 16x2 or 20x4) are specified in the code.

Q: How do I find the I2C address of my LCD?
A: Use an I2C scanner sketch to detect the address. Upload the sketch to your microcontroller, and the serial monitor will display the detected address.

Q: Can I use this LCD with a 3.3V microcontroller?
A: Yes, but ensure the I2C lines are level-shifted to 3.3V, or use a module that supports 3.3V logic.

Q: Can I connect multiple I2C devices to the same bus?
A: Yes, as long as each device has a unique I2C address. Use solder jumpers to change the address if needed.

Q: How do I turn off the backlight?
A: Use the lcd.noBacklight() function in your code to turn off the backlight.

By following this documentation, you can effectively integrate and troubleshoot the LCD with I2C in your projects.
