How to Use Leitungsschutzschalter 1 pol.: Examples, Pinouts, and Specs

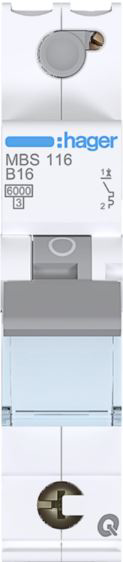

The Leitungsschutzschalter 1 pol. (manufacturer: Hager, part ID: MBS 116 B16) is a single-pole circuit breaker designed to protect electrical circuits from overloads and short circuits. It automatically interrupts the current flow when the current exceeds the rated limit, ensuring the safety of electrical systems and connected devices.

• Residential and commercial electrical installations
• Protection of lighting circuits, outlets, and small appliances
• Industrial control panels and distribution boards
• Prevention of electrical fires caused by overloads or short circuits

The Leitungsschutzschalter 1 pol. has two primary connection terminals:

1. Mounting the Circuit Breaker:

   • Install the circuit breaker on a standard 35 mm DIN rail in the distribution board.
   • Ensure the breaker is securely locked into place.

2. Wiring:

   • Connect the Line (Input) terminal to the incoming phase wire from the power source.
   • Connect the Load (Output) terminal to the circuit or device to be protected.
   • Tighten the terminal screws to ensure a secure connection. Avoid overtightening.

3. Operation:

   • Switch the breaker to the "ON" position to allow current flow.
   • In case of an overload or short circuit, the breaker will trip to the "OFF" position automatically.
   • To reset, first identify and resolve the cause of the fault, then switch the breaker back to the "ON" position.

• Ensure the rated current (16 A) matches the requirements of the circuit being protected.
• Do not exceed the rated voltage of 230/400 V AC.
• Use appropriate wire sizes for the connected circuit to prevent overheating.
• Regularly inspect the breaker for signs of wear or damage.
• Avoid using the breaker as a regular on/off switch, as this may reduce its lifespan.

While the Leitungsschutzschalter 1 pol. is not directly interfaced with microcontrollers like the Arduino UNO, it can be used in circuits that power Arduino-based projects. For example, it can protect the power supply line feeding the Arduino and its peripherals.

Here is an example of how to use the circuit breaker in a simple Arduino-powered circuit:

/* Example: Using a circuit breaker to protect an Arduino project
   - The circuit breaker is installed on the power supply line.
   - Ensure the breaker is rated for the current and voltage of the circuit.
*/

// No specific code is required for the circuit breaker itself, as it operates
// independently of the Arduino. However, ensure the Arduino's power supply
// is properly connected and protected by the breaker.

1. Breaker Trips Frequently:

   • Cause: Overload or short circuit in the connected circuit.
   • Solution: Check the connected devices and wiring for faults. Ensure the total current does not exceed 16 A.

2. Breaker Does Not Reset:

   • Cause: Persistent fault in the circuit or damaged breaker.
   • Solution: Inspect the circuit for faults and resolve them. If the breaker is damaged, replace it.

3. Loose Connections:

   • Cause: Improperly tightened terminal screws.
   • Solution: Ensure all connections are secure and properly tightened.

• Use a multimeter to check for short circuits or excessive current draw in the protected circuit.
• Verify that the breaker is compatible with the circuit's voltage and current requirements.
• If the breaker trips without any load connected, it may be defective and should be replaced.

By following these guidelines, the Leitungsschutzschalter 1 pol. can provide reliable protection for your electrical circuits, ensuring safety and preventing damage to connected devices.
