How to Use Raspberry Pi 4B: Examples, Pinouts, and Specs

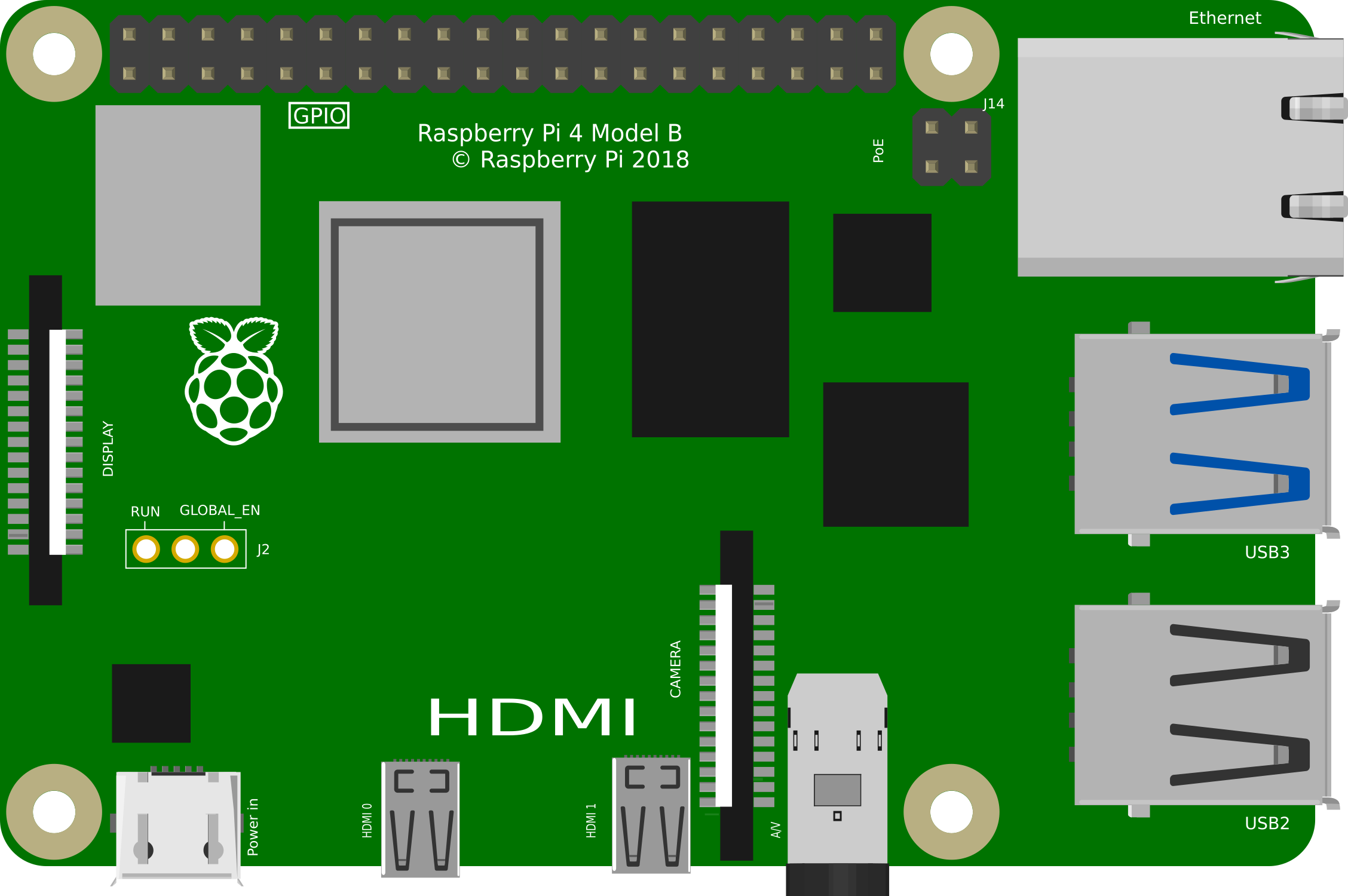

Image of Raspberry Pi 4B
Cirkit Designer LogoDesign with Raspberry Pi 4B in Cirkit Designer

Introduction

The Raspberry Pi 4B is a compact, affordable single-board computer designed for a wide range of applications. It features a powerful quad-core processor, up to 8GB of RAM, multiple USB ports, dual micro-HDMI outputs, and Ethernet connectivity. This versatile device is ideal for projects such as programming, robotics, IoT systems, media centers, and more. Its small form factor and robust performance make it a popular choice for both hobbyists and professionals.

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
Image of smart_power_meter: A project utilizing Raspberry Pi 4B in a practical application
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
Image of VisionTool: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors
Image of Scheme thesis: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism
Image of CVM: A project utilizing Raspberry Pi 4B in a practical application
This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Raspberry Pi 4B

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of smart_power_meter: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of VisionTool: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Scheme thesis: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B-based Payment Kiosk with Coin and Bill Acceptors
This circuit features a Raspberry Pi 4B as the central controller, interfaced with a variety of peripherals for a payment and display system. It includes a bill acceptor and multi coin acceptor for monetary input, a thermal printer for receipts, and a touch display for user interaction. The circuit also incorporates a 12V to 5V step-down converter to power the 5V components and a membrane matrix keypad for additional input options.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CVM: A project utilizing Raspberry Pi 4B in a practical application
Raspberry Pi 4B Controlled RFID and Keypad Security System with I2C LCD Feedback and Motorized Lock Mechanism
This circuit features a Raspberry Pi 4B as the central controller, interfaced with an I2C LCD screen for display, an RFID-RC522 module for RFID reading, a 4x4 membrane matrix keypad for user input, and an L298N motor driver to control a DC motor. The Raspberry Pi manages data communication with the LCD via I2C, reads RFID tags, processes keypad inputs, and controls the motor's operation. Power is supplied to the motor driver and the Raspberry Pi through a 9V battery and regulated 5V connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Programming and Education: Ideal for learning programming languages like Python, C++, and Java.
  • Media Centers: Can be used to build a home theater system with software like Kodi.
  • IoT and Robotics: Serves as the brain for IoT devices and robotic systems.
  • Web Servers: Suitable for hosting lightweight web servers and applications.
  • Retro Gaming: Can emulate classic gaming consoles using software like RetroPie.

Technical Specifications

Key Technical Details

Specification Details
Processor Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
RAM Options 2GB, 4GB, or 8GB LPDDR4
USB Ports 2 × USB 3.0, 2 × USB 2.0
Video Output 2 × micro-HDMI ports (up to 4K resolution)
Networking Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 5.0
GPIO Pins 40-pin GPIO header (compatible with previous Raspberry Pi models)
Storage MicroSD card slot, USB boot support
Power Supply 5V/3A via USB-C
Dimensions 85.6mm × 56.5mm × 17mm

Pin Configuration and Descriptions

The Raspberry Pi 4B features a 40-pin GPIO header. Below is a summary of the pin configuration:

Pin Number Pin Name Function Voltage Level
1 3.3V Power Power Supply 3.3V
2 5V Power Power Supply 5V
3 GPIO2 (SDA1) I2C Data 3.3V
4 5V Power Power Supply 5V
5 GPIO3 (SCL1) I2C Clock 3.3V
6 Ground Ground 0V
7 GPIO4 General Purpose I/O 3.3V
8 GPIO14 (TXD) UART Transmit 3.3V
9 Ground Ground 0V
10 GPIO15 (RXD) UART Receive 3.3V
... ... ... ...

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.

Usage Instructions

How to Use the Raspberry Pi 4B in a Circuit

  1. Powering the Raspberry Pi: Use a 5V/3A USB-C power supply to power the board.
  2. Connecting Peripherals: Attach a keyboard, mouse, and monitor via USB and HDMI ports.
  3. Installing an Operating System:
    • Download the Raspberry Pi Imager tool from the official website.
    • Flash an OS (e.g., Raspberry Pi OS) onto a microSD card.
    • Insert the microSD card into the Raspberry Pi's card slot.
  4. Booting Up: Power on the Raspberry Pi, and it will boot into the installed OS.
  5. Using GPIO Pins: Connect sensors, LEDs, or other components to the GPIO pins for hardware projects.

Important Considerations and Best Practices

  • Cooling: Use a heatsink or fan for cooling, especially for intensive tasks.
  • Power Supply: Ensure the power supply provides sufficient current (5V/3A) to avoid instability.
  • Static Protection: Handle the board carefully to avoid static damage to components.
  • Software Updates: Regularly update the OS and software for optimal performance and security.

Example: Blinking an LED with GPIO and Arduino UNO

The Raspberry Pi 4B can control an LED using its GPIO pins. Below is an example Python script:

Import the GPIO library and time module

import RPi.GPIO as GPIO import time

Set the GPIO mode to BCM (Broadcom pin numbering)

GPIO.setmode(GPIO.BCM)

Define the GPIO pin connected to the LED

LED_PIN = 18

Set the LED pin as an output

GPIO.setup(LED_PIN, GPIO.OUT)

Blink the LED in a loop

try: while True: GPIO.output(LED_PIN, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(LED_PIN, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()

Connecting the Circuit

  1. Connect the positive leg of the LED to GPIO pin 18 (physical pin 12).
  2. Connect the negative leg of the LED to a 330-ohm resistor.
  3. Connect the other end of the resistor to a ground pin (e.g., physical pin 6).

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi does not boot:

    • Ensure the microSD card is properly inserted.
    • Verify the OS image was correctly flashed onto the microSD card.
    • Check the power supply for sufficient voltage and current.

  2. Overheating:

    • Use a heatsink or fan to improve cooling.
    • Avoid placing the Raspberry Pi in an enclosed space without ventilation.

  3. No display on the monitor:

    • Verify the HDMI cable is securely connected.
    • Ensure the monitor is set to the correct input source.
    • Check if the OS is configured for dual-display output.

  4. GPIO pins not working:

    • Confirm the correct GPIO pin numbering (BCM vs. physical).
    • Check for loose connections in the circuit.
    • Ensure the GPIO library is installed and configured correctly.

FAQs

  • Can I power the Raspberry Pi 4B via USB ports? No, the Raspberry Pi 4B requires a dedicated 5V/3A USB-C power supply.

  • What is the maximum resolution supported by the Raspberry Pi 4B? The Raspberry Pi 4B supports dual 4K displays via its micro-HDMI ports.

  • Can I use the Raspberry Pi 4B as a desktop computer? Yes, with a suitable OS like Raspberry Pi OS, it can function as a basic desktop computer.

  • Is the Raspberry Pi 4B backward compatible with older models? Yes, the GPIO header is compatible with previous Raspberry Pi models.
