How to Use ESP-32: Examples, Pinouts, and Specs

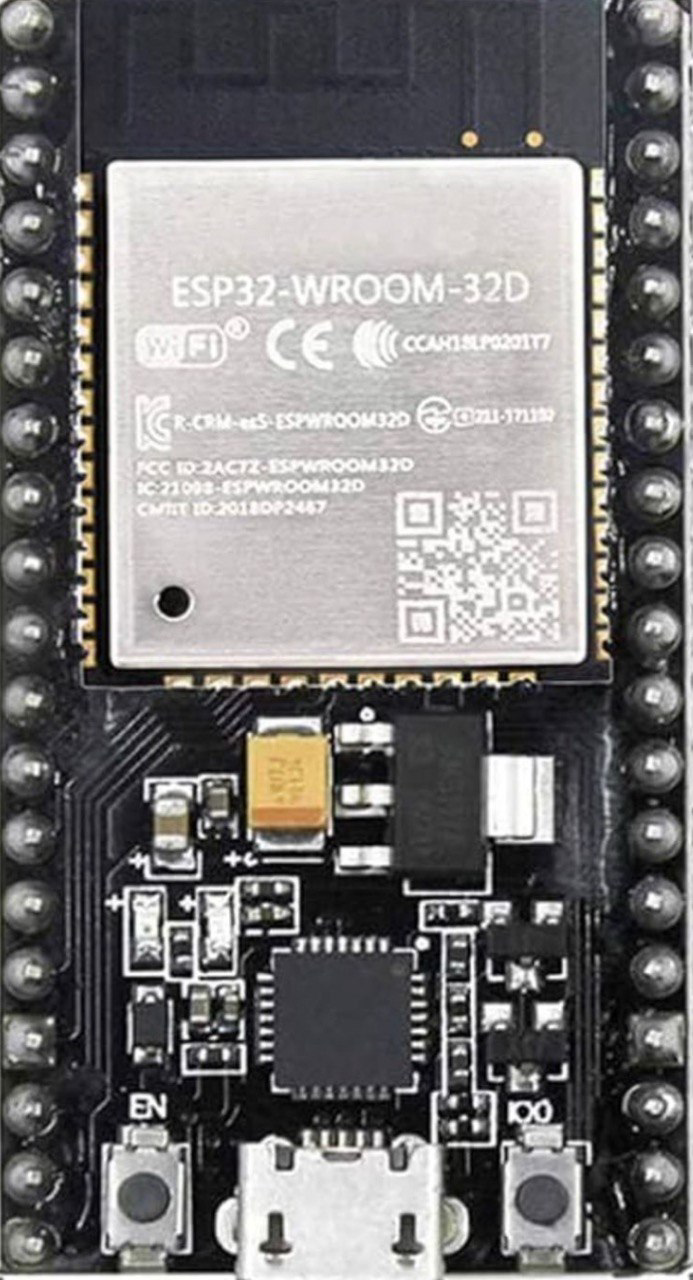

Image of ESP-32
Cirkit Designer LogoDesign with ESP-32 in Cirkit Designer

Introduction

The ESP-32 is a low-cost, low-power system on a chip (SoC) developed by Espressif Systems. It features integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications, smart devices, and embedded systems. With its dual-core processor, extensive GPIO options, and support for various communication protocols, the ESP-32 is a versatile and powerful component for a wide range of projects.

Explore Projects Built with ESP-32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based RF Communication System with 433 MHz Modules
Image of 433 mhz: A project utilizing ESP-32 in a practical application
This circuit comprises an ESP32 microcontroller connected to a 433 MHz RF transmitter and receiver pair. The ESP32 is programmed to receive and decode RF signals through the receiver module, as well as send RF signals via the transmitter module. Additionally, the ESP32 can communicate with a Bluetooth device to exchange commands and data, and it uses an LED for status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing ESP-32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
Image of circuit diagram: A project utilizing ESP-32 in a practical application
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
Image of mark: A project utilizing ESP-32 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP-32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of 433 mhz: A project utilizing ESP-32 in a practical application
ESP32-Based RF Communication System with 433 MHz Modules
This circuit comprises an ESP32 microcontroller connected to a 433 MHz RF transmitter and receiver pair. The ESP32 is programmed to receive and decode RF signals through the receiver module, as well as send RF signals via the transmitter module. Additionally, the ESP32 can communicate with a Bluetooth device to exchange commands and data, and it uses an LED for status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing ESP-32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circuit diagram: A project utilizing ESP-32 in a practical application
ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity
This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mark: A project utilizing ESP-32 in a practical application
ESP32-Based Environmental Monitoring and Alert System with Solar Charging
This circuit features an ESP32 Devkit V1 microcontroller connected to various sensors and modules for monitoring and communication purposes. It includes an MQ-2 gas sensor and a DHT11 temperature and humidity sensor, both interfaced with the ESP32 for environmental data collection. The circuit is powered by a 12V battery, regulated to 5V by step-down converters, and includes a solar charge controller connected to a solar panel for battery charging, a UPS module for power management, and a SIM900A module for GSM communication. Additionally, there is a WS2812 RGB LED strip for visual feedback and a piezo buzzer for audio alerts, both controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices (e.g., smart home systems, sensors, and actuators)
  • Wireless communication hubs
  • Wearable devices
  • Industrial automation
  • Robotics and drones
  • Data logging and remote monitoring systems

Technical Specifications

The ESP-32 is packed with features that make it suitable for both simple and complex applications. Below are its key technical specifications:

Key Technical Details

  • Processor: Dual-core Xtensa® 32-bit LX6 microprocessor
  • Clock Speed: Up to 240 MHz
  • RAM: 520 KB SRAM
  • Flash Memory: Typically 4 MB (varies by module)
  • Wi-Fi: 802.11 b/g/n (2.4 GHz)
  • Bluetooth: v4.2 BR/EDR and BLE
  • Operating Voltage: 3.0V to 3.6V
  • GPIO Pins: 34 (multipurpose, including ADC, DAC, PWM, I2C, SPI, UART)
  • ADC Channels: 18 (12-bit resolution)
  • DAC Channels: 2 (8-bit resolution)
  • Power Consumption: Ultra-low power modes available (as low as 5 µA in deep sleep)
  • Temperature Range: -40°C to +125°C

Pin Configuration and Descriptions

The ESP-32 has a variety of pins for different functionalities. Below is a table summarizing the key pins:

Pin Name Function Description
GPIO0 General Purpose I/O, Boot Mode Used for boot mode selection during startup.
GPIO2 General Purpose I/O Can be used for PWM, ADC, or other functions.
GPIO12 General Purpose I/O Supports ADC, PWM, and other functions.
GPIO13 General Purpose I/O Supports ADC, PWM, and other functions.
GPIO15 General Purpose I/O Can be used for PWM or other functions.
EN Enable Active high. Resets the chip when pulled low.
3V3 Power Supply Provides 3.3V power to the ESP-32.
GND Ground Connect to ground of the power supply.
TX0 UART Transmit Transmit pin for UART communication.
RX0 UART Receive Receive pin for UART communication.
ADC1_CH0 Analog Input First channel of ADC1 (12-bit resolution).
DAC1 Digital-to-Analog Converter First DAC channel for analog output.

Note: The exact pinout may vary depending on the specific ESP-32 module (e.g., ESP32-WROOM-32, ESP32-WROVER).

Usage Instructions

The ESP-32 can be used in a variety of circuits and applications. Below are the steps and best practices for using the ESP-32:

How to Use the ESP-32 in a Circuit

  1. Power Supply: Provide a stable 3.3V power supply to the 3V3 pin. Avoid exceeding 3.6V to prevent damage.
  2. Boot Mode: To upload code, connect GPIO0 to GND during reset to enter bootloader mode.
  3. Programming: Use a USB-to-Serial adapter or a development board with built-in USB for programming. The ESP-32 is compatible with the Arduino IDE, ESP-IDF, and other platforms.
  4. Connections: Connect peripherals (e.g., sensors, actuators) to the GPIO pins. Use pull-up or pull-down resistors as needed.
  5. Wi-Fi and Bluetooth: Configure Wi-Fi and Bluetooth settings in your code to enable wireless communication.

Important Considerations and Best Practices

  • Voltage Levels: Ensure all connected devices operate at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
  • Heat Management: The ESP-32 can get warm during operation. Ensure proper ventilation or heat dissipation in your design.
  • Deep Sleep Mode: Use deep sleep mode to conserve power in battery-operated projects.
  • Pin Multiplexing: Many pins have multiple functions. Check the datasheet to avoid conflicts in your design.

Example Code for Arduino IDE

Below is an example of how to connect the ESP-32 to a Wi-Fi network using the Arduino IDE:

#include <WiFi.h> // Include the WiFi library for ESP-32

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000);          // Wait for a moment before starting

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start connecting to Wi-Fi

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Tip: Replace Your_SSID and Your_Password with your actual Wi-Fi credentials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP-32 Not Connecting to Wi-Fi

    • Solution: Double-check the SSID and password in your code. Ensure the Wi-Fi network is active and within range.
    • Tip: Use WiFi.status() to debug connection issues.
  2. Upload Fails or Timeout Errors

    • Solution: Ensure GPIO0 is connected to GND during bootloader mode. Check the USB cable and port.
    • Tip: Press the "EN" (reset) button on the ESP-32 board before uploading.
  3. ESP-32 Overheating

    • Solution: Reduce the clock speed or ensure proper ventilation. Avoid overloading GPIO pins.
  4. Unstable Behavior or Random Resets

    • Solution: Check the power supply for stability. Use capacitors to filter noise.

FAQs

  • Q: Can the ESP-32 operate on 5V?

    • A: No, the ESP-32 operates at 3.3V. Use a voltage regulator or level shifter for 5V systems.
  • Q: How do I reset the ESP-32?

    • A: Press the "EN" button on the development board or pull the EN pin low.
  • Q: Can I use the ESP-32 with the Arduino IDE?

    • A: Yes, the ESP-32 is fully compatible with the Arduino IDE. Install the ESP-32 board package to get started.
  • Q: How do I conserve power in battery-operated projects?

    • A: Use the deep sleep mode to reduce power consumption to as low as 5 µA.

This documentation provides a comprehensive guide to using the ESP-32 effectively in your projects. For more advanced features, refer to the official Espressif documentation.
