Introduction

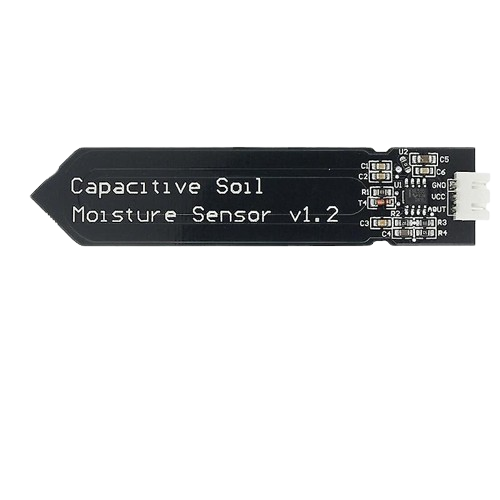

The Capacitive Soil Moisture Sensor v1.2 (Manufacturer Part ID: SEN0193) by DFRobot is a reliable and durable sensor designed to measure the volumetric water content in soil. Unlike resistive soil moisture sensors, this capacitive sensor detects changes in soil capacitance, making it non-corrosive and long-lasting. It provides an analog output that corresponds to the soil moisture level, making it ideal for applications requiring precise and consistent soil moisture monitoring.
Common Applications
- Smart irrigation systems
- Agricultural monitoring
- Gardening and horticulture
- Environmental research
- DIY electronics and IoT projects
Technical Specifications
Below are the key technical details of the Capacitive Soil Moisture Sensor v1.2:
Pin Configuration and Descriptions
The sensor has a 3-pin interface for easy connection:
Usage Instructions
How to Use the Sensor in a Circuit
- Power the Sensor: Connect the
VCC pin to a 3.3V or 5V power source and the GND pin to ground.
- Read the Analog Output: Connect the
AOUT pin to an analog input pin of a microcontroller (e.g., Arduino UNO).
- Calibrate the Sensor: The sensor outputs a voltage between 0V and 3V. A higher voltage indicates drier soil, while a lower voltage indicates wetter soil. You may need to calibrate the sensor for your specific soil type and conditions.
Important Considerations and Best Practices
- Avoid Submerging the Sensor: The sensor is designed for soil use and should not be submerged in water.
- Placement: Insert the sensor into the soil at the desired depth, ensuring the sensing area is fully covered by soil.
- Power Supply: Use a stable power source to ensure accurate readings.
- Calibration: Perform calibration in both dry and wet soil to determine the sensor's output range for your specific application.
- Protection: While the sensor is durable, consider using a protective coating or housing for long-term outdoor use.
Example Code for Arduino UNO
Below is an example of how to use the sensor with an Arduino UNO to read and display soil moisture levels:
// Capacitive Soil Moisture Sensor v1.2 Example Code
// Manufacturer: DFRobot
// Part ID: SEN0193
// Define the analog pin connected to the sensor
const int sensorPin = A0; // Connect AOUT to A0 on Arduino
void setup() {
Serial.begin(9600); // Initialize serial communication at 9600 baud
pinMode(sensorPin, INPUT); // Set the sensor pin as input
}
void loop() {
int sensorValue = analogRead(sensorPin); // Read the analog value from the sensor
float voltage = sensorValue * (5.0 / 1023.0); // Convert the reading to voltage
// Print the sensor value and voltage to the Serial Monitor
Serial.print("Sensor Value: ");
Serial.print(sensorValue);
Serial.print(" | Voltage: ");
Serial.print(voltage);
Serial.println("V");
delay(1000); // Wait for 1 second before the next reading
}
Troubleshooting and FAQs
Common Issues and Solutions
No Output or Incorrect Readings:
- Ensure the sensor is properly powered (3.3V or 5V).
- Check all connections for loose wires or incorrect pin assignments.
- Verify that the analog pin on the microcontroller is functioning correctly.
Fluctuating Readings:
- Ensure the sensor is inserted firmly into the soil.
- Use a stable power source to minimize noise in the readings.
- Avoid placing the sensor near sources of electrical interference.
Sensor Not Responding:
- Check for physical damage to the sensor or cable.
- Test the sensor with a multimeter to verify output voltage.
FAQs
Q: Can this sensor be used in hydroponics?
A: No, this sensor is designed for soil use and should not be submerged in water.
Q: How do I calibrate the sensor?
A: Measure the sensor's output voltage in completely dry soil and fully saturated soil. Use these values to map the sensor's output to moisture levels in your application.
Q: Is the sensor waterproof?
A: The sensor is water-resistant but not waterproof. Avoid submerging it in water or exposing it to prolonged moisture without protection.
Q: Can I use this sensor with a 3.3V microcontroller?
A: Yes, the sensor operates at 3.3V and is compatible with 3.3V microcontrollers like the ESP32 or Raspberry Pi Pico.
