How to Use ESP32 38 PINS: Examples, Pinouts, and Specs

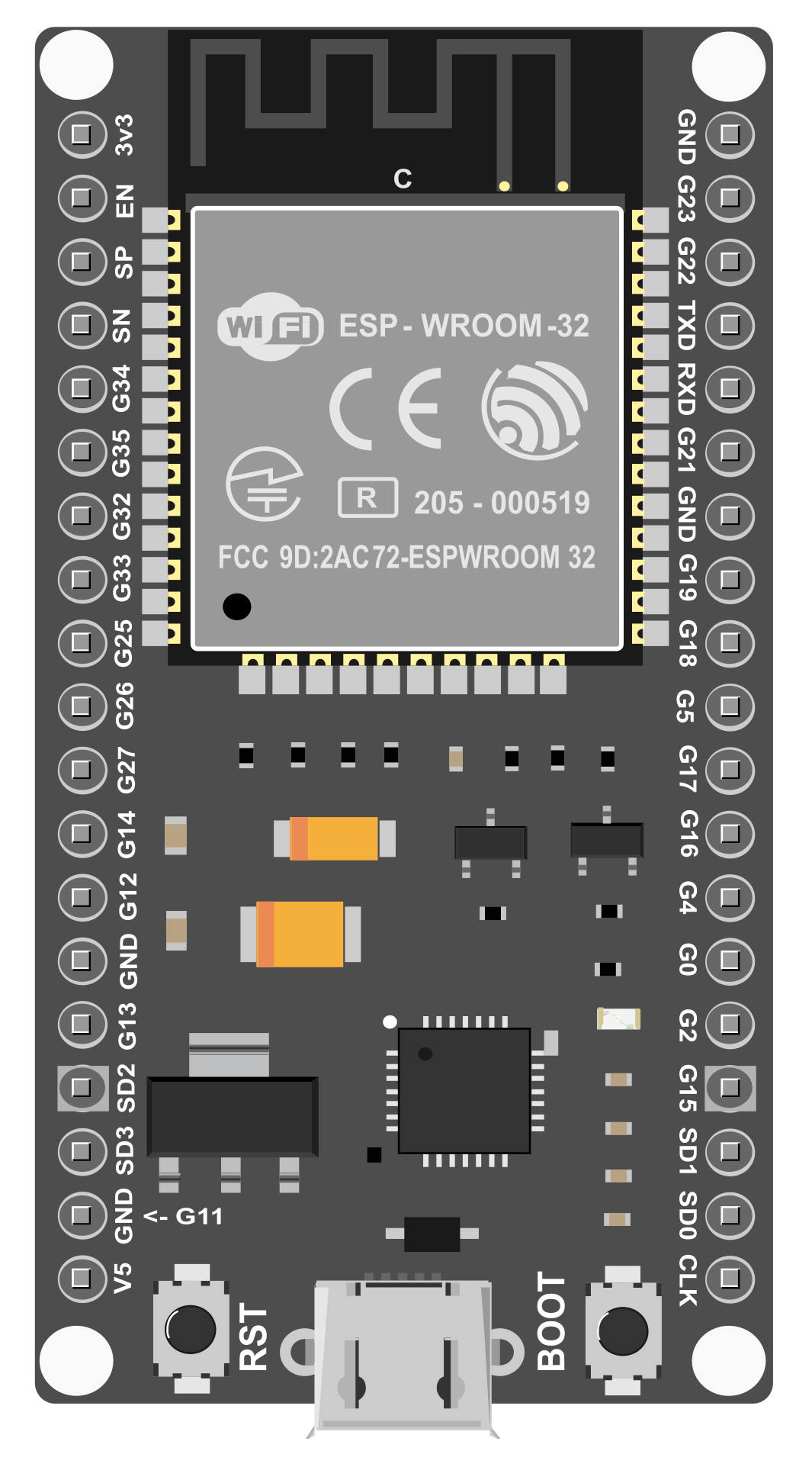

The ESP32 38 PINS is a versatile microcontroller designed for IoT applications and embedded systems. It features integrated Wi-Fi and Bluetooth capabilities, making it a powerful solution for wireless communication. With 38 GPIO pins, the ESP32 offers extensive input and output options, enabling developers to connect a wide range of sensors, actuators, and peripherals. Its high processing power, low energy consumption, and rich feature set make it suitable for smart home devices, wearables, industrial automation, and more.

The ESP32 38 PINS microcontroller is equipped with the following key technical features:

• Processor: Dual-core Xtensa® 32-bit LX6 CPU
• Clock Speed: Up to 240 MHz
• Flash Memory: 4 MB (varies by model)
• SRAM: 520 KB
• Wi-Fi: 802.11 b/g/n
• Bluetooth: v4.2 BR/EDR and BLE
• Operating Voltage: 3.3V
• GPIO Pins: 38 (multipurpose, including ADC, DAC, PWM, I2C, SPI, UART)
• ADC Channels: 18 (12-bit resolution)
• DAC Channels: 2
• PWM Outputs: Up to 16 channels
• Power Consumption: Ultra-low power in deep sleep mode (~10 µA)

The ESP32 38 PINS has 38 GPIO pins, each with multiple functions. Below is a summary of the pin configuration:

Note: Some GPIO pins have specific restrictions or are used during boot. Refer to the ESP32 datasheet for detailed pin behavior.

1. Powering the ESP32:

   • The ESP32 operates at 3.3V. Use a voltage regulator if your power source exceeds this voltage.
   • Connect the 3.3V pin to a stable power supply and GND to ground.

2. Programming the ESP32:

   • Use a USB-to-serial adapter or a development board with a built-in USB interface.
   • Install the ESP32 board package in the Arduino IDE or use the ESP-IDF framework for advanced development.
   • Connect the ESP32 to your computer via USB and select the appropriate COM port in the IDE.

3. Connecting Peripherals:

   • Use GPIO pins for digital input/output, ADC pins for analog input, and DAC pins for analog output.
   • For communication, use I2C, SPI, or UART pins as needed.

4. Uploading Code:

   • Write your code in the Arduino IDE or ESP-IDF.
   • Press the "Upload" button in the IDE. If required, hold the BOOT button on the ESP32 during the upload process.

The following example demonstrates how to blink an LED connected to GPIO2 of the ESP32:

// Define the GPIO pin where the LED is connected
const int ledPin = 2;

void setup() {
  // Set the LED pin as an output
  pinMode(ledPin, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(ledPin, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(ledPin, LOW);
  delay(1000); // Wait for 1 second
}

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the ESP32.
• Boot Mode Pins: Avoid pulling GPIO0, GPIO2, and GPIO15 to incorrect states during boot, as this may interfere with normal operation.
• Power Supply: Use a stable power source to prevent unexpected resets or malfunctions.
• Deep Sleep Mode: Utilize deep sleep mode for battery-powered applications to conserve energy.

1. ESP32 Not Detected by Computer:

   • Ensure the correct USB driver is installed for your USB-to-serial adapter.
   • Check the USB cable for damage or try a different cable.

2. Code Upload Fails:

   • Hold the BOOT button while uploading the code.
   • Verify the correct COM port and board type are selected in the IDE.

3. Wi-Fi Connection Issues:

   • Double-check the SSID and password in your code.
   • Ensure the Wi-Fi network is within range and not using unsupported security protocols.

4. GPIO Pin Not Working:

   • Verify the pin is not being used for another function (e.g., boot mode).
   • Check for loose connections or incorrect wiring.

Q: Can I power the ESP32 with a 5V source?
A: Yes, if you are using a development board with an onboard voltage regulator. Otherwise, use a 3.3V power source.

Q: How many devices can I connect via I2C?
A: The ESP32 supports multiple I2C devices, limited by the unique addresses of the devices and the bus capacitance.

Q: Can the ESP32 operate in both Wi-Fi and Bluetooth modes simultaneously?
A: Yes, the ESP32 supports simultaneous Wi-Fi and Bluetooth operation, but performance may vary depending on the workload.

Q: What is the maximum current output of a GPIO pin?
A: Each GPIO pin can source or sink up to 12 mA. For higher currents, use an external transistor or driver circuit.
