How to Use Arduino UNO: Examples, Pinouts, and Specs

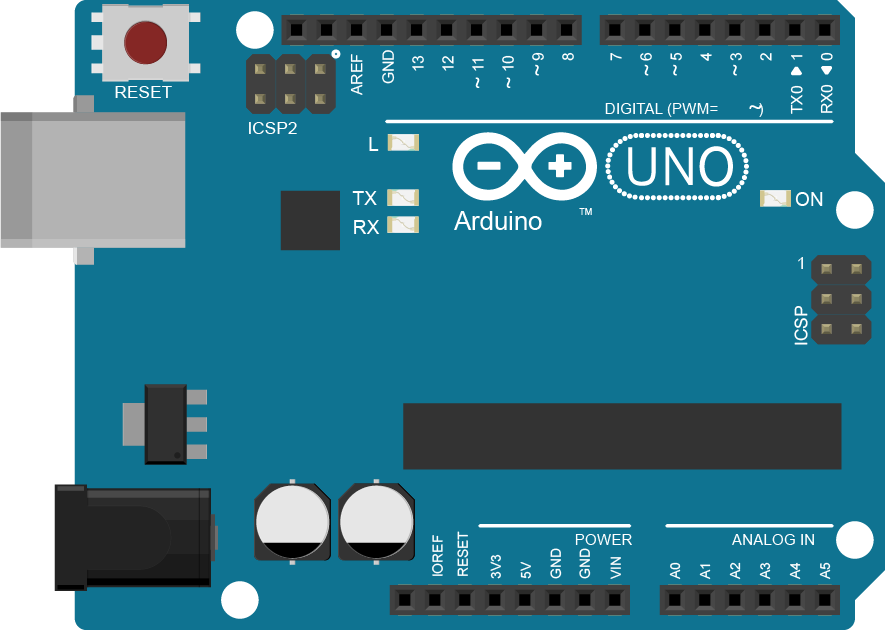

Image of Arduino UNO
Cirkit Designer LogoDesign with Arduino UNO in Cirkit Designer

Introduction

The Arduino UNO is a microcontroller board developed by Arduino and based on the ATmega328P microcontroller. It is one of the most popular and versatile development boards in the Arduino ecosystem, designed for both beginners and experienced developers. The board provides an easy-to-use platform for building digital devices and interactive objects that can sense and control the physical world.

Explore Projects Built with Arduino UNO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO and ESP32 CAM Controlled Fire Detection and Alert System with GSM Notification
Image of ASO BOT: A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of sensors, actuators, and modules. It includes a 5-channel fire sensor, temperature and humidity sensor (DHT11), two buzzers, and two servomotors controlled by an L293D driver shield. The circuit also integrates an ESP32 CAM for wireless capabilities, a 2-channel relay module controlling a mini water pump, an LCD display for user interface, a SIM 800L GSM module for cellular connectivity, and is powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Access Control System with Data Logging
Image of Research Internal Design (2): A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Home Automation System with I2C LCD and RTC
Image of Alarm of RSU Hymn: A project utilizing Arduino UNO in a practical application
This circuit features an Arduino UNO microcontroller interfaced with a 16x2 I2C LCD for display, a DS1302 RTC for real-time clock functionality, and a 1-channel relay for controlling high-power devices. Additionally, it includes multiple pushbuttons for user input and is powered by a 3xAAA battery pack, USB power, or a 5V adapter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
Image of WORK_1: A project utilizing Arduino UNO in a practical application
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Arduino UNO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ASO BOT: A project utilizing Arduino UNO in a practical application
Arduino UNO and ESP32 CAM Controlled Fire Detection and Alert System with GSM Notification
This circuit features an Arduino UNO as the central microcontroller, interfaced with a variety of sensors, actuators, and modules. It includes a 5-channel fire sensor, temperature and humidity sensor (DHT11), two buzzers, and two servomotors controlled by an L293D driver shield. The circuit also integrates an ESP32 CAM for wireless capabilities, a 2-channel relay module controlling a mini water pump, an LCD display for user interface, a SIM 800L GSM module for cellular connectivity, and is powered by a 9V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Research Internal Design (2): A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Access Control System with Data Logging
This circuit features an Arduino UNO microcontroller as the central processing unit, interfacing with a variety of peripherals. It includes a red LED, a buzzer, an I2C LCD screen, a fingerprint scanner, a thermal printer, a real-time clock (RTC) module, and a micro SD card module. The Arduino controls these components to create a multifunctional system capable of user interaction, data logging, timekeeping, and biometric input processing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Alarm of RSU Hymn: A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Smart Home Automation System with I2C LCD and RTC
This circuit features an Arduino UNO microcontroller interfaced with a 16x2 I2C LCD for display, a DS1302 RTC for real-time clock functionality, and a 1-channel relay for controlling high-power devices. Additionally, it includes multiple pushbuttons for user input and is powered by a 3xAAA battery pack, USB power, or a 5V adapter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of WORK_1: A project utilizing Arduino UNO in a practical application
Arduino UNO-Based Smart Home Automation System with Bluetooth Control
This circuit uses an Arduino UNO to control various components including a servo motor, an LED, an RGB LED, a buzzer, and an LCD display based on inputs from a photoresistor, a DHT22 temperature and humidity sensor, and an MQ-2 gas sensor. Additionally, a Bluetooth module allows for remote control via a mobile application.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Prototyping and development of IoT (Internet of Things) devices
  • Robotics and automation projects
  • Sensor-based data acquisition systems
  • Home automation and smart devices
  • Educational tools for learning programming and electronics

Technical Specifications

The Arduino UNO is equipped with a range of features that make it suitable for a variety of applications. Below are its key technical details:

Key Technical Details

Specification Value
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-20V
Digital I/O Pins 14 (6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 20 mA
Flash Memory 32 KB (0.5 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connector Type-B
Dimensions 68.6 mm x 53.4 mm
Weight 25 g

Pin Configuration and Descriptions

The Arduino UNO has a total of 28 pins, including digital, analog, power, and communication pins. Below is a detailed description of the pin configuration:

Digital Pins

Pin Number Functionality
0 (RX) Serial Receive (UART)
1 (TX) Serial Transmit (UART)
2-13 General-purpose digital I/O pins
3, 5, 6, 9, 10, 11 PWM output pins

Analog Pins

Pin Number Functionality
A0-A5 Analog input pins (10-bit ADC)

Power Pins

Pin Name Functionality
VIN Input voltage to the board
5V Regulated 5V output
3.3V Regulated 3.3V output
GND Ground
RESET Resets the microcontroller

Communication Pins

Pin Name Functionality
SDA I2C Data Line
SCL I2C Clock Line
SPI (10-13) SPI Communication

Usage Instructions

The Arduino UNO is designed to be user-friendly and can be programmed using the Arduino IDE. Below are the steps to use the Arduino UNO in a circuit:

Step 1: Setting Up the Arduino IDE

  1. Download and install the Arduino IDE from the official Arduino website.
  2. Connect the Arduino UNO to your computer using a USB Type-B cable.
  3. Open the Arduino IDE and select the correct board and port:
    • Go to Tools > Board > Arduino UNO.
    • Go to Tools > Port and select the port corresponding to your Arduino UNO.

Step 2: Writing and Uploading Code

  1. Write your code in the Arduino IDE. For example, the following code blinks an LED connected to pin 13:
// Blink an LED connected to pin 13
void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}
  1. Click the Upload button in the Arduino IDE to upload the code to the board.

Step 3: Connecting Components

  • Use jumper wires to connect sensors, actuators, or other components to the appropriate pins on the Arduino UNO.
  • Ensure that the power supply voltage and current requirements of the connected components are within the board's specifications.

Important Considerations and Best Practices

  • Avoid drawing more than 20 mA from any single I/O pin to prevent damage to the microcontroller.
  • Use external power (via the VIN pin or DC barrel jack) if the connected components require more power than the USB port can provide.
  • Always double-check your wiring to avoid short circuits or incorrect connections.

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Arduino UNO is not detected by the computer.

    • Ensure the USB cable is properly connected and functional.
    • Install the necessary drivers for the Arduino UNO (if not automatically installed).
    • Check that the correct port is selected in the Arduino IDE.
  2. The code does not upload to the board.

    • Verify that the correct board and port are selected in the Arduino IDE.
    • Press the RESET button on the board and try uploading the code again.
    • Ensure no other application is using the same COM port.
  3. The connected components are not working as expected.

    • Check the wiring and ensure all connections are secure.
    • Verify that the components are compatible with the Arduino UNO's voltage and current ratings.
    • Use a multimeter to test the voltage and continuity of the circuit.

FAQs

  1. Can the Arduino UNO be powered by batteries?

    • Yes, the Arduino UNO can be powered using a 9V battery connected to the DC barrel jack or VIN pin.
  2. What is the maximum current the Arduino UNO can supply?

    • The 5V pin can supply up to 500 mA when powered via USB, and up to 1A when powered via an external power source.
  3. Can I use the Arduino UNO for wireless communication?

    • Yes, you can use wireless modules like the HC-05 Bluetooth module or ESP8266 Wi-Fi module with the Arduino UNO.

By following this documentation, users can effectively utilize the Arduino UNO for a wide range of projects and applications.
