How to Use AC to 12V DC 20A: Examples, Pinouts, and Specs

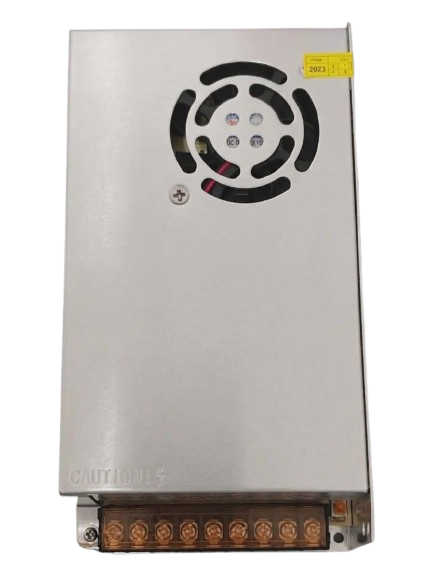

The WEIYU S120-12 240W is a high-performance AC to DC power supply unit designed to convert standard mains alternating current (AC) into a stable 12V direct current (DC) output. With a maximum output current of 20A, this power supply is ideal for powering a wide range of electronic devices, including LED lighting systems, industrial equipment, and high-current DC motors. Its robust design ensures reliable operation in demanding environments.

• LED strip lighting and signage
• CCTV camera systems
• Industrial automation and control systems
• 3D printers and CNC machines
• High-current DC motor drives

The WEIYU S120-12 240W power supply features screw terminal connections for both input and output. Below is the pin configuration:

1. Input Connection:

   • Ensure the input voltage selector switch is set to the correct position (110V or 220V) based on your mains supply.
   • Connect the live (L), neutral (N), and ground (GND) wires from the AC mains to the corresponding input terminals on the power supply.

2. Output Connection:

   • Connect the V+ and V- terminals to the load (e.g., LED strips, motors, or other devices requiring 12V DC).
   • Ensure the load does not exceed the maximum output current of 20A.

3. Voltage Adjustment:

   • If necessary, use a small screwdriver to adjust the potentiometer to fine-tune the output voltage within the ±10% range.

4. Power On:

   • After all connections are secure, power on the unit by connecting it to the mains supply. The built-in fan will activate to maintain optimal operating temperature.

• Overload Protection: Ensure the total load does not exceed 240W to prevent damage to the power supply.
• Ventilation: Install the power supply in a well-ventilated area to avoid overheating.
• Polarity: Double-check the polarity of the output connections to prevent damage to connected devices.
• Safety: Always disconnect the power supply from the mains before making any wiring changes.

The WEIYU S120-12 240W can be used to power an Arduino UNO and other peripherals. Below is an example of how to connect it:

1. Connect the V+ terminal to the Arduino's VIN pin.
2. Connect the V- terminal to the Arduino's GND pin.
3. Ensure the output voltage is set to 12V before powering the Arduino.

// Example code to blink an LED connected to pin 13
// Ensure the Arduino is powered via the WEIYU S120-12 240W power supply

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Can I use this power supply for a 24V device?

   • No, this power supply is designed for 12V DC output only. Using it for a 24V device may damage the device.

2. Is the power supply waterproof?

   • No, the WEIYU S120-12 240W is not waterproof. It should be used in a dry environment.

3. Can I connect multiple devices to this power supply?

   • Yes, as long as the total current draw does not exceed 20A.

4. How do I know if the power supply is overloaded?

   • The power supply may shut down or the output voltage may drop significantly. Reduce the load to resolve the issue.

By following this documentation, users can safely and effectively utilize the WEIYU S120-12 240W power supply for their electronic projects and devices.
