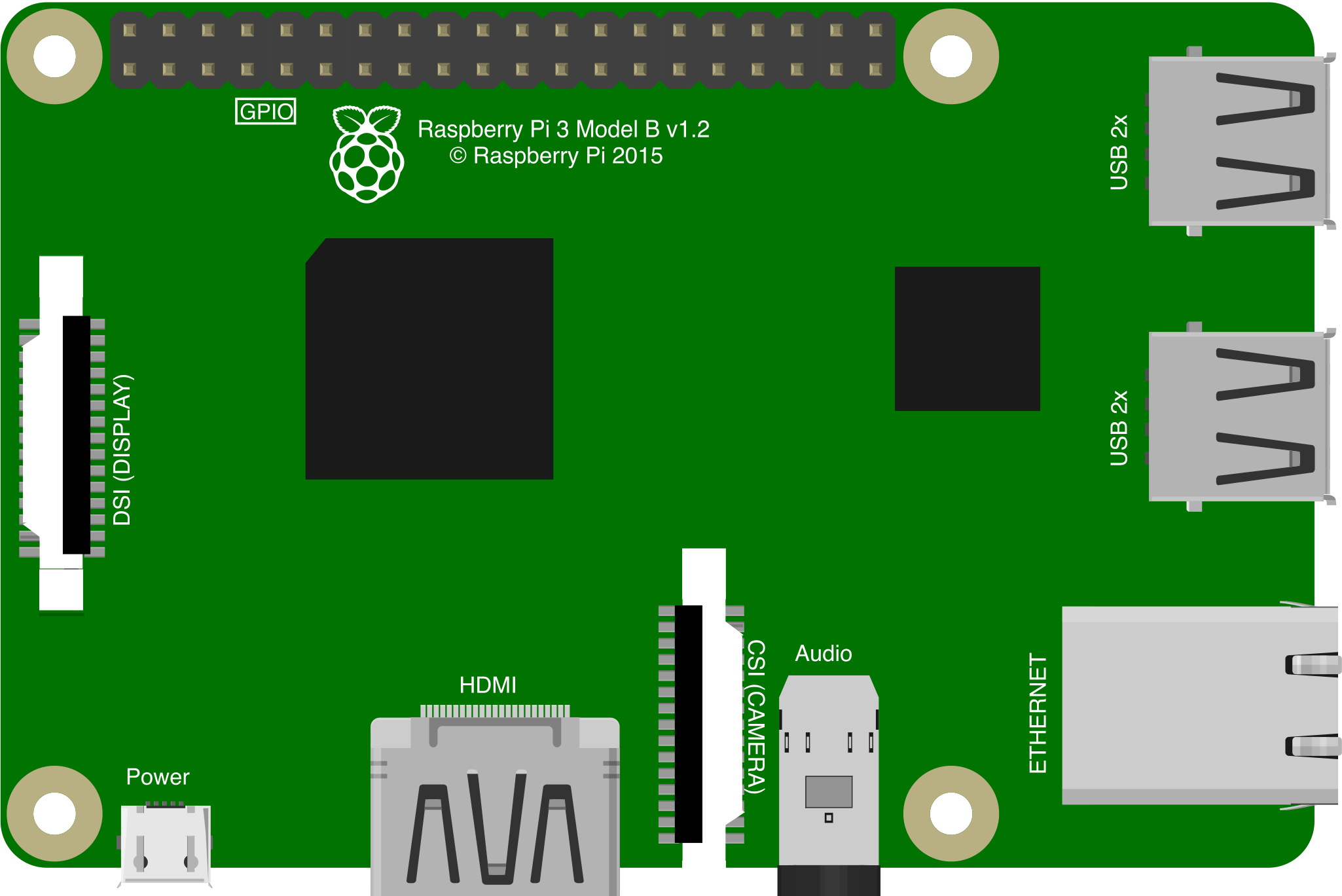

The Raspberry Pi 3, manufactured by Raspberry Pi, is a small, affordable single-board computer designed for a wide range of applications. It features a quad-core processor, HDMI output, USB ports, and GPIO pins, making it a versatile tool for programming, robotics, media centers, and hardware interfacing. Its compact size and affordability make it an excellent choice for hobbyists, educators, and professionals alike.

• Programming and Education: Ideal for learning programming languages like Python, Java, and C++.
• IoT Projects: Used in Internet of Things (IoT) applications for data collection and control.
• Media Centers: Can be configured as a media center using software like Kodi.
• Robotics: Serves as the brain for robots, enabling control and automation.
• Home Automation: Powers smart home systems for controlling lights, appliances, and security.
• Prototyping: Used for rapid prototyping of hardware and software projects.

The Raspberry Pi 3 is equipped with powerful hardware and versatile connectivity options. Below are its key technical details:

• Processor: 1.2 GHz 64-bit quad-core ARM Cortex-A53
• RAM: 1 GB LPDDR2
• Storage: MicroSD card slot for OS and data storage
• Connectivity:
  • 802.11n Wi-Fi
  • Bluetooth 4.1
  • Ethernet port
• Ports:
  • 4 USB 2.0 ports
  • HDMI output
  • 3.5mm audio jack
• GPIO: 40-pin GPIO header
• Power Supply: 5V/2.5A via micro-USB
• Dimensions: 85.6mm x 56.5mm x 17mm

The Raspberry Pi 3 features a 40-pin GPIO header for hardware interfacing. Below is the pinout:

For the full GPIO pinout, refer to the official Raspberry Pi documentation.

1. Powering the Raspberry Pi:

   • Use a 5V/2.5A micro-USB power supply to power the board.
   • Ensure the power supply is stable to avoid performance issues.

2. Connecting Peripherals:

   • Attach a monitor via the HDMI port.
   • Connect a keyboard and mouse to the USB ports.
   • Insert a microSD card with a pre-installed operating system (e.g., Raspberry Pi OS).

3. Using GPIO Pins:

   • Use the GPIO pins to interface with external hardware like LEDs, sensors, and motors.
   • Be cautious about voltage levels; GPIO pins operate at 3.3V.

4. Networking:

   • Connect to Wi-Fi using the built-in 802.11n module or use the Ethernet port for wired connections.

• Static Protection: Handle the board with care to avoid static discharge damage.
• Cooling: Consider using a heatsink or fan for prolonged use to prevent overheating.
• Power Supply: Use a high-quality power supply to ensure stable operation.
• GPIO Safety: Avoid connecting GPIO pins directly to high voltages or currents.

Below is an example of how to blink an LED connected to GPIO pin 17 using Python:

import RPi.GPIO as GPIO import time

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(17, GPIO.OUT) # Set GPIO pin 17 as an output

try: while True: GPIO.output(17, GPIO.HIGH) # Turn LED on time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()

1. Connect an LED to GPIO pin 17 with a 330-ohm resistor in series.
2. Save the code to a file (e.g., blink.py).
3. Run the script using the command: python3 blink.py.

1. The Raspberry Pi does not boot:

   • Ensure the microSD card is properly inserted and contains a valid OS image.
   • Check the power supply for sufficient voltage and current.

2. Wi-Fi connectivity issues:

   • Verify the Wi-Fi credentials are correct.
   • Ensure the Raspberry Pi is within range of the Wi-Fi router.

3. Overheating:

   • Use a heatsink or fan to cool the board.
   • Avoid placing the Raspberry Pi in enclosed spaces without ventilation.

4. GPIO pins not working:

   • Double-check the pin connections and ensure the correct pin numbering is used in the code.
   • Verify that the GPIO pins are not damaged by overvoltage.

• Q: Can I use the Raspberry Pi 3 as a desktop computer?

  • A: Yes, it can be used as a basic desktop computer for web browsing, document editing, and programming.

• Q: What operating systems are compatible with the Raspberry Pi 3?

  • A: Raspberry Pi OS, Ubuntu, and other Linux-based distributions are compatible.

• Q: How do I update the Raspberry Pi OS?

  • A: Use the following commands in the terminal:

    sudo apt update
    sudo apt upgrade


• Q: Can I power the Raspberry Pi 3 via GPIO pins?

  • A: Yes, you can supply 5V to the 5V GPIO pin, but ensure proper voltage regulation.

This concludes the documentation for the Raspberry Pi 3. For further details, refer to the official Raspberry Pi website.
