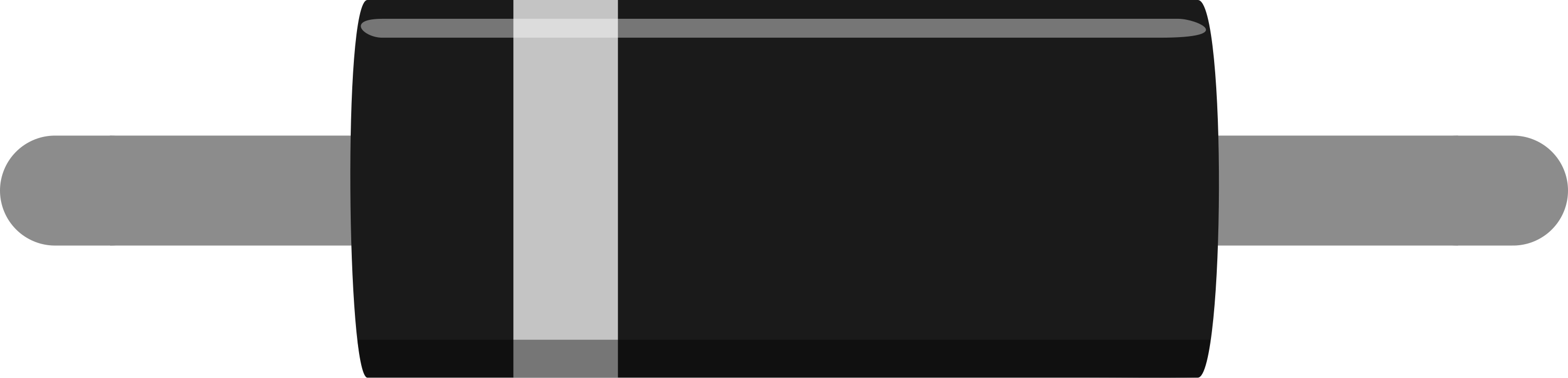

Image of Diode
Cirkit Designer LogoDesign with Diode in Cirkit Designer

Introduction

A diode is a semiconductor device that allows current to flow in one direction only, acting as a one-way valve for electrical current. It is one of the most fundamental components in electronics and is widely used in various applications. Diodes are essential for rectification, signal demodulation, voltage regulation, and circuit protection.

Explore Projects Built with Diode

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Resistor-Diode Circuit with Multimeter Current Measurement
Image of diode: A project utilizing Diode in a practical application
This circuit consists of a power supply connected in series with a resistor and a diode. A multimeter is connected across the resistor to measure the current flowing through the resistor. The diode ensures current flows in one direction, protecting the circuit from potential reverse current damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Diode-Resistor Network for Voltage Regulation
Image of Feed bot cirkit: A project utilizing Diode in a practical application
This circuit consists of two parallel branches, each containing an 820 Ohm resistor in series with a diode. The anodes of both diodes are connected together, forming a common node.
Cirkit Designer LogoOpen Project in Cirkit Designer
Diode and Capacitor-Based Voltage Regulation Circuit
Image of Pavetra#2: A project utilizing Diode in a practical application
This circuit is a complex network of diodes and electrolytic capacitors connected to two terminal PCB 2-pin connectors. The diodes are arranged in a series-parallel configuration, while the capacitors are connected in a manner that suggests filtering or energy storage purposes. The overall design appears to be aimed at rectification and smoothing of an input signal.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC Power Supply with Diode Rectification and Bulb Indicator
Image of susa: A project utilizing Diode in a practical application
This circuit is a simple AC-powered light with a diode in series. The diode is connected in series with the AC supply's positive terminal and the AC bulb's neutral terminal, while the bulb's positive terminal is connected to the AC supply's negative terminal. The diode will rectify the AC current, allowing only one half of the AC waveform to pass through to the bulb, causing it to flicker at a rate of half the AC frequency.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Diode

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of diode: A project utilizing Diode in a practical application
Resistor-Diode Circuit with Multimeter Current Measurement
This circuit consists of a power supply connected in series with a resistor and a diode. A multimeter is connected across the resistor to measure the current flowing through the resistor. The diode ensures current flows in one direction, protecting the circuit from potential reverse current damage.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Feed bot cirkit: A project utilizing Diode in a practical application
Diode-Resistor Network for Voltage Regulation
This circuit consists of two parallel branches, each containing an 820 Ohm resistor in series with a diode. The anodes of both diodes are connected together, forming a common node.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Pavetra#2: A project utilizing Diode in a practical application
Diode and Capacitor-Based Voltage Regulation Circuit
This circuit is a complex network of diodes and electrolytic capacitors connected to two terminal PCB 2-pin connectors. The diodes are arranged in a series-parallel configuration, while the capacitors are connected in a manner that suggests filtering or energy storage purposes. The overall design appears to be aimed at rectification and smoothing of an input signal.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of susa: A project utilizing Diode in a practical application
AC Power Supply with Diode Rectification and Bulb Indicator
This circuit is a simple AC-powered light with a diode in series. The diode is connected in series with the AC supply's positive terminal and the AC bulb's neutral terminal, while the bulb's positive terminal is connected to the AC supply's negative terminal. The diode will rectify the AC current, allowing only one half of the AC waveform to pass through to the bulb, causing it to flicker at a rate of half the AC frequency.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Rectification: Converting AC (alternating current) to DC (direct current) in power supplies.
  • Signal Demodulation: Extracting information from modulated signals in communication systems.
  • Voltage Regulation: Stabilizing voltage levels in circuits.
  • Circuit Protection: Preventing reverse polarity damage in sensitive components.
  • LEDs: Light-emitting diodes are specialized diodes used for illumination and indicators.

Technical Specifications

Below are the general technical specifications for a standard silicon diode (e.g., 1N4007). Specifications may vary depending on the specific diode type.

Key Technical Details

  • Forward Voltage Drop (Vf): ~0.7V (silicon diode), ~0.3V (germanium diode)
  • Maximum Reverse Voltage (Vr): 1000V (for 1N4007)
  • Maximum Forward Current (If): 1A (for 1N4007)
  • Power Dissipation: Typically 3W
  • Reverse Leakage Current (Ir): ~5µA at Vr max
  • Operating Temperature Range: -65°C to +150°C

Pin Configuration and Descriptions

Pin Name Description Symbol on Diode
Anode Positive terminal; current enters here A
Cathode Negative terminal; current exits here K

The cathode is typically marked with a stripe on the diode body.

Usage Instructions

How to Use the Diode in a Circuit

  1. Identify the Terminals: Locate the cathode (marked with a stripe) and the anode.
  2. Connect in the Correct Orientation:
    • For forward bias (current flows): Connect the anode to the positive voltage and the cathode to the negative voltage.
    • For reverse bias (blocks current): Reverse the connections.
  3. Use a Resistor if Necessary: When using a diode in series with an LED or other sensitive components, include a current-limiting resistor to prevent damage.
  4. Rectification Example: Use four diodes in a bridge rectifier configuration to convert AC to DC.

Important Considerations and Best Practices

  • Avoid Exceeding Ratings: Ensure the diode's maximum reverse voltage and forward current ratings are not exceeded.
  • Heat Dissipation: Use heat sinks or proper ventilation if the diode operates near its power dissipation limit.
  • Reverse Polarity Protection: Place a diode in series with the power supply to protect circuits from reverse polarity.

Example: Connecting a Diode to an Arduino UNO

Below is an example of using a diode to protect an Arduino UNO from reverse polarity:

/*
 * This example demonstrates how to use a diode for reverse polarity protection.
 * A 1N4007 diode is placed in series with the Arduino's power input.
 */

void setup() {
  // No specific code is needed for the diode itself.
  // This is a hardware-only protection mechanism.
}

void loop() {
  // Your main Arduino code goes here.
}

Troubleshooting and FAQs

Common Issues Users Might Face

  1. Diode Not Conducting Current:

    • Cause: The diode may be connected in reverse bias.
    • Solution: Verify the orientation of the anode and cathode.
  2. Excessive Heat:

    • Cause: The diode is operating near or beyond its power dissipation limit.
    • Solution: Use a diode with higher current and voltage ratings or add a heat sink.
  3. Voltage Drop Too High:

    • Cause: Forward voltage drop is inherent to diodes.
    • Solution: Use a Schottky diode for a lower forward voltage drop (~0.2V–0.4V).
  4. Circuit Not Working After Installation:

    • Cause: Incorrect placement or damaged diode.
    • Solution: Double-check the circuit connections and test the diode with a multimeter.

FAQs

  • Q: Can I use any diode for rectification?
    A: Not all diodes are suitable for rectification. Use rectifier diodes like 1N4007 for power applications.

  • Q: What is the difference between a standard diode and a Zener diode?
    A: A standard diode allows current in one direction only, while a Zener diode can conduct in reverse when the voltage exceeds its breakdown voltage.

  • Q: How do I test a diode?
    A: Use the diode test mode on a multimeter. A good diode will show a low voltage drop (~0.7V for silicon) in forward bias and no conduction in reverse bias.

By following this documentation, you can effectively use diodes in your electronic projects and troubleshoot common issues.
