How to Use Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A: Examples, Pinouts, and Specs

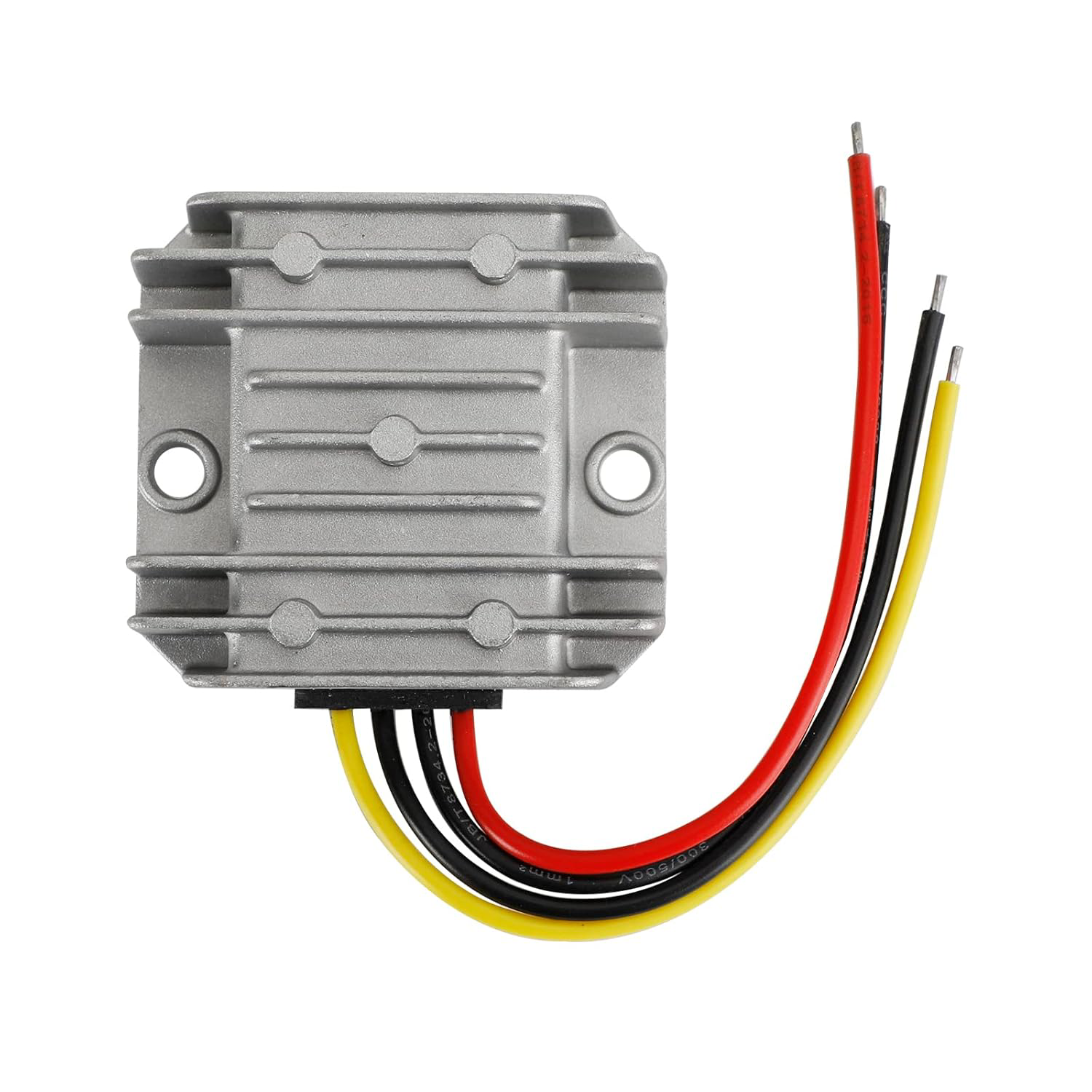

Image of Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A
Cirkit Designer LogoDesign with Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A in Cirkit Designer

Introduction

The Artudatech Step Down DC/DC Buck Converter (Part ID: B0BQQVRTX7) is a high-efficiency power converter designed to step down a higher DC voltage (12V or 24V) to a stable 7.5V output. With a maximum output current of 10A, this converter is ideal for powering devices that require a consistent 7.5V supply, such as automotive electronics, LED lighting, and industrial equipment.

Explore Projects Built with Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB Power Supply with Overcurrent Protection
Image of USB Charging port: A project utilizing Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A in a practical application
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Mini ups: A project utilizing Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test 1 ih: A project utilizing Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of USB Charging port: A project utilizing Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A in a practical application
USB Power Supply with Overcurrent Protection
This circuit is designed to step down voltage from a 12V battery to a lower voltage suitable for USB devices. It includes a buck converter connected to the battery through a fuse and fuse holder for overcurrent protection. The output of the buck converter is connected to a USB female port, providing a regulated power supply for USB-powered devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing Step Down DC/DC Buck Converter 12V/24V to 7.5V 10A in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Automotive Systems: Powering 7.5V devices from a 12V or 24V car battery.
  • LED Lighting: Supplying stable voltage to LED strips or modules.
  • Industrial Equipment: Providing regulated power to sensors, controllers, or other devices.
  • DIY Electronics Projects: Used in custom circuits requiring a 7.5V power source.

Technical Specifications

The following table outlines the key technical details of the Artudatech Step Down DC/DC Buck Converter:

Parameter Value
Input Voltage Range 12V to 24V DC
Output Voltage 7.5V DC
Maximum Output Current 10A
Efficiency Up to 95%
Operating Temperature -40°C to +85°C
Dimensions 74mm x 74mm x 32mm
Weight 120g
Protection Features Overcurrent, Overvoltage,
Overtemperature, Short Circuit

Pin Configuration and Descriptions

The converter has four connection terminals for input and output. The table below describes each terminal:

Pin Label Description
1 VIN+ Positive input voltage terminal (12V or 24V DC).
2 VIN- Negative input voltage terminal (ground).
3 VOUT+ Positive output voltage terminal (7.5V DC).
4 VOUT- Negative output voltage terminal (ground).

Usage Instructions

How to Use the Component in a Circuit

  1. Connect the Input Voltage:
    • Attach the positive terminal of your DC power source (12V or 24V) to the VIN+ pin.
    • Connect the negative terminal of your DC power source to the VIN- pin.
  2. Connect the Output Load:
    • Connect the positive terminal of your load (device requiring 7.5V) to the VOUT+ pin.
    • Connect the negative terminal of your load to the VOUT- pin.
  3. Verify Connections:
    • Double-check all connections to ensure proper polarity and secure wiring.
  4. Power On:
    • Turn on the DC power source. The converter will step down the input voltage to a stable 7.5V output.

Important Considerations and Best Practices

  • Input Voltage Range: Ensure the input voltage is within the specified range (12V to 24V). Exceeding this range may damage the converter.
  • Heat Dissipation: At high currents (close to 10A), the converter may generate heat. Use adequate ventilation or a heatsink to prevent overheating.
  • Load Requirements: Ensure the connected load does not exceed the maximum output current of 10A.
  • Polarity: Always connect the input and output terminals with the correct polarity to avoid damage.
  • Testing: Before connecting sensitive devices, test the output voltage with a multimeter to confirm it is 7.5V.

Example: Using the Converter with an Arduino UNO

The converter can be used to power an Arduino UNO, which typically requires 7-12V input. Below is an example of how to connect the converter to an Arduino UNO:

  1. Connect the VOUT+ pin of the converter to the Arduino's VIN pin.
  2. Connect the VOUT- pin of the converter to the Arduino's GND pin.
  3. Ensure the input voltage to the converter is within the 12V to 24V range.

Here is a simple Arduino sketch to blink an LED, powered by the converter:

// This sketch blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the Arduino is powered by the Step Down DC/DC Buck Converter.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Incorrect wiring or insufficient input voltage.
    • Solution: Verify all connections and ensure the input voltage is within the 12V to 24V range.
  2. Overheating:

    • Cause: High current draw or poor ventilation.
    • Solution: Reduce the load current or improve heat dissipation with a heatsink or fan.
  3. Output Voltage Not 7.5V:

    • Cause: Faulty converter or incorrect input voltage.
    • Solution: Test the input voltage and replace the converter if necessary.
  4. Device Not Powering On:

    • Cause: Load exceeds the maximum current rating.
    • Solution: Ensure the connected load does not draw more than 10A.

FAQs

  • Q: Can this converter be used with a 9V input?

    • A: No, the input voltage must be between 12V and 24V for proper operation.
  • Q: Is the output voltage adjustable?

    • A: No, the output voltage is fixed at 7.5V.
  • Q: Does the converter have reverse polarity protection?

    • A: No, reverse polarity may damage the converter. Always double-check connections.
  • Q: Can I use this converter to charge a battery?

    • A: Yes, but ensure the battery's charging voltage and current requirements match the converter's output.

By following this documentation, users can effectively integrate the Artudatech Step Down DC/DC Buck Converter into their projects and troubleshoot common issues.
