How to Use IEC320 C14 Power Inlet: Examples, Pinouts, and Specs
Design with IEC320 C14 Power Inlet in Cirkit DesignerIntroduction

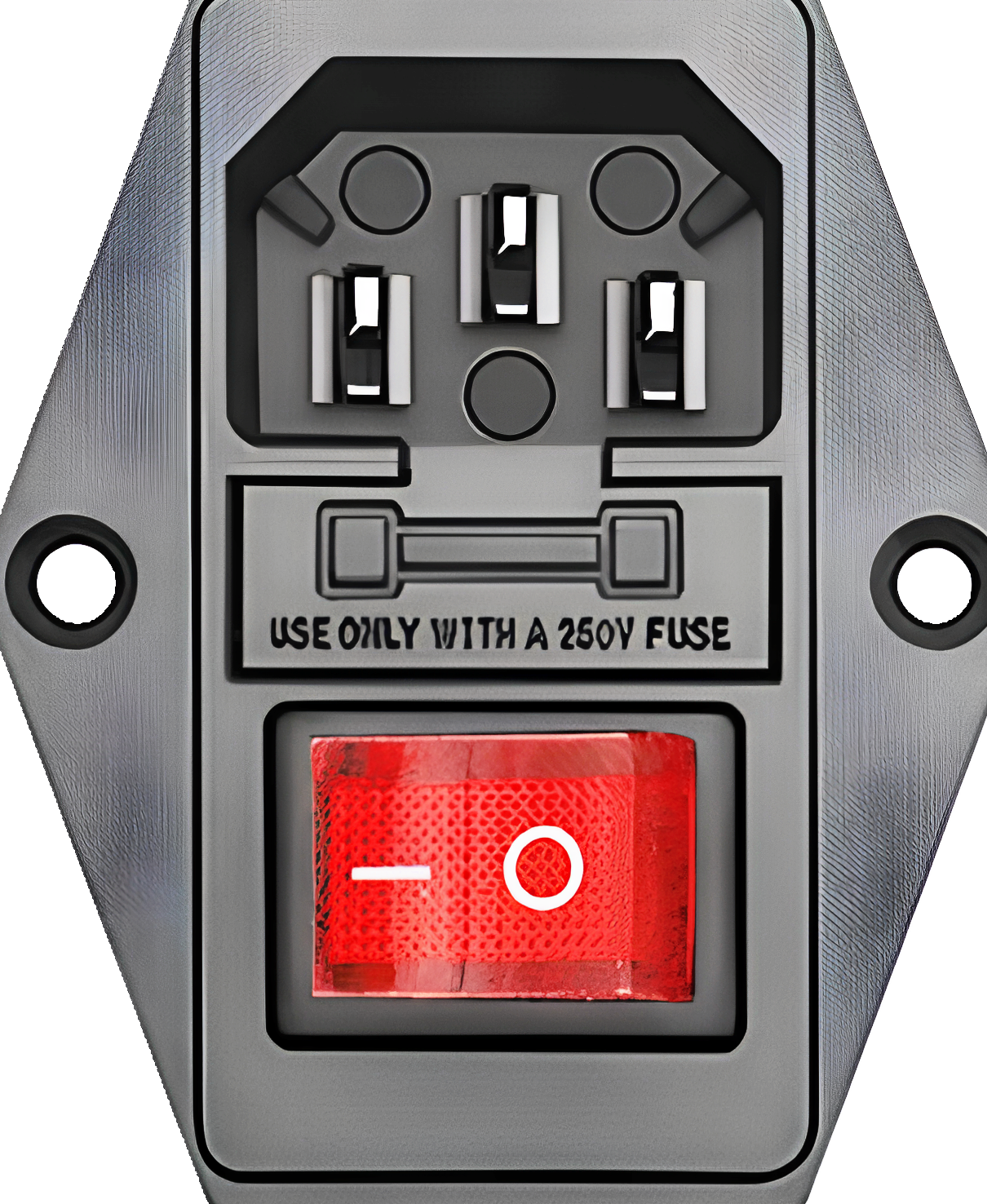

The IEC320 C14 Power Inlet is a standardized electrical connector commonly used for connecting power cords to electronic devices. It is widely recognized for its reliability and ease of use in providing AC power to equipment. This component is typically found in computers, power supplies, servers, and other electronic devices that require a secure and standardized power connection.
Explore Projects Built with IEC320 C14 Power Inlet
Modular Power Distribution System with Multiple SMPS Units and 120V Outlet
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Open Project in Cirkit DesignerIndustrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Open Project in Cirkit DesignerDual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Open Project in Cirkit Designer240V to 12V Power Conversion Circuit with Stopkontak
This circuit converts a 240V AC power source to a 12V DC output using a 12V adapter. The 240V AC power source is connected to a stopkontak, which then supplies the 12V adapter with the necessary AC voltage to produce a 12V DC output.
Open Project in Cirkit DesignerExplore Projects Built with IEC320 C14 Power Inlet
Modular Power Distribution System with Multiple SMPS Units and 120V Outlet
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Open Project in Cirkit DesignerIndustrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Open Project in Cirkit DesignerDual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Open Project in Cirkit Designer240V to 12V Power Conversion Circuit with Stopkontak
This circuit converts a 240V AC power source to a 12V DC output using a 12V adapter. The 240V AC power source is connected to a stopkontak, which then supplies the 12V adapter with the necessary AC voltage to produce a 12V DC output.
Open Project in Cirkit DesignerCommon Applications and Use Cases
- Desktop computers and laptops
- Power supply units (PSUs)
- Uninterruptible Power Supplies (UPS)
- Audio and video equipment
- Industrial machinery
- Test and measurement devices
Technical Specifications
The IEC320 C14 Power Inlet adheres to international standards, ensuring compatibility and safety in a wide range of applications. Below are the key technical details:
General Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 250V AC |
| Rated Current | 10A or 15A (depending on model) |
| Operating Frequency | 50/60 Hz |
| Connector Type | Male (inlet) |
| Mounting Style | Panel mount |
| Material (Housing) | Thermoplastic (UL94V-0 rated) |
| Contact Material | Brass or copper alloy |
| Temperature Range | -25°C to +70°C |
| Compliance Standards | IEC 60320, UL, CSA, VDE |
Pin Configuration and Descriptions
The IEC320 C14 Power Inlet has three pins, which are configured as follows:
| Pin Number | Name | Description |
|---|---|---|
| 1 | Line (L) | Live wire carrying AC voltage |
| 2 | Neutral (N) | Neutral wire completing the circuit |
| 3 | Earth (E) | Ground connection for safety |
Usage Instructions
How to Use the IEC320 C14 Power Inlet in a Circuit
Mounting the Inlet:
- Secure the IEC320 C14 Power Inlet to the device's panel using screws or snap-fit mounting, depending on the model.
- Ensure the inlet is properly aligned and securely fastened to prevent movement during operation.
Wiring the Inlet:
- Connect the Line (L) pin to the live wire of the AC power source.
- Connect the Neutral (N) pin to the neutral wire of the AC power source.
- Connect the Earth (E) pin to the ground wire for safety.
- Use insulated crimp terminals or solder connections to ensure a secure and reliable connection.
Testing the Connection:
- After wiring, use a multimeter to verify continuity and proper connections.
- Ensure there are no short circuits between the pins.
Connecting to a Power Cord:
- Insert a compatible IEC320 C13 power cord into the C14 inlet.
- Ensure the connection is firm and secure to prevent accidental disconnection.
Important Considerations and Best Practices
- Always ensure the power is turned off before wiring or handling the inlet.
- Use appropriately rated wires and connectors to handle the current and voltage requirements.
- Verify that the inlet is compliant with local electrical safety standards.
- Avoid exposing the inlet to moisture or extreme temperatures to prevent damage.
- For high-power applications, ensure proper grounding to avoid electrical hazards.
Troubleshooting and FAQs
Common Issues and Solutions
| Issue | Possible Cause | Solution |
|---|---|---|
| No power to the device | Loose or incorrect wiring | Verify wiring connections and tighten |
| Overheating of the inlet | Excessive current or poor connections | Check current rating and connections |
| Sparks or arcing during connection | Damaged power cord or inlet contacts | Replace damaged components |
| Loose power cord connection | Worn or damaged inlet contacts | Replace the IEC320 C14 inlet |
FAQs
Q1: Can the IEC320 C14 Power Inlet handle 110V AC?
A1: Yes, the inlet is designed to handle a wide range of voltages, including 110V AC and 250V AC, as long as the current rating is not exceeded.
Q2: Is the IEC320 C14 Power Inlet waterproof?
A2: No, the standard IEC320 C14 Power Inlet is not waterproof. For outdoor or wet environments, use a weatherproof enclosure.
Q3: Can I use this inlet for DC power?
A3: While the inlet is designed for AC power, it can technically be used for DC applications if the voltage and current ratings are not exceeded. However, this is not a standard use case.
Q4: How do I ensure proper grounding?
A4: Connect the Earth (E) pin to a reliable ground point in your circuit or device. This is critical for safety and to prevent electrical shocks.
By following this documentation, you can safely and effectively use the IEC320 C14 Power Inlet in your projects and devices.
