How to Use 12V Relay Module: Examples, Pinouts, and Specs

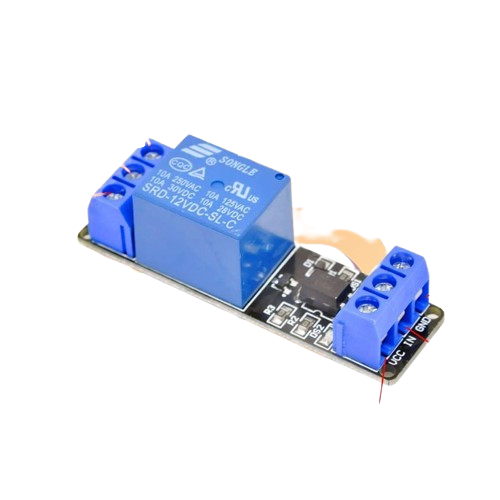

Image of 12V Relay Module
Cirkit Designer LogoDesign with 12V Relay Module in Cirkit Designer

Introduction

A 12V relay module is an electromechanical switch that enables a low-voltage control signal to manage a higher voltage circuit. It is widely used in applications where electrical isolation and high-power switching are required. The module typically consists of a relay, driver circuitry, and input/output terminals for easy integration into electronic systems.

Explore Projects Built with 12V Relay Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
DC-DC Converter and Relay Module Power Distribution System
Image of relay: A project utilizing 12V Relay Module in a practical application
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
IR Sensor-Controlled Relay with LED Indicator
Image of smart TV: A project utilizing 12V Relay Module in a practical application
This circuit uses an IR sensor to control a relay module, which in turn switches a 12V blue LED on and off. The IR sensor output is connected to the signal input of the relay, enabling the sensor to activate the relay. The relay's normally closed (NC) contact is connected to the LED, allowing the LED to be powered by a 9V battery when the relay is not activated by the IR sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered 4-Channel Relay Control with LED Indicators
Image of RELLAY BOARD TEST: A project utilizing 12V Relay Module in a practical application
This circuit consists of a 5V battery powering a 4-channel relay module, which controls four LEDs (red, yellow, green, and blue) through individual resistors. Each relay channel is activated by a corresponding SPST toggle switch, allowing manual control of the LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Wi-Fi Controlled Relay System Using ESP8266
Image of Smart House Automation: A project utilizing 12V Relay Module in a practical application
This circuit uses an ESP8266 microcontroller to control a 4-channel relay module, which can switch various loads. The ESP8266 is powered by a 12V DC supply converted from an AC source, and it interfaces with the relay module to control the relays via its digital output pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 12V Relay Module

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of relay: A project utilizing 12V Relay Module in a practical application
DC-DC Converter and Relay Module Power Distribution System
This circuit consists of a DC-DC converter powering a 6-channel power module, which in turn supplies 5V to a 2-relay module. The power module distributes the converted voltage to the relay module, enabling it to control external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of smart TV: A project utilizing 12V Relay Module in a practical application
IR Sensor-Controlled Relay with LED Indicator
This circuit uses an IR sensor to control a relay module, which in turn switches a 12V blue LED on and off. The IR sensor output is connected to the signal input of the relay, enabling the sensor to activate the relay. The relay's normally closed (NC) contact is connected to the LED, allowing the LED to be powered by a 9V battery when the relay is not activated by the IR sensor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RELLAY BOARD TEST: A project utilizing 12V Relay Module in a practical application
Battery-Powered 4-Channel Relay Control with LED Indicators
This circuit consists of a 5V battery powering a 4-channel relay module, which controls four LEDs (red, yellow, green, and blue) through individual resistors. Each relay channel is activated by a corresponding SPST toggle switch, allowing manual control of the LEDs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart House Automation: A project utilizing 12V Relay Module in a practical application
Wi-Fi Controlled Relay System Using ESP8266
This circuit uses an ESP8266 microcontroller to control a 4-channel relay module, which can switch various loads. The ESP8266 is powered by a 12V DC supply converted from an AC source, and it interfaces with the relay module to control the relays via its digital output pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Home automation systems (e.g., controlling lights, fans, or appliances)
  • Industrial control systems
  • Motor control circuits
  • IoT projects for switching high-power devices
  • Automotive electronics for controlling high-current loads

Technical Specifications

Below are the key technical details of a standard 12V relay module:

Parameter Specification
Operating Voltage 12V DC
Trigger Voltage 3V to 12V DC (depending on design)
Maximum Load Voltage 250V AC / 30V DC
Maximum Load Current 10A
Relay Type SPDT (Single Pole Double Throw)
Isolation Optocoupler isolation (in some models)
Dimensions Varies by model (e.g., 50mm x 26mm)
Indicator LED Yes (indicates relay activation)

Pin Configuration and Descriptions

The 12V relay module typically has the following pins:

Pin Name Description
VCC Connect to the 12V DC power supply.
GND Connect to the ground of the power supply.
IN Control signal input. A HIGH signal activates the relay, and a LOW signal deactivates it.
COM Common terminal of the relay.
NO Normally Open terminal. Connect the load here if you want it to be powered only when the relay is activated.
NC Normally Closed terminal. Connect the load here if you want it to be powered when the relay is not activated.

Usage Instructions

How to Use the 12V Relay Module in a Circuit

  1. Power the Module: Connect the VCC pin to a 12V DC power supply and the GND pin to the ground.
  2. Control Signal: Connect the IN pin to a microcontroller (e.g., Arduino UNO) or any other control circuit. Ensure the control signal voltage matches the module's input requirements.
  3. Load Connection:
    • Connect the load's live wire to the COM terminal.
    • Depending on the desired behavior:
      • Use the NO terminal if the load should be powered only when the relay is activated.
      • Use the NC terminal if the load should be powered when the relay is not activated.
  4. Test the Circuit: Apply a HIGH signal to the IN pin to activate the relay and switch the load.

Important Considerations and Best Practices

  • Isolation: Ensure proper electrical isolation between the control circuit and the high-voltage load to prevent damage or hazards.
  • Flyback Diode: If you're driving an inductive load (e.g., a motor), use a flyback diode across the load to protect the relay from voltage spikes.
  • Current Ratings: Do not exceed the relay's maximum current and voltage ratings to avoid damage.
  • Indicator LED: Use the onboard LED as a visual indicator to confirm relay activation.

Example: Connecting to an Arduino UNO

Below is an example of how to control a 12V relay module using an Arduino UNO:

Circuit Connections

  • Connect the relay module's VCC to the Arduino's 5V pin.
  • Connect the relay module's GND to the Arduino's GND pin.
  • Connect the relay module's IN pin to Arduino digital pin 7.
  • Connect the load (e.g., a light bulb) to the COM and NO terminals of the relay.

Arduino Code

// Define the relay control pin
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);
  // Ensure the relay is off initially
  digitalWrite(relayPin, LOW);
}

void loop() {
  // Turn the relay ON
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the relay ON for 5 seconds

  // Turn the relay OFF
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the relay OFF for 5 seconds
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Relay Not Activating:

    • Cause: Insufficient control signal voltage.
    • Solution: Verify that the control signal voltage matches the module's input requirements (typically 3V-12V).
  2. Load Not Switching:

    • Cause: Incorrect wiring of the load to the relay terminals.
    • Solution: Double-check the connections to the COM, NO, and NC terminals.
  3. Relay Clicking but No Load Response:

    • Cause: Load exceeds the relay's current or voltage rating.
    • Solution: Ensure the load is within the relay's rated specifications.
  4. Indicator LED Not Lighting Up:

    • Cause: No power to the module or a faulty module.
    • Solution: Check the VCC and GND connections and ensure the power supply is functional.

FAQs

Q1: Can I use a 12V relay module with a 5V microcontroller?
A1: Yes, most 12V relay modules have a built-in transistor or optocoupler that allows a 5V control signal to activate the relay. However, always check the module's datasheet to confirm compatibility.

Q2: Is it safe to use the relay module for AC loads?
A2: Yes, the relay can handle AC loads up to its rated voltage and current. Ensure proper insulation and safety precautions when working with high-voltage AC circuits.

Q3: Can I control multiple relays with one microcontroller?
A3: Yes, you can control multiple relays by connecting each relay's IN pin to a separate digital output pin on the microcontroller.

Q4: Why is the relay module heating up?
A4: Excessive heating may occur if the load exceeds the relay's current rating. Reduce the load or use a relay with a higher current rating.
