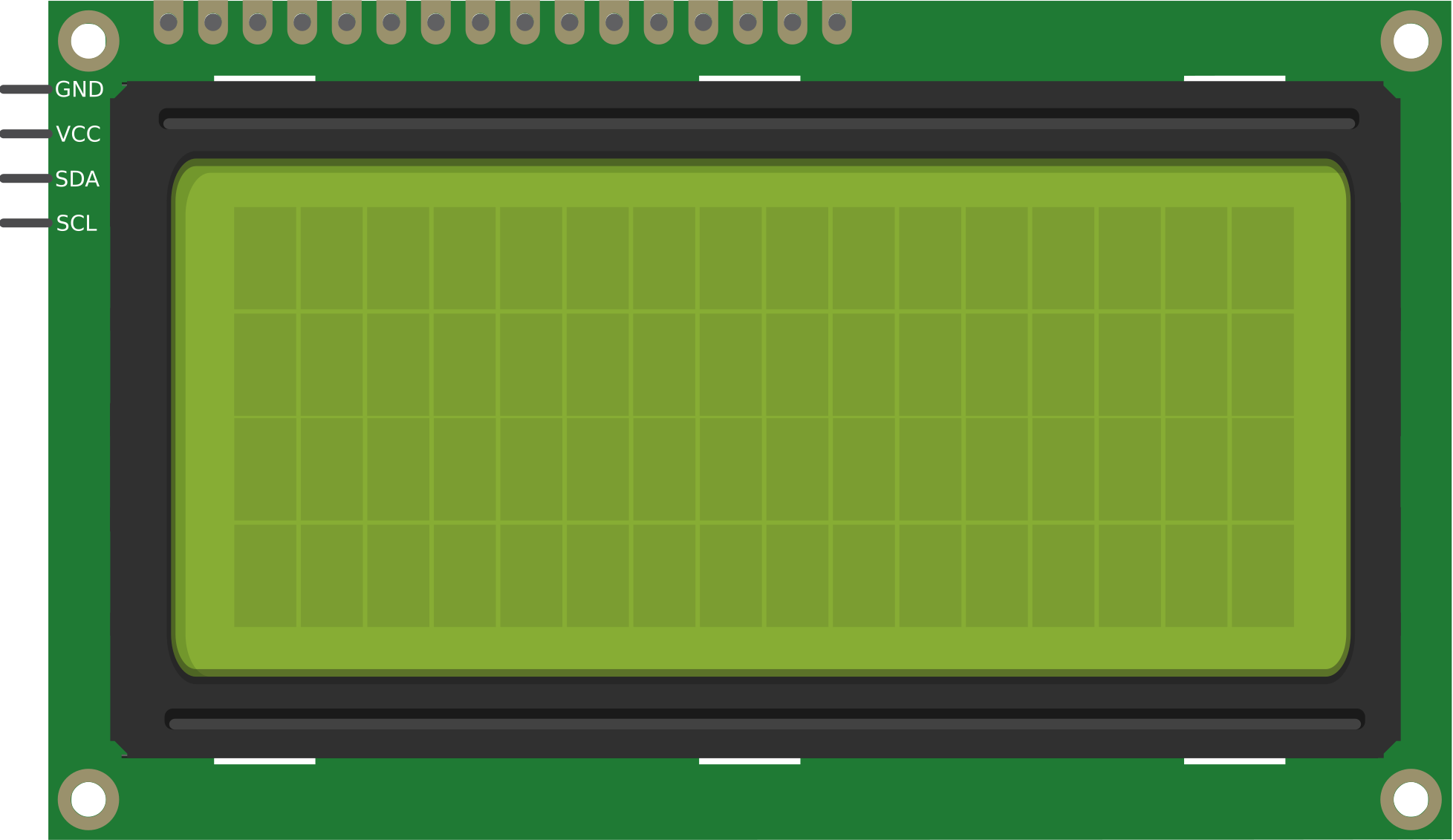

Image of LCD 20X4
Cirkit Designer LogoDesign with LCD 20X4 in Cirkit Designer

Introduction

The LCD 20x4 is a Liquid Crystal Display module capable of displaying 20 characters per line across 4 lines. Manufactured by Arduino with the part ID "UNO," this display is widely used in embedded systems for presenting text and simple graphics. It is ideal for applications requiring a user interface, such as home automation, industrial control systems, and educational projects. The module supports both parallel and serial communication protocols, making it versatile and easy to integrate with microcontrollers like the Arduino UNO.

Explore Projects Built with LCD 20X4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO I2C 20x4 LCD Display Project
Image of sample: A project utilizing LCD 20X4 in a practical application
This circuit consists of an Arduino UNO microcontroller connected to a 20x4 I2C LCD display. The Arduino provides power and communicates with the LCD via I2C protocol to display static text messages across its four rows.
Cirkit Designer LogoOpen Project in Cirkit Designer
I2C LCD Display Module with Power Supply Interface
Image of J8 +j22 lcd closeup: A project utilizing LCD 20X4 in a practical application
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and I2C LCD Display Power Supply Project
Image of lcd display: A project utilizing LCD 20X4 in a practical application
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Controlled I2C LCD Display
Image of LCD_I2C: A project utilizing LCD 20X4 in a practical application
This circuit connects an ESP32 microcontroller to a 20x4 LCD display with an I2C interface. The ESP32 powers the LCD and communicates with it using the I2C protocol, with D21 and D22 pins serving as the data (SDA) and clock (SCL) lines, respectively. The circuit is designed to display information or user interface elements controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LCD 20X4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of sample: A project utilizing LCD 20X4 in a practical application
Arduino UNO I2C 20x4 LCD Display Project
This circuit consists of an Arduino UNO microcontroller connected to a 20x4 I2C LCD display. The Arduino provides power and communicates with the LCD via I2C protocol to display static text messages across its four rows.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of J8 +j22 lcd closeup: A project utilizing LCD 20X4 in a practical application
I2C LCD Display Module with Power Supply Interface
This circuit interfaces a 20x4 I2C LCD display with a power source and an I2C communication bus. The LCD is powered by a 4.2V supply from a connector and communicates via I2C through another connector, which provides the SCL and SDA lines as well as ground.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of lcd display: A project utilizing LCD 20X4 in a practical application
Arduino Nano and I2C LCD Display Power Supply Project
This circuit features an Arduino Nano microcontroller interfaced with a 20x4 I2C LCD panel for display purposes. The LCD panel is powered by a 5V AC-DC power supply unit, and the Arduino Nano communicates with the LCD via I2C protocol using its A5 (SDA) and A1 (SCL) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LCD_I2C: A project utilizing LCD 20X4 in a practical application
ESP32-Controlled I2C LCD Display
This circuit connects an ESP32 microcontroller to a 20x4 LCD display with an I2C interface. The ESP32 powers the LCD and communicates with it using the I2C protocol, with D21 and D22 pins serving as the data (SDA) and clock (SCL) lines, respectively. The circuit is designed to display information or user interface elements controlled by the ESP32.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Home automation systems (e.g., displaying temperature, humidity, or system status)
  • Industrial control panels
  • Educational projects and prototyping
  • IoT devices for displaying sensor data
  • Menu-based user interfaces for embedded systems

Technical Specifications

Key Technical Details:

Parameter Value
Display Type LCD (Liquid Crystal Display)
Display Size 20 characters x 4 lines
Operating Voltage 4.7V to 5.3V
Operating Current 1mA (without backlight)
Backlight Current ~120mA
Communication Protocol Parallel (4-bit or 8-bit)
Character Size 5x8 dot matrix
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

Pin Configuration:

The LCD 20x4 module typically has 16 pins. Below is the pinout and description:

Pin Number Pin Name Description
1 VSS Ground (0V) connection
2 VDD Power supply (4.7V to 5.3V)
3 VO Contrast adjustment (connect to a potentiometer)
4 RS Register Select (0: Command, 1: Data)
5 RW Read/Write (0: Write, 1: Read)
6 E Enable signal (used to latch data)
7-14 D0-D7 Data pins (D0-D3 optional in 4-bit mode)
15 LED+ Backlight anode (connect to 5V via a resistor)
16 LED- Backlight cathode (connect to ground)

Usage Instructions

Connecting the LCD 20x4 to an Arduino UNO:

The LCD 20x4 can be connected to an Arduino UNO using the parallel 4-bit communication mode to save GPIO pins. Below is a typical wiring configuration:

LCD Pin Arduino UNO Pin Description
VSS GND Ground connection
VDD 5V Power supply
VO Potentiometer Contrast adjustment
RS Digital Pin 12 Register Select
RW GND Set to Write mode
E Digital Pin 11 Enable signal
D4 Digital Pin 5 Data pin 4
D5 Digital Pin 4 Data pin 5
D6 Digital Pin 3 Data pin 6
D7 Digital Pin 2 Data pin 7
LED+ 5V (via resistor) Backlight power
LED- GND Backlight ground

Arduino Code Example:

Below is an example code to display text on the LCD 20x4 using the Arduino LiquidCrystal library:

#include <LiquidCrystal.h>

// Initialize the library with the pins connected to the LCD
// (RS, E, D4, D5, D6, D7)
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup() {
  // Set up the LCD's number of columns and rows
  lcd.begin(20, 4);

  // Print a message to the LCD
  lcd.setCursor(0, 0); // Set cursor to column 0, row 0
  lcd.print("Hello, World!");

  lcd.setCursor(0, 1); // Set cursor to column 0, row 1
  lcd.print("LCD 20x4 Demo");

  lcd.setCursor(0, 2); // Set cursor to column 0, row 2
  lcd.print("Line 3: Arduino");

  lcd.setCursor(0, 3); // Set cursor to column 0, row 3
  lcd.print("Line 4: Display");
}

void loop() {
  // No actions in the loop for this example
}

Important Considerations:

  1. Contrast Adjustment: Use a 10kΩ potentiometer connected to the VO pin to adjust the display contrast.
  2. Backlight Resistor: Use a current-limiting resistor (e.g., 220Ω) for the backlight to prevent damage.
  3. Power Supply: Ensure a stable 5V power supply to avoid flickering or malfunction.
  4. 4-bit vs. 8-bit Mode: Use 4-bit mode to save GPIO pins on the Arduino UNO.

Troubleshooting and FAQs

Common Issues:

  1. No Display on the Screen:

    • Check the power connections (VDD and VSS).
    • Adjust the contrast using the potentiometer connected to VO.
    • Verify the backlight connections (LED+ and LED-).
  2. Garbage Characters or No Text:

    • Ensure the data pins (D4-D7) are correctly connected.
    • Verify the RS, RW, and E pin connections.
    • Check the code for correct initialization (lcd.begin(20, 4)).
  3. Flickering or Unstable Display:

    • Use a decoupling capacitor (e.g., 0.1µF) across the power supply pins.
    • Ensure the power supply provides sufficient current.
  4. Backlight Not Working:

    • Check the resistor value for the backlight (220Ω recommended).
    • Verify the LED+ and LED- connections.

FAQs:

  1. Can I use the LCD 20x4 with a 3.3V microcontroller?

    • The LCD 20x4 is designed for 5V operation. Use a level shifter or a 5V microcontroller for compatibility.
  2. How do I display custom characters?

    • Use the lcd.createChar() function to define custom characters. Refer to the Arduino LiquidCrystal library documentation for details.
  3. Can I use the LCD 20x4 in 8-bit mode?

    • Yes, connect all 8 data pins (D0-D7) to the microcontroller and modify the code accordingly.
  4. What is the maximum viewing angle of the LCD?

    • The typical viewing angle is ±45° horizontally and ±30° vertically.

By following this documentation, you can effectively integrate and troubleshoot the LCD 20x4 module in your projects.
