How to Use MQ 135: Examples, Pinouts, and Specs

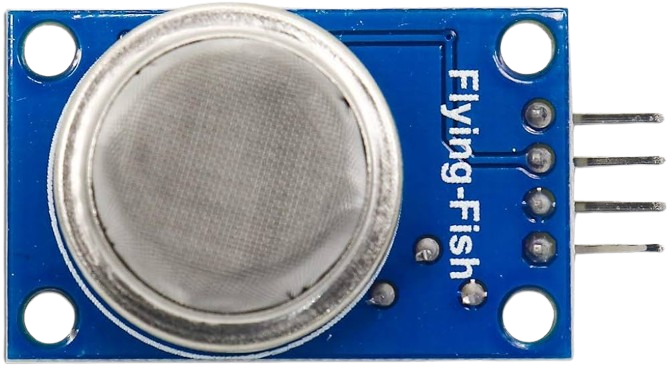

The MQ 135 is a versatile gas sensor designed to detect a wide range of gases, including ammonia (NH₃), benzene (C₆H₆), alcohol, smoke, and other harmful gases. It operates on the principle of resistive change, where the sensor's resistance varies in the presence of target gases. This change is converted into an analog output signal, making it suitable for air quality monitoring and environmental sensing applications.

• Air quality monitoring systems
• Industrial gas detection
• Smoke and fire detection systems
• Environmental pollution monitoring
• Smart home automation for air quality control

The MQ 135 sensor is designed for ease of use and integration into various systems. Below are its key technical details:

The MQ 135 sensor typically comes with four pins. Below is the pinout description:

1. Power the Sensor: Connect the VCC pin to a 5V DC power source and the GND pin to the ground.
2. Read the Output:
   • Use the AOUT pin to read the analog signal. This pin provides a voltage proportional to the gas concentration.
   • Optionally, use the DOUT pin for a digital HIGH/LOW signal if a threshold is set using the onboard potentiometer.
3. Preheat the Sensor: Allow the sensor to preheat for at least 24 hours before taking accurate readings. This ensures stable operation.
4. Connect to a Microcontroller: The analog output can be connected to an ADC (Analog-to-Digital Converter) pin of a microcontroller like the Arduino UNO for further processing.

• Preheating: The sensor requires a preheating period of at least 24 hours for optimal performance.
• Calibration: Calibrate the sensor in a clean air environment to establish a baseline reading.
• Power Supply: Ensure a stable 5V power supply to avoid fluctuations in readings.
• Ventilation: Place the sensor in a well-ventilated area for accurate gas detection.
• Avoid Contamination: Keep the sensor away from water, dust, and oil to prevent damage.

Below is an example of how to interface the MQ 135 with an Arduino UNO to read analog values:

// MQ 135 Gas Sensor Example Code for Arduino UNO
// This code reads the analog output of the MQ 135 sensor and prints the value
// to the Serial Monitor. Ensure the sensor is connected to the correct pins.

const int MQ135_PIN = A0; // Connect the AOUT pin of MQ 135 to Arduino A0

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  pinMode(MQ135_PIN, INPUT); // Set the MQ 135 pin as input
}

void loop() {
  int sensorValue = analogRead(MQ135_PIN); // Read the analog value from the sensor
  float voltage = sensorValue * (5.0 / 1023.0); // Convert the value to voltage

  // Print the sensor value and voltage to the Serial Monitor
  Serial.print("Sensor Value: ");
  Serial.print(sensorValue);
  Serial.print(" | Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

1. No Output or Incorrect Readings:

   • Cause: Insufficient preheating time.
   • Solution: Ensure the sensor is preheated for at least 24 hours before use.

2. Fluctuating Readings:

   • Cause: Unstable power supply or environmental interference.
   • Solution: Use a regulated 5V power supply and place the sensor in a stable environment.

3. Sensor Not Responding to Gases:

   • Cause: Sensor contamination or damage.
   • Solution: Replace the sensor if it has been exposed to water, oil, or excessive dust.

4. Digital Output Not Triggering:

   • Cause: Incorrect threshold setting on the potentiometer.
   • Solution: Adjust the potentiometer to set the desired threshold level.

Q1: Can the MQ 135 detect multiple gases simultaneously?
A1: Yes, the MQ 135 can detect a variety of gases, but it does not differentiate between them. It provides a combined analog output based on the total concentration of detectable gases.

Q2: How do I calibrate the MQ 135 sensor?
A2: Place the sensor in clean air and record the baseline analog output. Use this value as a reference for detecting gas concentrations.

Q3: What is the lifespan of the MQ 135 sensor?
A3: The sensor typically lasts for 2 years under normal operating conditions.

Q4: Can I use the MQ 135 with a 3.3V microcontroller?
A4: The MQ 135 is designed for 5V operation. If using a 3.3V microcontroller, a level shifter or voltage divider is required for compatibility.
