How to Use POWER SUPPLY 24v 350w: Examples, Pinouts, and Specs

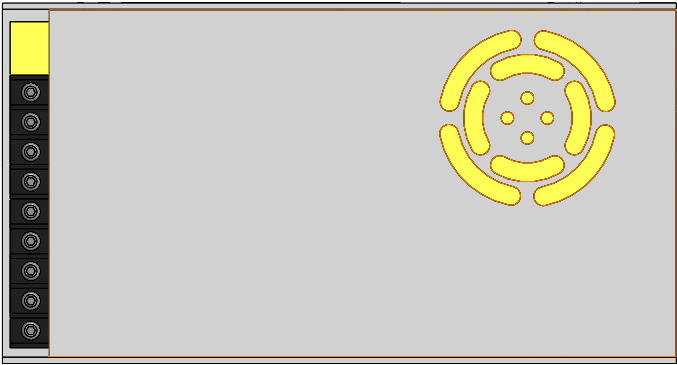

Image of POWER SUPPLY 24v 350w
Cirkit Designer LogoDesign with POWER SUPPLY 24v 350w in Cirkit Designer

Introduction

The Meanwell POWER SUPPLY 24v 350w is a high-performance, reliable power supply designed to convert electrical energy into a stable 24V DC output. With a maximum power output of 350 watts, this power supply is ideal for powering a wide range of electronic devices and circuits. Its robust design ensures consistent performance, making it suitable for industrial, commercial, and hobbyist applications.

Explore Projects Built with POWER SUPPLY 24v 350w

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Modular Power Distribution System with Multiple SMPS Units and 120V Outlet
Image of Cellion-Tesla: A project utilizing POWER SUPPLY 24v 350w in a practical application
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing POWER SUPPLY 24v 350w in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Indicator Circuit with Push Switches and Voltage Regulation
Image of circuit 1: A project utilizing POWER SUPPLY 24v 350w in a practical application
This circuit converts 220V AC to 24V DC using a power transformer and a bridge rectifier, then regulates the voltage to a stable output using a voltage regulator. It includes multiple LEDs controlled by push switches, with current limiting provided by a resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer
LED Array with Push Switch Control and Voltage Regulation
Image of Transformer safty device complete: A project utilizing POWER SUPPLY 24v 350w in a practical application
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with POWER SUPPLY 24v 350w

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Cellion-Tesla: A project utilizing POWER SUPPLY 24v 350w in a practical application
Modular Power Distribution System with Multiple SMPS Units and 120V Outlet
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing POWER SUPPLY 24v 350w in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of circuit 1: A project utilizing POWER SUPPLY 24v 350w in a practical application
LED Indicator Circuit with Push Switches and Voltage Regulation
This circuit converts 220V AC to 24V DC using a power transformer and a bridge rectifier, then regulates the voltage to a stable output using a voltage regulator. It includes multiple LEDs controlled by push switches, with current limiting provided by a resistor.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Transformer safty device complete: A project utilizing POWER SUPPLY 24v 350w in a practical application
LED Array with Push Switch Control and Voltage Regulation
This circuit is a power supply and control system that steps down 220V AC to 24V AC using a transformer, rectifies it to DC using a bridge rectifier, and regulates it to 5V DC. It includes multiple LEDs controlled by push switches and a relay, with a capacitor for smoothing the output.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Industrial automation systems
  • LED lighting and signage
  • CNC machines and 3D printers
  • Robotics and motor controllers
  • Laboratory equipment and testing setups
  • DIY electronics projects requiring stable DC power

Technical Specifications

The following table outlines the key technical details of the Meanwell POWER SUPPLY 24v 350w:

Parameter Value
Input Voltage Range 85-264V AC / 120-370V DC
Output Voltage 24V DC
Output Current Up to 14.6A
Maximum Power Output 350W
Efficiency Up to 89%
Operating Temperature -20°C to +70°C
Dimensions 215.5 x 115 x 50 mm
Weight 0.8 kg
Protection Features Overload, Overvoltage,
Overtemperature, Short Circuit

Pin Configuration and Descriptions

The power supply features input and output terminals for easy integration into circuits. Below is the pin configuration:

Input Terminals

Pin Label Description
1 L Live AC input
2 N Neutral AC input
3 FG Frame Ground (Earth connection)

Output Terminals

Pin Label Description
1 V+ Positive DC output (24V)
2 V+ Positive DC output (24V)
3 V- Negative DC output (Ground)
4 V- Negative DC output (Ground)

Usage Instructions

How to Use the Component in a Circuit

  1. Mounting the Power Supply: Secure the power supply in a well-ventilated area to prevent overheating. Ensure it is mounted away from flammable materials.
  2. Connecting the Input:
    • Connect the AC live wire to the L terminal.
    • Connect the AC neutral wire to the N terminal.
    • Connect the earth wire to the FG terminal for safety.
  3. Connecting the Output:
    • Connect the V+ terminals to the positive input of your load.
    • Connect the V- terminals to the negative input of your load.
  4. Adjusting the Output Voltage (if necessary):
    • Use the built-in potentiometer to fine-tune the output voltage. This is typically located near the output terminals.
  5. Powering On:
    • Ensure all connections are secure and correct.
    • Plug the power supply into an AC outlet and switch it on.

Important Considerations and Best Practices

  • Load Requirements: Ensure the total load does not exceed 350W or 14.6A to prevent overloading.
  • Ventilation: Maintain adequate airflow around the power supply to avoid overheating.
  • Safety: Always disconnect the power supply from the mains before making any wiring changes.
  • Fusing: Use an appropriate fuse on the input side to protect against overcurrent conditions.
  • Isolation: Avoid direct contact with the terminals when the power supply is energized.

Example: Connecting to an Arduino UNO

The Meanwell POWER SUPPLY 24v 350w can be used to power an Arduino UNO via a step-down voltage regulator (e.g., LM2596) to convert 24V to 5V. Below is an example circuit and Arduino code:

Circuit Setup

  1. Connect the V+ and V- terminals of the power supply to the input of the LM2596 regulator.
  2. Adjust the LM2596 output to 5V using its potentiometer.
  3. Connect the 5V output of the regulator to the Arduino UNO's 5V and GND pins.

Arduino Code

// Example code to blink an LED connected to pin 13 of the Arduino UNO
void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues Users Might Face

  1. No Output Voltage:

    • Check if the input AC voltage is within the specified range (85-264V AC).
    • Verify that the connections to the L, N, and FG terminals are correct.
    • Ensure the power supply is switched on and the fuse (if used) is intact.
  2. Overheating:

    • Ensure the power supply is not overloaded (max 350W).
    • Check for proper ventilation and remove any obstructions around the unit.
  3. Voltage Fluctuations:

    • Verify that the load is stable and does not exceed the rated current.
    • Use the potentiometer to fine-tune the output voltage if necessary.
  4. Short Circuit Protection Triggered:

    • Disconnect the load and inspect for any short circuits in the connected circuit.
    • After resolving the issue, power cycle the supply to reset the protection.

Solutions and Tips for Troubleshooting

  • Use a multimeter to measure the input and output voltages for diagnostics.
  • If the power supply fails to operate, inspect for visible damage or burnt components.
  • For persistent issues, consult the Meanwell user manual or contact technical support.

By following this documentation, users can safely and effectively integrate the Meanwell POWER SUPPLY 24v 350w into their projects and applications.
