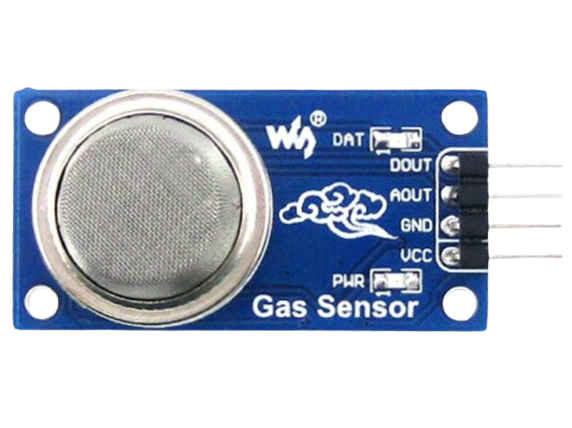

The MQ6 gas sensor, manufactured by MAINAK (Part ID: MQ6 SENSOR), is a versatile electronic component designed to detect the presence of gases such as LPG, propane, and butane. It operates on the principle of resistive change when exposed to target gases, providing an analog output proportional to the gas concentration. This sensor is widely used in applications such as gas leak detection, air quality monitoring, and safety systems in residential, industrial, and automotive environments.
Explore Projects Built with MQ6
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit features an Arduino UNO microcontroller interfaced with an MQ135 air quality sensor, an MPU-6050 accelerometer/gyroscope, a SIM900A GSM communication module, and a buzzer. The Arduino reads analog data from the MQ135 sensor and communicates with the MPU-6050 via I2C, while also controlling the buzzer and handling serial communication with the SIM900A module. The purpose of this circuit is likely to monitor air quality and motion, provide alerts through the buzzer, and enable remote communication via GSM.
This circuit features an Arduino UNO microcontroller interfaced with an A9G GSM/GPRS+GPS module and an MQ2 gas sensor. The Arduino communicates with the A9G module via digital pins D11 and D10 for data transmission, and it reads analog gas concentration levels from the MQ2 sensor through analog pin A5. Both the A9G module and the MQ2 sensor are powered by the Arduino's 5V output, and all components share a common ground.
This circuit is designed to monitor air quality using an MQ135 sensor and provide visual and audible alerts. It features an Arduino UNO microcontroller interfaced with a GSM module for communication, an I2C LCD for display, and LEDs and a buzzer for local alerts. The Arduino runs embedded code to read the MQ135 sensor data, display air quality index (AQI) on the LCD, and trigger SMS and call alerts via the GSM module when gas is detected above a certain threshold.
This circuit connects an MQ6 gas sensor to an Arduino 101 microcontroller for the purpose of detecting gas concentrations. The Arduino is powered by a 5V DC source and reads the digital output (DO) from the MQ6 sensor on its digital pin D9. The embedded code on the Arduino is configured to read the sensor's digital output and print the value to the Serial Monitor every second.
The MQ6 sensor is designed for reliable and efficient gas detection. Below are its key technical specifications:
General Specifications
Parameter
Value
Operating Voltage
5V DC
Load Resistance (RL)
Adjustable (typically 10 kΩ)
Heater Voltage (VH)
5V ± 0.2V
Heater Power Consumption
≤ 800 mW
Detection Range
200 ppm to 10,000 ppm
Preheat Time
≥ 24 hours (for stable output)
Output Signal
Analog voltage
Sensitivity
Detects LPG, propane, butane
Operating Temperature
-20°C to 50°C
Humidity Range
≤ 95% RH
Pin Configuration and Descriptions
The MQ6 sensor typically comes with four pins or terminals. Below is the pin configuration:
Pin Number
Pin Name
Description
1
VCC
Power supply pin (5V DC)
2
GND
Ground pin
3
AOUT
Analog output pin (proportional to gas level)
4
DOUT
Digital output pin (threshold-based signal)
Usage Instructions
How to Use the MQ6 Sensor in a Circuit
Power Supply: Connect the VCC pin to a 5V DC power source and the GND pin to the ground.
Analog Output: Connect the AOUT pin to an analog input pin of a microcontroller (e.g., Arduino UNO) to read the gas concentration as a voltage signal.
Digital Output: Optionally, connect the DOUT pin to a digital input pin of a microcontroller. Use a potentiometer on the sensor module to set the threshold for the digital output.
Preheating: Allow the sensor to preheat for at least 24 hours before taking stable readings.
Load Resistor: Use a load resistor (typically 10 kΩ) between the AOUT pin and ground to ensure proper operation.
Important Considerations and Best Practices
Ventilation: Ensure the sensor is placed in a well-ventilated area for accurate gas detection.
Avoid Contaminants: Keep the sensor away from water, oil, and other contaminants that may damage the sensing element.
Calibration: Calibrate the sensor in a known gas concentration environment for precise measurements.
Power Stability: Use a stable 5V power supply to avoid fluctuations in readings.
Arduino Connection: When using with an Arduino UNO, connect the AOUT pin to an analog input (e.g., A0) and read the voltage values to determine gas concentration.
Example Arduino Code
Below is an example code snippet for interfacing the MQ6 sensor with an Arduino UNO:
// MQ6 Gas Sensor Example Code
// Reads analog output from the MQ6 sensor and prints gas concentration to Serial Monitor
const int analogPin = A0; // Connect AOUT pin of MQ6 to A0 on Arduino
int sensorValue = 0; // Variable to store analog reading
void setup() {
Serial.begin(9600); // Initialize serial communication at 9600 baud
Serial.println("MQ6 Gas Sensor Initialized");
}
void loop() {
sensorValue = analogRead(analogPin); // Read analog value from sensor
float voltage = sensorValue * (5.0 / 1023.0); // Convert to voltage (0-5V)
// Print sensor value and voltage to Serial Monitor
Serial.print("Sensor Value: ");
Serial.print(sensorValue);
Serial.print(" | Voltage: ");
Serial.print(voltage);
Serial.println(" V");
delay(1000); // Wait for 1 second before next reading
}
Troubleshooting and FAQs
Common Issues and Solutions
No Output Signal:
Cause: Incorrect wiring or insufficient power supply.
Solution: Verify all connections and ensure a stable 5V power source.
Unstable Readings:
Cause: Insufficient preheating time or environmental interference.
Solution: Allow the sensor to preheat for at least 24 hours and ensure a stable environment.
Low Sensitivity:
Cause: Sensor contamination or improper calibration.
Solution: Clean the sensor carefully and recalibrate in a known gas concentration.
Digital Output Not Triggering:
Cause: Threshold not set correctly.
Solution: Adjust the potentiometer on the sensor module to set the desired threshold.
FAQs
Q1: Can the MQ6 detect gases other than LPG, propane, and butane?
A1: The MQ6 is optimized for LPG, propane, and butane detection. It may respond to other gases, but its sensitivity and accuracy are not guaranteed.
Q2: How long does the MQ6 sensor last?
A2: The sensor typically has a lifespan of 2-3 years under normal operating conditions.
Q3: Can I use the MQ6 sensor outdoors?
A3: The MQ6 is not waterproof and should be protected from rain and extreme humidity if used outdoors.
Q4: Why is preheating necessary?
A4: Preheating stabilizes the sensor's internal resistance, ensuring accurate and consistent readings.
By following this documentation, users can effectively integrate the MQ6 gas sensor into their projects and troubleshoot common issues with ease.
