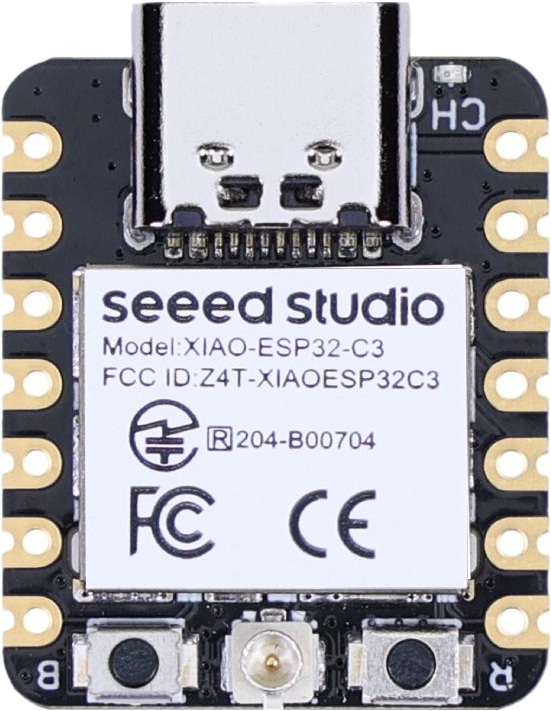

The XIAO ESP32C3 by Seeed Studio is a compact and powerful microcontroller board based on the ESP32-C3 chip. It features built-in Wi-Fi and Bluetooth Low Energy (BLE) capabilities, making it an excellent choice for Internet of Things (IoT) applications, smart devices, and wireless communication projects. Its small form factor and low power consumption make it ideal for portable and space-constrained designs.
Explore Projects Built with XIAO ESP32C3
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit connects a Xiao ESP32 C3 microcontroller to an Adafruit RFM9x LoRa Radio module. The ESP32 C3 provides power to the LoRa module and interfaces with it using SPI communication (SCK, MISO, MOSI, CS) and control lines (RST, DIO0). This setup is likely intended for wireless communication using LoRa technology, with the ESP32 handling data processing and network protocol tasks.
This circuit features a Xiao ESP32 C3 microcontroller connected to a DHT11 Humidity and Temperature Sensor. The ESP32 C3 provides power to the DHT11 sensor through its VUSB pin and receives data from the sensor's DATA pin via the ESP32's D2 pin. The circuit is designed to measure environmental temperature and humidity, with the microcontroller processing and potentially communicating the sensor data.
This circuit features an ESP32C3 Supermini microcontroller connected to a LORA_RA02 module and a DHT11 temperature and humidity sensor. The ESP32C3 handles communication with the LORA module via SPI (using GPIO05, GPIO06, GPIO10, and GPIO04 for MISO, MOSI, NSS, and SCK respectively) and GPIO01 and GPIO02 for additional control signals. The DHT11 sensor is interfaced through GPIO03 for data reading, and all components share a common power supply through the 3.3V and GND pins.
This circuit features an XIAO ESP32C3 microcontroller interfaced with multiple PNP transistors and resistors to control various outputs. The microcontroller's GPIO pins are connected to the bases of the transistors through resistors, allowing it to switch the transistors on and off, while capacitors are used for filtering and stabilization.
Below are the key technical details of the XIAO ESP32C3:
Specification
Details
Microcontroller
ESP32-C3 RISC-V single-core processor
Clock Speed
Up to 160 MHz
Flash Memory
4 MB
SRAM
400 KB
Wireless Connectivity
Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 5.0 Low Energy (BLE)
Operating Voltage
3.3V
Input Voltage Range
5V (via USB-C)
GPIO Pins
11 (including ADC, PWM, I2C, SPI, UART)
ADC Resolution
12-bit
Interfaces
UART, I2C, SPI, GPIO, ADC, PWM
USB Interface
USB-C (supports programming and power supply)
Dimensions
21 x 17.5 mm
Power Consumption
Ultra-low power consumption in deep sleep mode
Operating Temperature
-40°C to 85°C
Pin Configuration and Descriptions
The XIAO ESP32C3 has 11 GPIO pins, each with multiple functions. Below is the pinout description:
Pin
Name
Function(s)
Description
1
3V3
Power
3.3V output
2
GND
Ground
Ground pin
3
D0
GPIO0, ADC1_CH0, UART_TXD
General-purpose I/O, ADC, UART TX
4
D1
GPIO1, ADC1_CH1, UART_RXD
General-purpose I/O, ADC, UART RX
5
D2
GPIO2, ADC1_CH2, I2C_SDA
General-purpose I/O, ADC, I2C data line
6
D3
GPIO3, ADC1_CH3, I2C_SCL
General-purpose I/O, ADC, I2C clock line
7
D4
GPIO4, PWM
General-purpose I/O, PWM
8
D5
GPIO5, PWM
General-purpose I/O, PWM
9
D6
GPIO6, SPI_MOSI
General-purpose I/O, SPI data out
10
D7
GPIO7, SPI_MISO
General-purpose I/O, SPI data in
11
D8
GPIO8, SPI_SCK
General-purpose I/O, SPI clock
Usage Instructions
How to Use the XIAO ESP32C3 in a Circuit
Powering the Board:
Use a USB-C cable to connect the board to a power source (e.g., computer or USB adapter).
Alternatively, supply 3.3V directly to the 3V3 pin and connect GND to ground.
Programming the Board:
Install the Arduino IDE and add the ESP32 board package via the Board Manager.
Select "Seeed XIAO ESP32C3" as the target board.
Connect the board via USB-C and upload your code.
Connecting Peripherals:
Use the GPIO pins for interfacing with sensors, actuators, or other devices.
Ensure the voltage levels of connected peripherals are compatible with the 3.3V logic of the board.
Important Considerations and Best Practices
Voltage Levels: Avoid applying voltages higher than 3.3V to the GPIO pins to prevent damage.
Deep Sleep Mode: Use deep sleep mode to minimize power consumption in battery-powered applications.
Wi-Fi and BLE: Ensure proper antenna placement and avoid interference for optimal wireless performance.
Pin Multiplexing: Be aware that some pins have multiple functions (e.g., ADC, I2C, UART). Configure them appropriately in your code.
Example Code for Arduino IDE
Below is an example of using the XIAO ESP32C3 to blink an LED connected to GPIO4 (D4):
// Define the GPIO pin for the LED
const int ledPin = 4; // D4 corresponds to GPIO4
void setup() {
// Initialize the LED pin as an output
pinMode(ledPin, OUTPUT);
}
void loop() {
// Turn the LED on
digitalWrite(ledPin, HIGH);
delay(1000); // Wait for 1 second
// Turn the LED off
digitalWrite(ledPin, LOW);
delay(1000); // Wait for 1 second
}
Example Code for Wi-Fi Connection
The following code connects the XIAO ESP32C3 to a Wi-Fi network:
#include <WiFi.h>
// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";
void setup() {
Serial.begin(115200); // Initialize serial communication
WiFi.begin(ssid, password); // Start Wi-Fi connection
// Wait for the connection to establish
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println("\nWi-Fi connected!");
Serial.print("IP Address: ");
Serial.println(WiFi.localIP()); // Print the assigned IP address
}
void loop() {
// Add your main code here
}
Troubleshooting and FAQs
Common Issues and Solutions
Board Not Detected by Arduino IDE:
Ensure the correct board and port are selected in the Arduino IDE.
Install the latest ESP32 board package and drivers.
Wi-Fi Connection Fails:
Double-check the SSID and password.
Ensure the Wi-Fi network is 2.4 GHz, as the ESP32-C3 does not support 5 GHz.
GPIO Pin Not Working:
Verify the pin configuration in your code.
Check for conflicting functions (e.g., ADC vs. GPIO).
Overheating or Power Issues:
Avoid exceeding the input voltage range.
Use a stable power source to prevent fluctuations.
FAQs
Can I power the XIAO ESP32C3 with a battery?
Yes, you can use a 3.7V LiPo battery with a voltage regulator to supply 3.3V to the 3V3 pin.
Does the board support OTA updates?
Yes, the ESP32-C3 supports Over-The-Air (OTA) firmware updates.
Can I use the XIAO ESP32C3 with MicroPython?
Yes, the board is compatible with MicroPython. You can flash the MicroPython firmware to use it.
What is the maximum current output of the GPIO pins?
Each GPIO pin can source or sink up to 40 mA, but it is recommended to stay below 20 mA for safe operation.
