How to Use LCD 16x2 attached i2c: Examples, Pinouts, and Specs

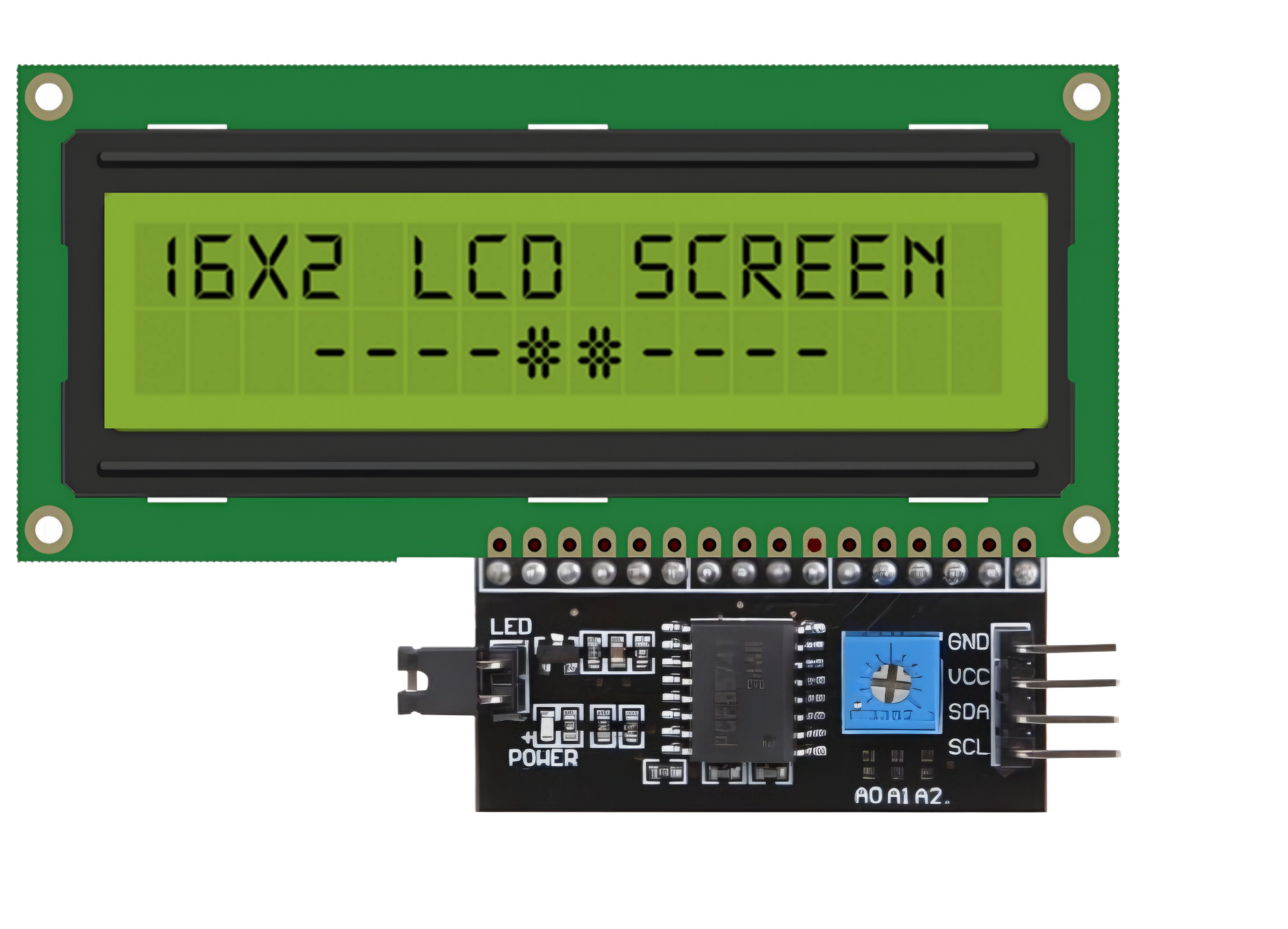

Image of LCD 16x2 attached i2cDesign with LCD 16x2 attached i2c in Cirkit Designer

Introduction

The LCD 16x2 with I2C interface is a versatile and widely used display module capable of showing 16 characters per line across 2 lines. It is equipped with an I2C (Inter-Integrated Circuit) interface, which simplifies communication with microcontrollers by reducing the number of required pins. This makes it an excellent choice for projects where pin availability is limited or where simplicity is desired.

Explore Projects Built with LCD 16x2 attached i2c

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino Leonardo Controlled LCD Display with I2C Interface: A project utilizing LCD 16x2 attached i2c in a practical application
Arduino Leonardo Controlled LCD Display with I2C Interface

This circuit connects an Arduino Leonardo microcontroller to a 16x2 LCD display via an LCM1602 IIC interface module, enabling the display of text on the LCD. The Arduino is programmed to display the messages 'TEST LCD i2C' and 'KelasRobot.com' on the LCD. The IIC module facilitates communication between the Arduino and the LCD using the I2C protocol, simplifying the wiring and pin usage.

Open Project in Cirkit Designer

Common Applications and Use Cases

Technical Specifications

Key Technical Details

Parameter Value
Display Type 16x2 Character LCD
Interface I2C (Inter-Integrated Circuit)
Operating Voltage 5V DC
Backlight LED (with adjustable brightness)
I2C Address (Default) 0x27 (can vary, e.g., 0x3F)
Current Consumption ~20mA (with backlight on)
Character Size 5x8 dot matrix
Operating Temperature -20°C to +70°C

Pin Configuration and Descriptions

The I2C interface reduces the number of pins required to connect the LCD to just four. Below is the pin configuration:

Pin Name Description
VCC Power supply (5V DC)
GND Ground
SDA Serial Data Line (I2C data)
SCL Serial Clock Line (I2C clock)

Usage Instructions

How to Use the Component in a Circuit

  1. Wiring the LCD to a Microcontroller:

    • Connect the VCC pin of the LCD to the 5V pin of the microcontroller.
    • Connect the GND pin of the LCD to the ground (GND) of the microcontroller.
    • Connect the SDA pin of the LCD to the I2C data pin of the microcontroller (e.g., A4 on Arduino UNO).
    • Connect the SCL pin of the LCD to the I2C clock pin of the microcontroller (e.g., A5 on Arduino UNO).
  2. Install Required Libraries:

    • Use the LiquidCrystal_I2C library for Arduino. Install it via the Arduino IDE Library Manager:
      • Go to Sketch > Include Library > Manage Libraries.
      • Search for LiquidCrystal_I2C and install the library by Frank de Brabander.
  3. Basic Arduino Code Example: Below is an example code to display "Hello, World!" on the LCD:

    // Include the LiquidCrystal_I2C library
    #include <Wire.h>
    #include <LiquidCrystal_I2C.h>

    // Initialize the LCD with I2C address 0x27 and 16x2 dimensions
    LiquidCrystal_I2C lcd(0x27, 16, 2);

    void setup() {
      lcd.begin(); // Initialize the LCD
      lcd.backlight(); // Turn on the backlight
      lcd.setCursor(0, 0); // Set cursor to the first column, first row
      lcd.print("Hello, World!"); // Print text on the LCD
    }

    void loop() {
      // No actions in the loop for this example
    }


Important Considerations and Best Practices

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Display or Blank Screen:

    • Verify the wiring connections, especially the VCC and GND pins.
    • Check the I2C address using an I2C scanner sketch.
    • Adjust the contrast potentiometer on the module.
  2. Incorrect or Garbled Characters:

    • Ensure the correct I2C address is specified in the code.
    • Verify that the LiquidCrystal_I2C library is properly installed and included.
  3. Backlight Not Working:

    • Check the power supply voltage (should be 5V).
    • Ensure the lcd.backlight() function is called in the code.
  4. I2C Communication Issues:

    • Confirm that the SDA and SCL pins are connected to the correct microcontroller pins.
    • Use pull-up resistors (typically 4.7kΩ) on the SDA and SCL lines if communication is unstable.

FAQs

Q: How do I find the I2C address of my LCD module?
A: Use an I2C scanner sketch to detect the address. Upload the sketch to your microcontroller, and the serial monitor will display the detected address.

Q: Can I use this LCD with a 3.3V microcontroller?
A: Most modules are designed for 5V operation. If using a 3.3V microcontroller, a logic level shifter is recommended for the SDA and SCL lines.

Q: How do I display text on the second line of the LCD?
A: Use the lcd.setCursor(0, 1) function to set the cursor to the first column of the second row, then use lcd.print() to display text.

Q: Can I control the backlight brightness?
A: Some modules allow backlight brightness control via a PWM pin. Otherwise, the backlight is either on or off.

By following this documentation, you can effectively integrate and troubleshoot the LCD 16x2 with I2C interface in your projects.
