Introduction

The QA018/QA019 ESP32 Max V3.0, manufactured by ACEBOTT, is a powerful microcontroller board based on the ESP32 chip. It integrates Wi-Fi and Bluetooth capabilities, making it an excellent choice for Internet of Things (IoT) applications. This board is designed for versatility, offering multiple GPIO pins, ADCs, and compatibility with a wide range of sensors and modules. Its compact design and robust features make it ideal for prototyping and developing smart devices, home automation systems, and other connected projects.

Explore Projects Built with QA018/QA019 ESP32 Max V3.0

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!

ESP32-Based Multi-Sensor Health Monitoring System with Bluetooth Connectivity

This circuit features an ESP32-WROOM-32UE microcontroller as the central processing unit, interfacing with a variety of sensors and modules. It includes a MAX30100 pulse oximeter and heart-rate sensor, an MLX90614 infrared thermometer, an HC-05 Bluetooth module for wireless communication, and a Neo 6M GPS module for location tracking. All components are powered by a common voltage supply and are connected to specific GPIO pins on the ESP32 for data exchange, with the sensors using I2C communication and the modules using UART.

Open Project in Cirkit Designer

ESP32-Based Health Monitoring System with Bluetooth and GPS

This circuit integrates an ESP32 microcontroller with various sensors and modules, including a MAX30100 pulse oximeter, an MLX90614 infrared thermometer, a Neo 6M GPS module, and an HC-05 Bluetooth module. The ESP32 collects data from these sensors and modules via I2C and UART interfaces, enabling wireless communication and GPS tracking capabilities.

Open Project in Cirkit Designer

ESP32-Based Pulse Oximeter with USB-C Charging

This circuit is a health monitoring system featuring an ESP32 microcontroller connected to a MAX30100 pulse oximetry and heart-rate sensor. Power management is handled by a 3.3V battery with a toggle switch for on/off control and a TP4056 charging module for battery charging. The ESP32 communicates with the MAX30100 sensor via I2C protocol.

Open Project in Cirkit Designer

ESP32-Based Health Monitoring System with MAX30102 and MAX30205 Sensors

This circuit features an ESP32 microcontroller as the central processing unit, interfacing with a MAX30102 pulse oximeter sensor and a MAX30205 temperature sensor via I2C communication (using GPIOs 21 and 22 for SDA and SCL, respectively). Additionally, it includes a Sim A7670c module for cellular connectivity (connected to GPIOs 16 and 17 for UART communication), and a 0.96" OLED display for data output, also on the I2C bus. All components share a common ground and are powered by a 5V supply connected to the ESP32.

Open Project in Cirkit Designer

Common Applications:

• IoT devices and smart home systems
• Wireless sensor networks
• Robotics and automation
• Wearable technology
• Prototyping and educational projects

---

Technical Specifications

Key Technical Details:

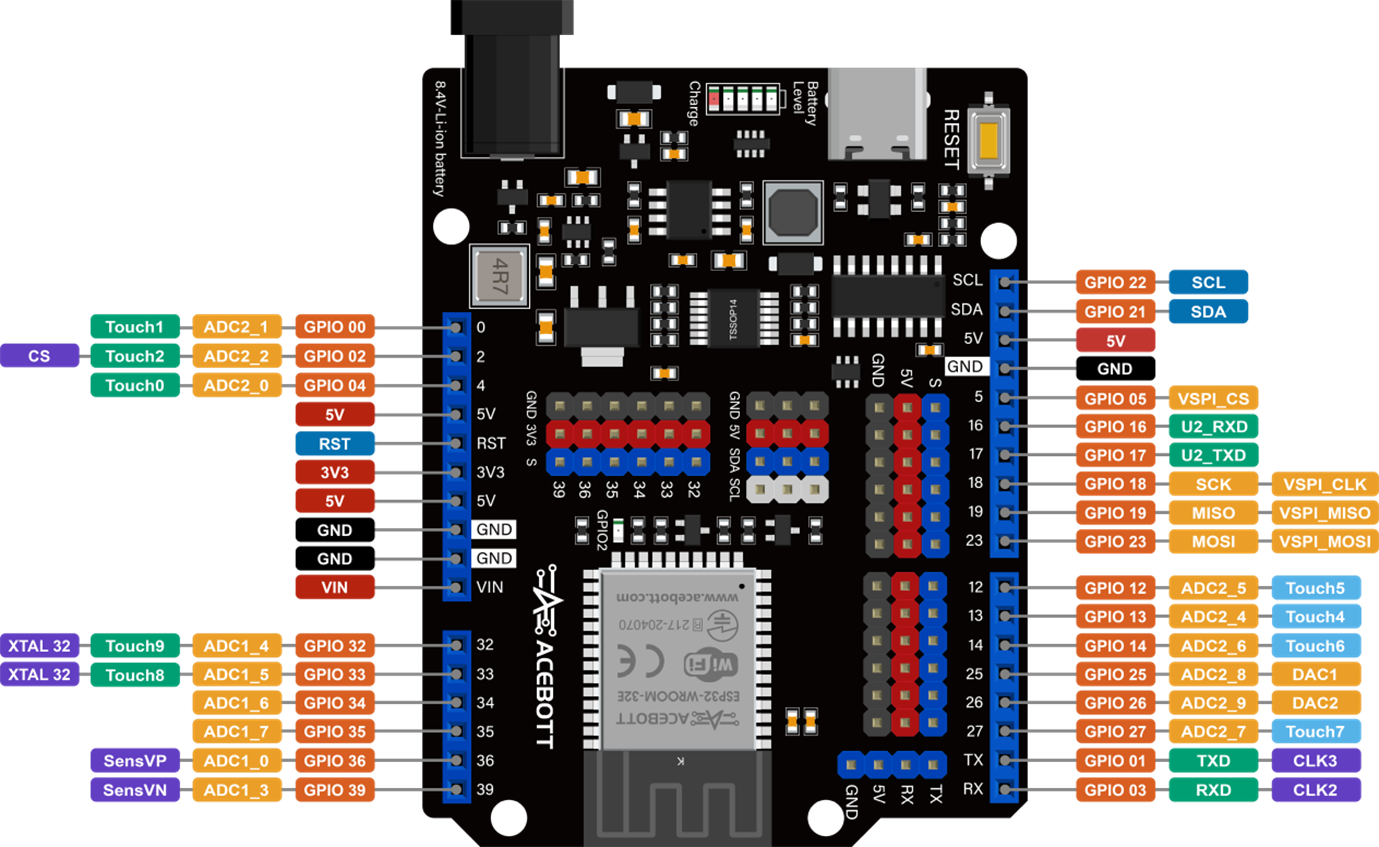

Pin Configuration and Descriptions:

---

Usage Instructions

How to Use the QA018/QA019 ESP32 Max V3.0 in a Circuit:

1. Powering the Board:

   • Connect the board to a computer or USB power source using a Micro-USB cable.
   • Alternatively, supply 5V to the VIN pin and connect GND to the ground of your power source.

2. Programming the Board:

   • Install the Arduino IDE and add the ESP32 board package via the Board Manager.
   • Select "ESP32 Dev Module" from the Tools > Board menu.
   • Connect the board to your computer and select the appropriate COM port.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other modules.
   • Ensure that the voltage levels of connected devices are compatible with the 3.3V logic of the ESP32.

4. Uploading Code:

   • Write your code in the Arduino IDE or use example sketches provided in the ESP32 library.
   • Click the upload button to flash the code onto the board.

Example Code for Blinking an LED:

// This example demonstrates how to blink an LED connected to GPIO2
// Ensure the LED's anode is connected to GPIO2 and cathode to GND.

#define LED_PIN 2  // Define the GPIO pin for the LED

void setup() {
  pinMode(LED_PIN, OUTPUT);  // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH);  // Turn the LED on
  delay(1000);                 // Wait for 1 second
  digitalWrite(LED_PIN, LOW);   // Turn the LED off
  delay(1000);                 // Wait for 1 second
}

Important Considerations:

• Voltage Levels: The GPIO pins operate at 3.3V. Avoid connecting 5V devices directly to the pins without a level shifter.
• Power Supply: Ensure a stable power supply to avoid unexpected resets or malfunctions.
• Boot Mode: If the board does not boot properly, check the EN and BOOT buttons. Press and hold the BOOT button while resetting the board to enter programming mode.

---

Troubleshooting and FAQs

Common Issues and Solutions:

1. The board is not detected by the computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial driver for the ESP32 (e.g., CP210x or CH340).

2. Code upload fails with a timeout error:

   • Check that the correct COM port is selected in the Arduino IDE.
   • Hold the BOOT button while uploading the code to force the board into programming mode.

3. Wi-Fi connection issues:

   • Verify the SSID and password in your code.
   • Ensure the router is within range and supports 2.4 GHz Wi-Fi (ESP32 does not support 5 GHz).

4. GPIO pin not working as expected:

   • Check if the pin is being used for another function (e.g., ADC, PWM).
   • Avoid using GPIO0, GPIO2, and GPIO15 for critical functions as they have special boot modes.

FAQs:

• Can I power the board with a battery?
  Yes, you can use a 3.7V LiPo battery connected to the VIN and GND pins. Ensure the battery voltage is regulated to 5V if necessary.

• What is the maximum current output of the 3.3V pin?
  The 3.3V pin can supply up to 500 mA, depending on the input power source.

• Does the board support OTA (Over-The-Air) updates?
  Yes, the ESP32 supports OTA updates. You can configure this feature in your code using the ESP32 library.

• Can I use the board with MicroPython?
  Yes, the QA018/QA019 ESP32 Max V3.0 is compatible with MicroPython. Flash the MicroPython firmware to get started.

---

This documentation provides a comprehensive guide to using the QA018/QA019 ESP32 Max V3.0. For further assistance, refer to the official ACEBOTT resources or community forums.
