How to Use 3.7V 2000mAh Rechargeable batt: Examples, Pinouts, and Specs

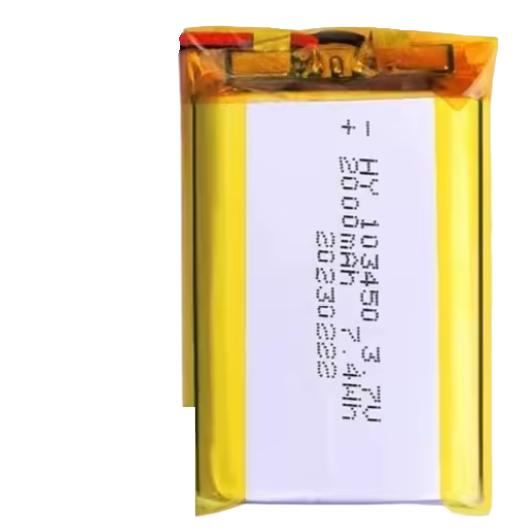

The 3.7V 2000mAh Rechargeable Battery (Manufacturer: YTBNA, Part ID: Lithium battery 103450) is a lithium-ion battery designed to provide reliable power for a wide range of portable electronic devices. With a nominal voltage of 3.7V and a capacity of 2000mAh, this battery is ideal for applications requiring compact, lightweight, and rechargeable power sources.

• Portable electronic devices (e.g., handheld gadgets, wearables)
• IoT devices and sensors
• RC toys and drones
• Backup power for small embedded systems
• DIY electronics projects

Below are the key technical details of the 3.7V 2000mAh Rechargeable Battery:

The battery typically has two terminals:

Note: Some batteries may include a built-in protection circuit module (PCM) to prevent overcharging, over-discharging, and short circuits.

1. Connection:
   • Connect the positive terminal of the battery to the positive input of your circuit.
   • Connect the negative terminal to the ground of your circuit.
2. Charging:
   • Use a compatible lithium-ion battery charger with a constant current/constant voltage (CC/CV) charging profile.
   • Ensure the charging voltage does not exceed 4.2V.
3. Discharging:
   • Avoid discharging the battery below 2.75V to prevent damage.
   • Use a load that does not exceed the maximum discharge current of 2A.
4. Protection:
   • If the battery does not include a built-in PCM, consider adding an external protection circuit to safeguard against overcharging, over-discharging, and short circuits.

• Safety: Do not puncture, crush, or expose the battery to fire or water.
• Storage: Store the battery in a cool, dry place at a charge level of ~50% for long-term storage.
• Temperature: Avoid charging or discharging the battery outside the specified temperature range.
• Wiring: Use appropriate gauge wires to handle the current without overheating.
• Arduino Integration: When using this battery with an Arduino UNO or similar microcontroller, ensure the voltage is regulated to 5V or 3.3V as required by the board.

To power an Arduino UNO with this battery, you can use a DC-DC step-up converter to boost the 3.7V to 5V. Below is an example circuit and code:

1. Connect the battery's positive terminal to the input of the step-up converter.
2. Connect the battery's negative terminal to the ground of the step-up converter.
3. Connect the output of the step-up converter to the Arduino UNO's VIN pin (5V input) and GND pin.

// Example code to blink an LED using an Arduino UNO powered by the 3.7V battery
// Ensure the battery voltage is stepped up to 5V before connecting to the Arduino

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

1. Battery Not Charging:

   • Cause: Charger not compatible or damaged.
   • Solution: Use a charger designed for lithium-ion batteries with a 4.2V output.

2. Battery Drains Quickly:

   • Cause: Excessive load or aging battery.
   • Solution: Reduce the load current or replace the battery if it has reached the end of its cycle life.

3. Battery Overheats During Use:

   • Cause: Overcurrent or short circuit.
   • Solution: Ensure the load does not exceed the maximum discharge current. Check for short circuits.

4. Arduino Not Powering On:

   • Cause: Insufficient voltage or incorrect wiring.
   • Solution: Use a step-up converter to boost the voltage to 5V. Verify connections.

Q1: Can I use this battery to directly power a 5V device?
A1: No, the battery provides a nominal voltage of 3.7V. Use a DC-DC step-up converter to boost the voltage to 5V.

Q2: How long will the battery last on a single charge?
A2: Battery life depends on the load current. For example, at a 500mA load, the battery can last approximately 4 hours (2000mAh ÷ 500mA).

Q3: Is it safe to leave the battery connected to the charger?
A3: Only if the charger has overcharge protection. Otherwise, disconnect the battery once fully charged.

Q4: Can I connect multiple batteries in series or parallel?
A4: Yes, but ensure proper balancing and protection circuits are used to avoid damage or safety hazards.
